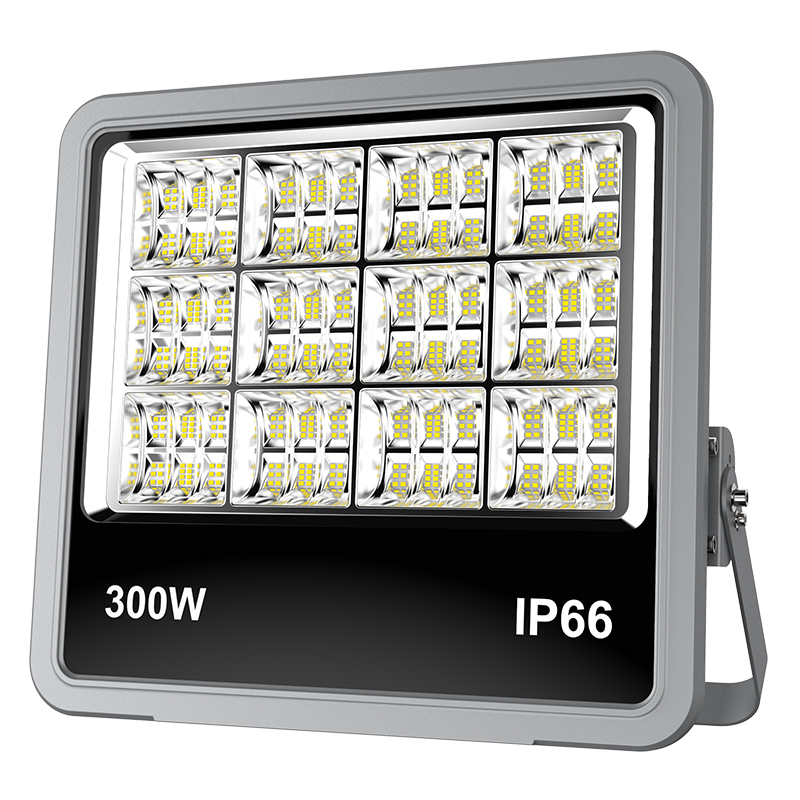

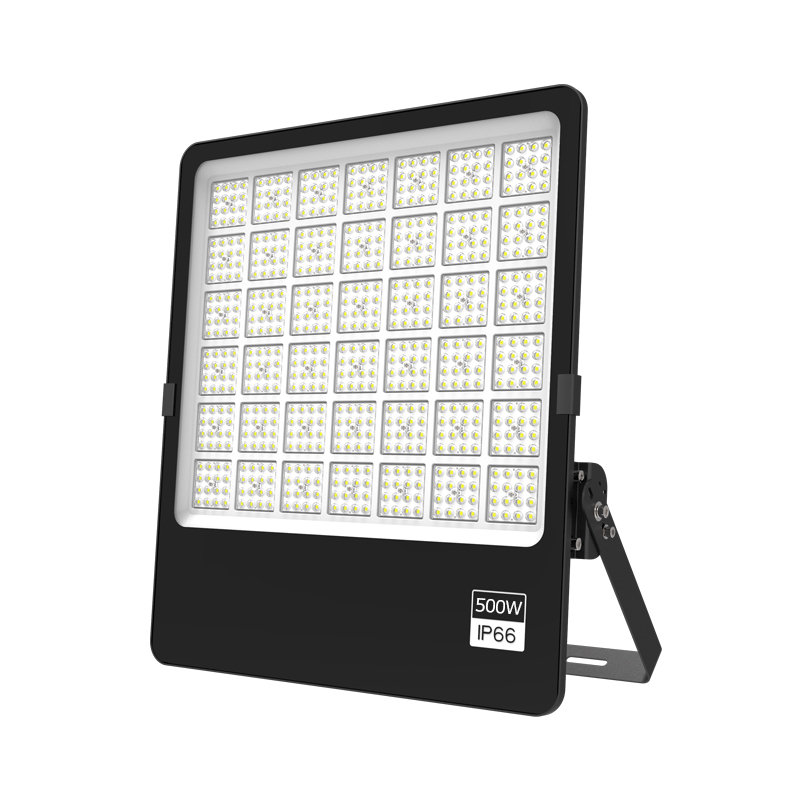

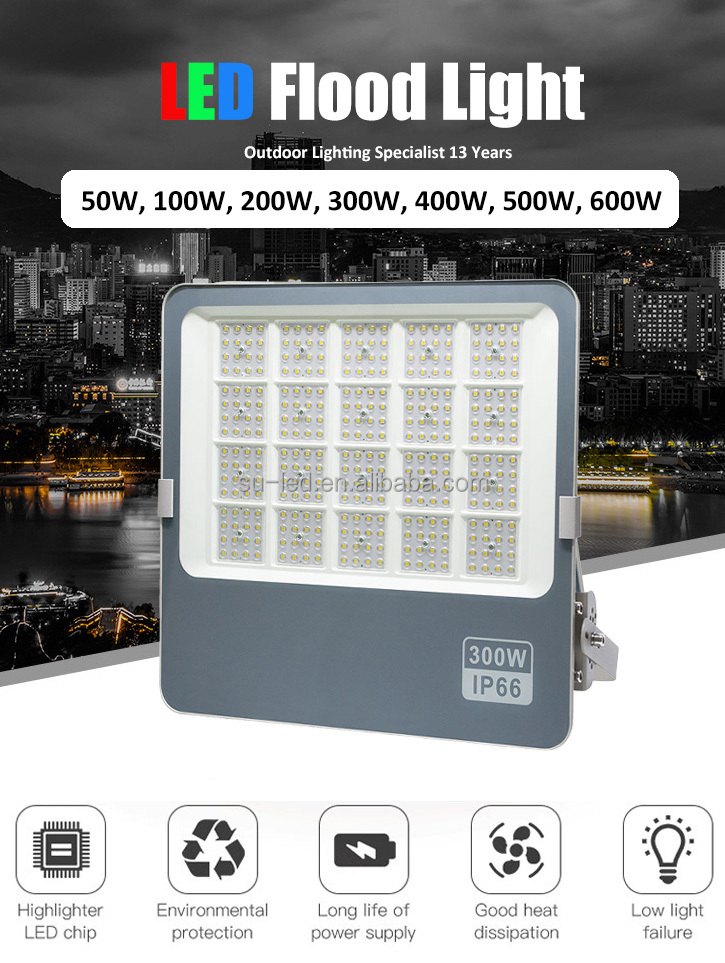

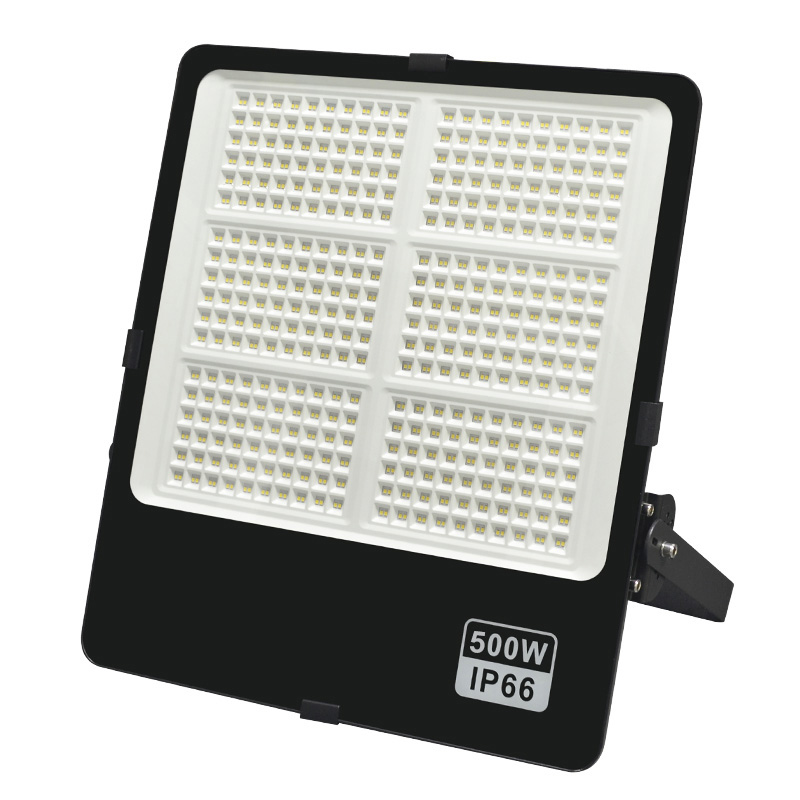

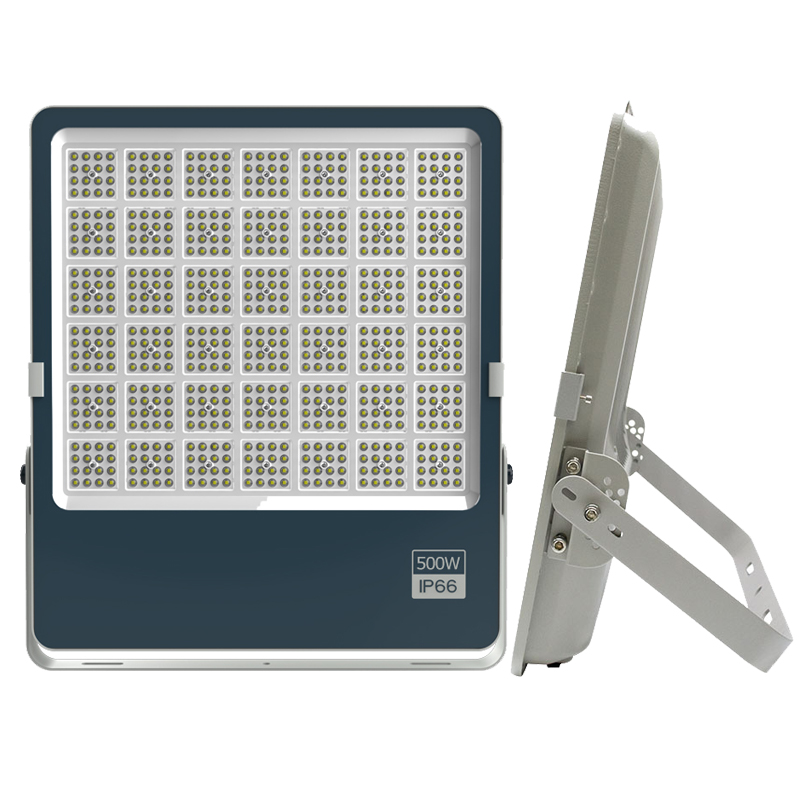

500W Floodlight Aluminum IP66 Outdoor Stadium Tennis Court Basketball Projector Led 50W 100W 200W 300W 400W Flood Light

Product Description

500W Powerful Floodlight Aluminum IP66 Outdoor Stadium Tennis Court Basketball Projector 50W 100W 200W 300W 400W Flood Light Led

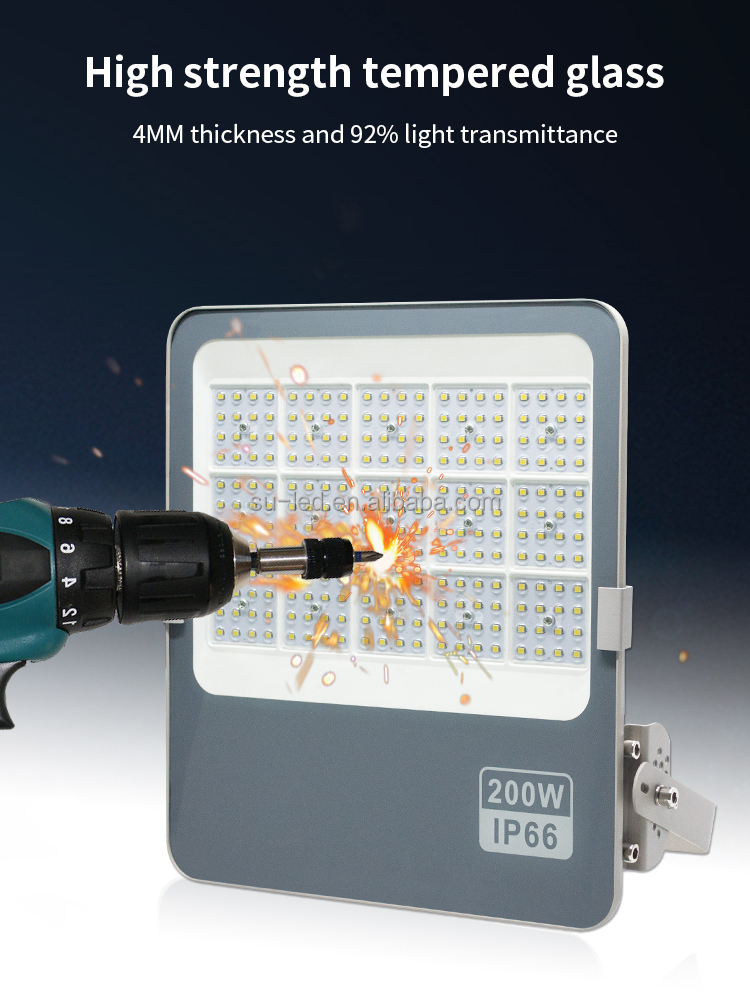

HIGH HARDNESS GLASS: Adopting 4mm high density and high hardness tempered glass, IK08 against shocking and 90% light transmission rate.
OPTIONAL BEAM ANGLES: Attaching optical lens for 30º, 60º, 90º and 120º inside, different angle with different lighting effect, applicable for different regions.

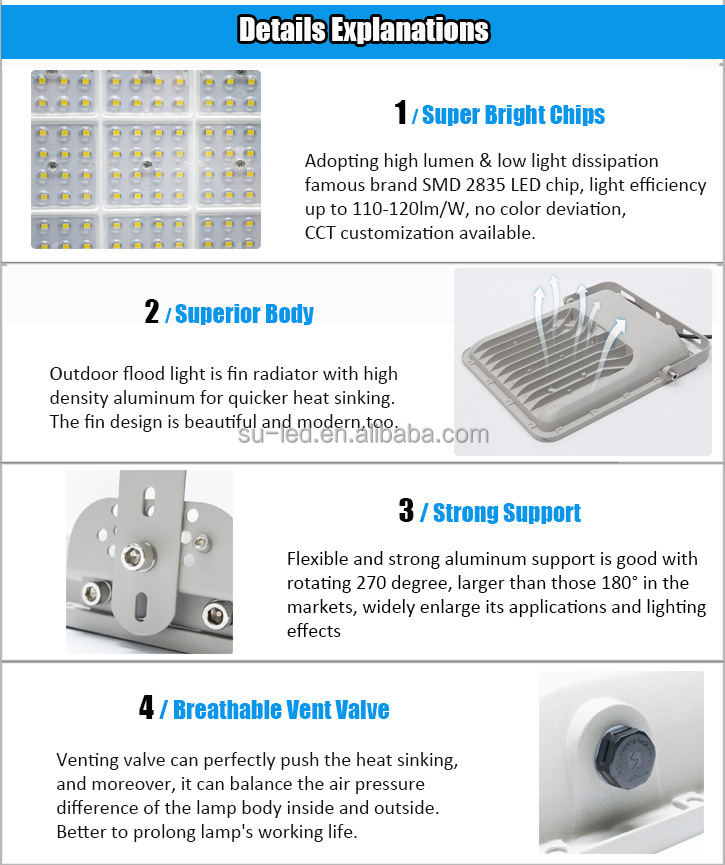

DIECAST ALUMINUM HEAT SINK: High density and thick ADC#12 aluminum with graphene coating for superior thermal conductivity and weather resistance. Heavy-weight design for efficient heat dissipation.
SMART FUNCTIONS: Support for 0-10 dimming, light control, and motion sensor options based on application requirements.
HIGH LUMEN LED CHIPS: SMD 2835 LEDs providing high luminous efficiency of 110-120lm/W with low light dissipation.
CONSTANT CURRENT DRIVER: Waterproof driver with power factor >0.9, ensuring stable performance and circuit protection.
Product Specifications

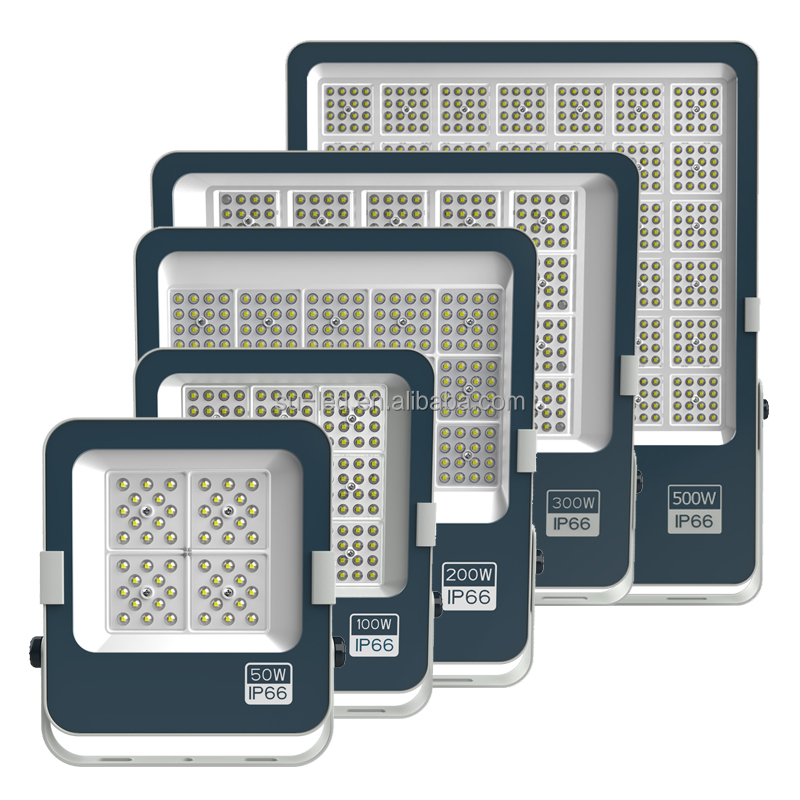

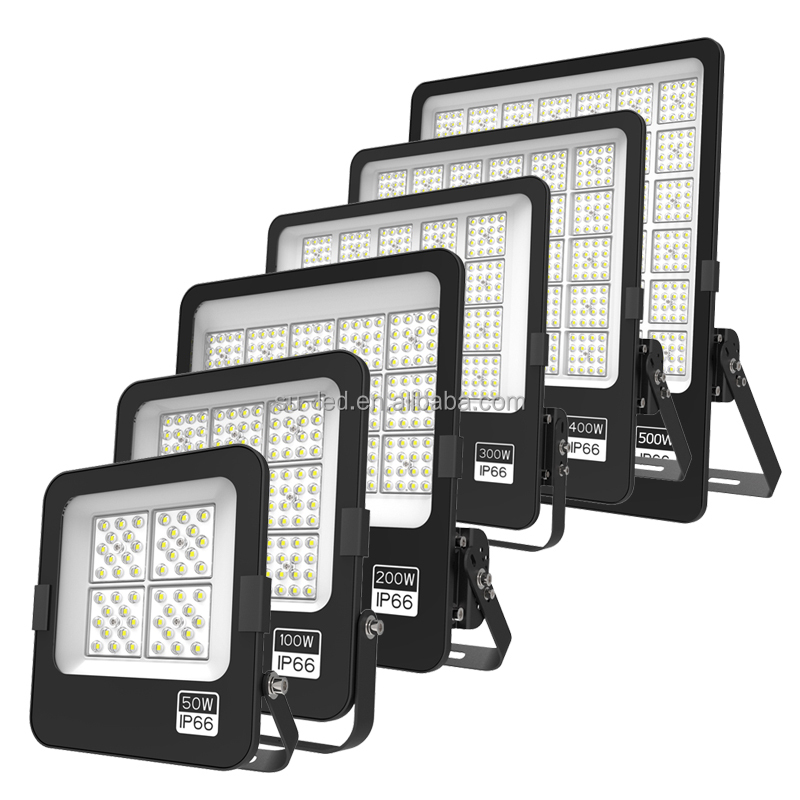

Model Voltage Rated Watts Size (mm) Light Efficiency
SU-TJ23-50WAC100-277V50 WattsL191*W216*H41110-120lm/W
SU-TJ23-100W100 WattsL240*W281*H44
SU-TJ23-200W200 WattsL325*W362*H50
SU-TJ23-300W300 WattsL424*W387*H52
SU-TJ23-400W400 WattsL445*W445*H55
SU-TJ23-500W500 WattsL560*W485*H60
Technical Parameters
Product NameOutdoor Led Flood Lights
UsageStreet, road, stadium, playground, sport fields
LED ChipHigh lumen SMD2835
Work VoltageAC85-265V, 50/60Hz
Color Temp3000K, 4500K, 5500K, 6500K (Customizable)
Body MaterialAluminum + Tempered Glass

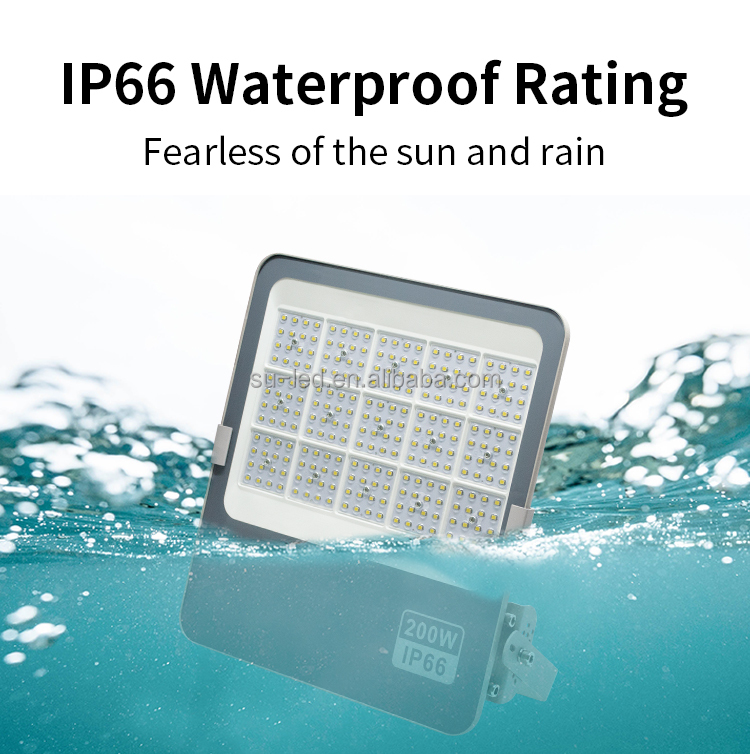

ProtectionIP66 / IK08 / Surge 4KV-6KV
Working Time50,000H
Warranty3 Years

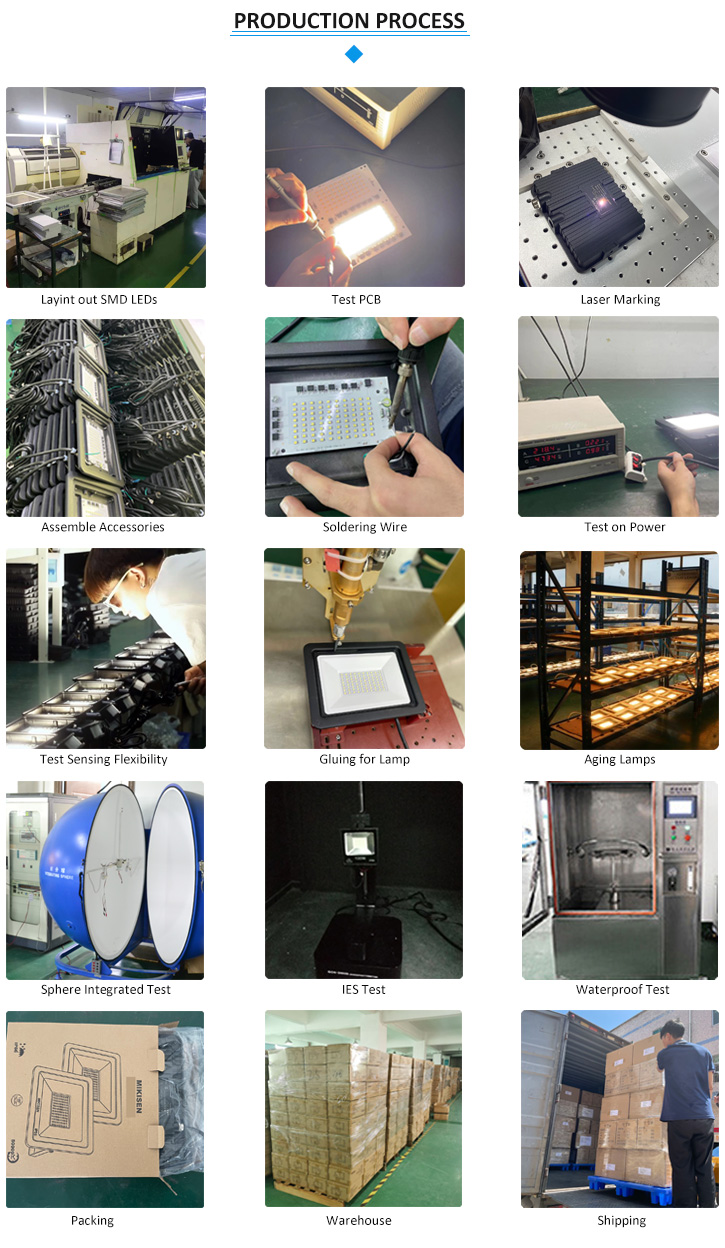

Packing & Manufacturing

Standard packaging includes color boxes or white boxes. We maintain strict quality control throughout the manufacturing process, from raw material testing to final aging tests.

Frequently Asked Questions
1. Can I have a sample for testing? Yes, samples are welcome for quality evaluation. Mixed orders are also accepted.
2. Do you provide OEM or ODM services? Yes, we provide professional OEM and ODM services, including logo printing and customized product specifications.
3. How do you control product quality? All raw materials are tested before stocking. During production, we check all functions, waterproof processing, and circuit integrity. All finished products undergo aging tests.

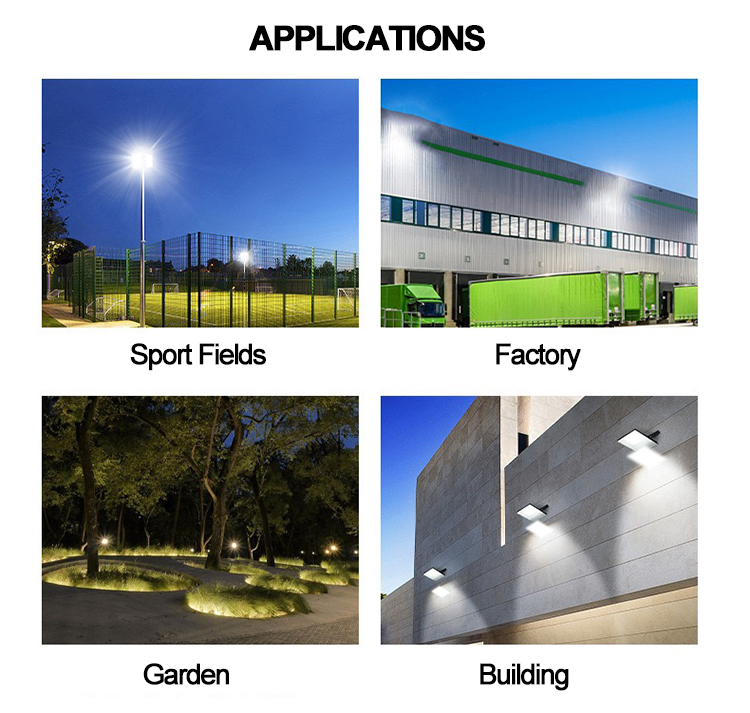

4. What are the main applications for these floodlights? These lights are ideal for streets, stadiums, tennis courts, warehouses, workshops, building outlines, and squares.
5. What is the warranty period? We offer a 3 to 5-year warranty. During this period, any product issues can be addressed with free replacements.
6. Is it possible to print my logo on the product? Yes, we offer laser marking services for logos based on minimum order quantities.
