Product Description

📋

Basic Information

Model NO.
SWL-BY200W
Material
Aluminum ADC 12 die-casting
Power
60W
IP Rating

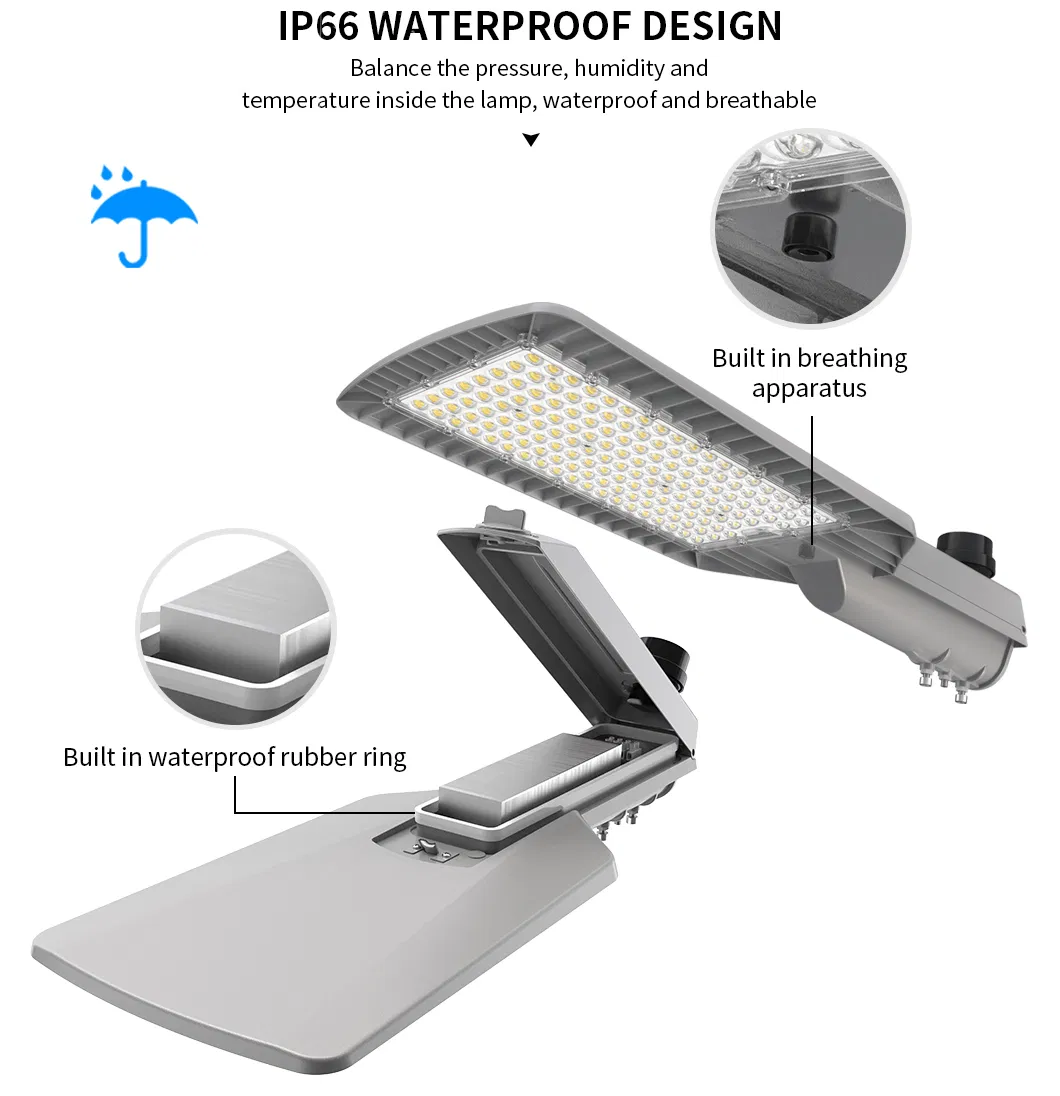

IP66
Input Voltage
100-277V
LED Chips
CREE/OSRAM/Nichia/Lumileds/Bridgelux
Driver Brand
Moso/Sosen/Meanwell/Inventronics
IK Rating
08
Warranty
3/5/7/10 Years
Operating Temp
-30℃ to +45℃

Product Features

Patented private mold, integrated Die-casting.

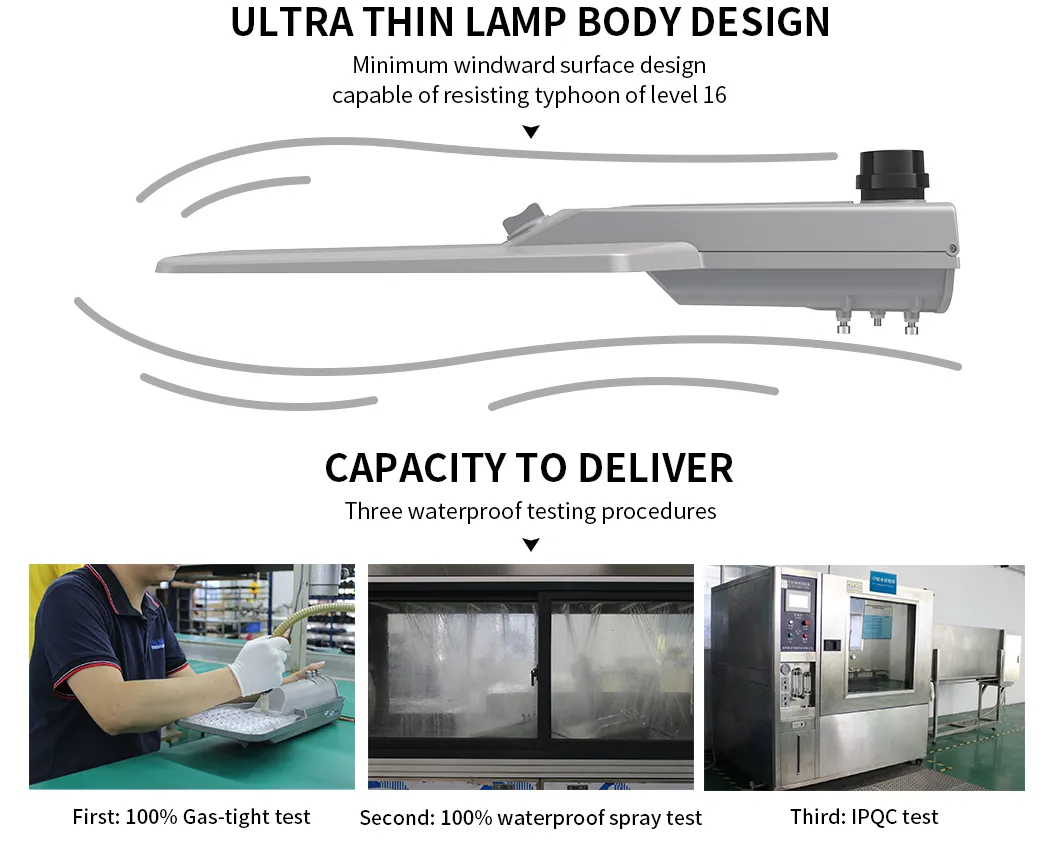

High-efficiency coating, 500 hours salt spray test passed.

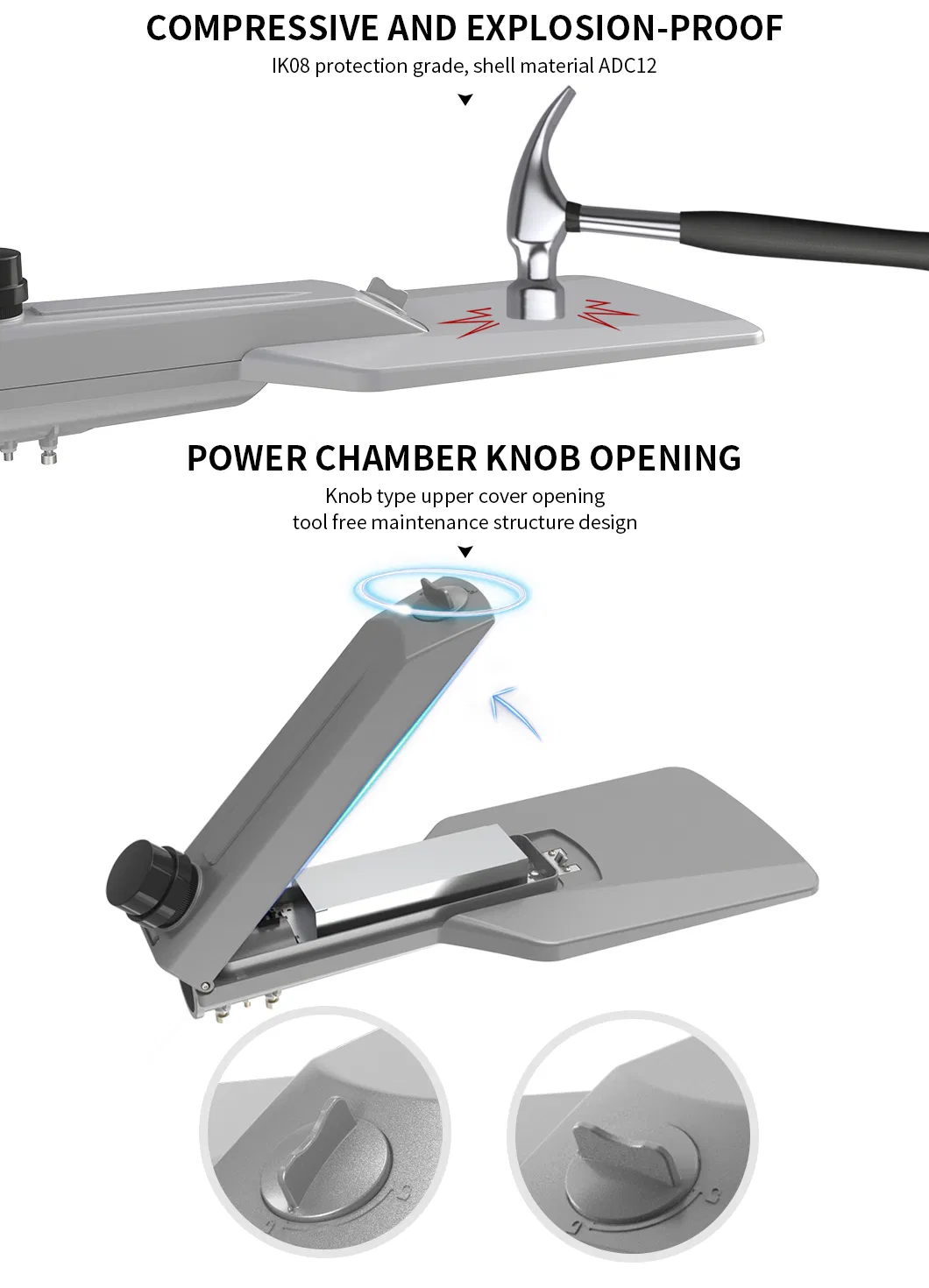

Tool-free open method for easy installation and maintenance.
Fast turn-off power protector for maximum safety.
High efficiency up to 170lm/w optional.
DALI, 0-10V / 1-10V control systems available.
Long life span of over 50,000 Hours.
⚙️

Technical Specifications

GENERAL INFORMATION ELECTRICAL INFORMATION

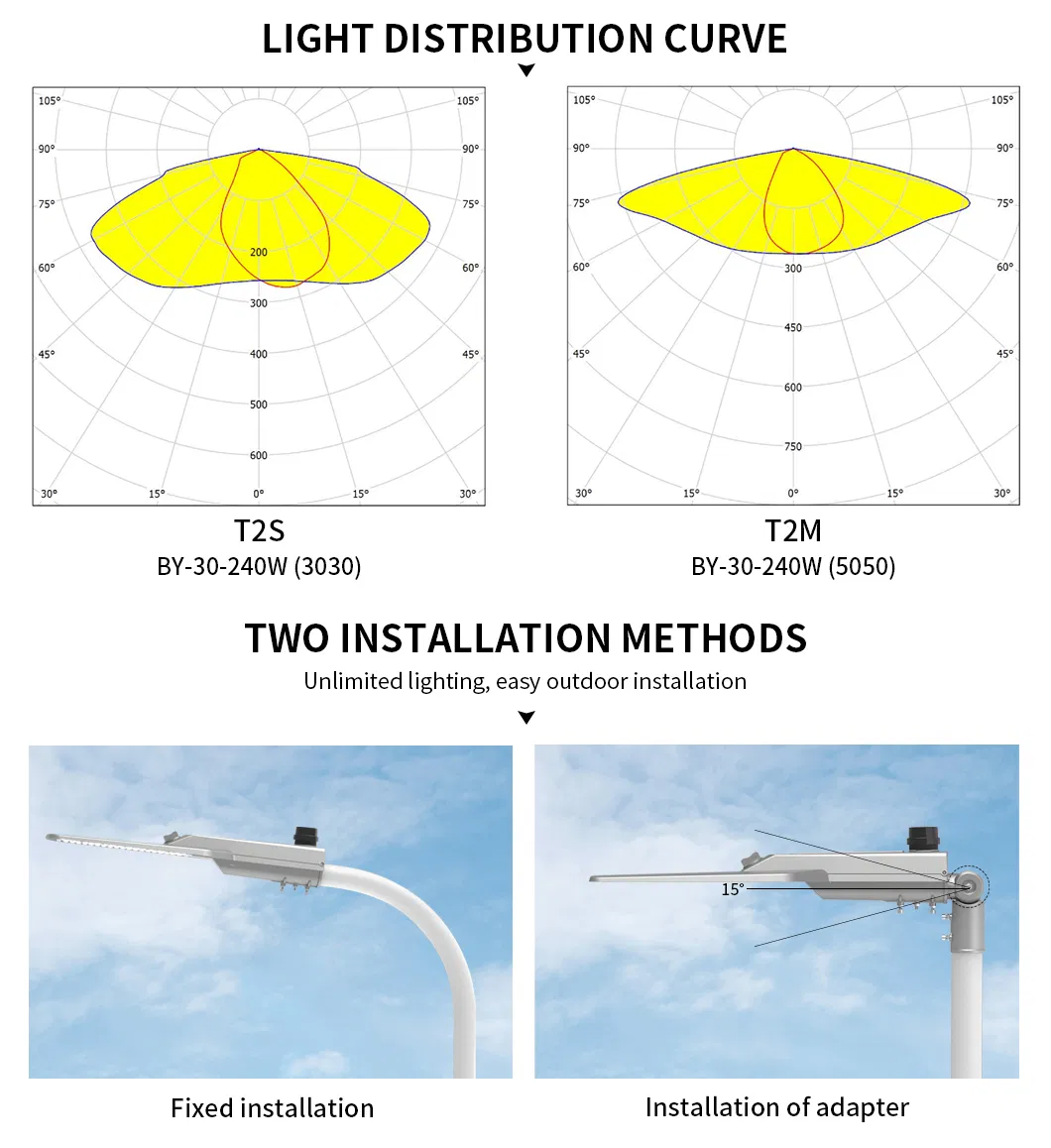

Mounting Module Post top or side entry (42-60Φ / 76-80Φ) Electrical Class Class I
Tilt Angles 0, ±5, ±10, ±15 Nominal Voltage 100V-277VAC 50/60Hz
Storage Temp -30ºC / +80ºC Power Factor ≥0.95 @ 230Vac

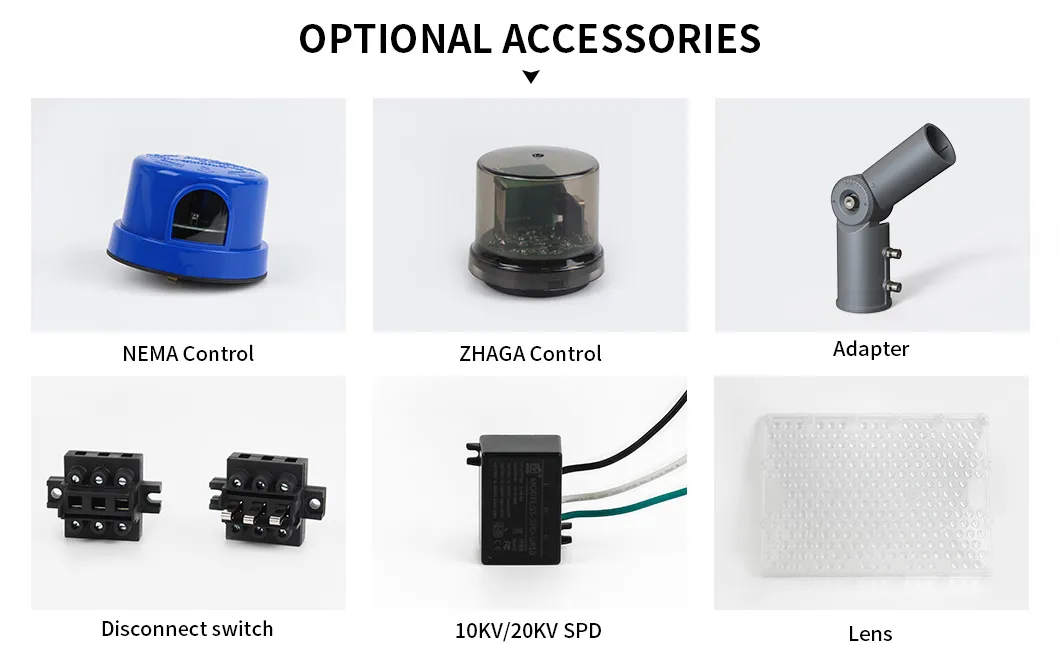

Surge Protection 6KV-10KV (Standard); Up to 20KV (Optional) Control System DALI, 1-10V, 0-10V, Microwave induction
HOUSING & MATERIALS OPTICAL INFORMATION
Housing ADC 12 die-casting Color Temperature 3000K / 4000K / 5000K / 5700K
Finish Powder spraying, corrosion resistance CRI CRI≥70, CRI≥80 (optional)
📊

Configuration Scheme

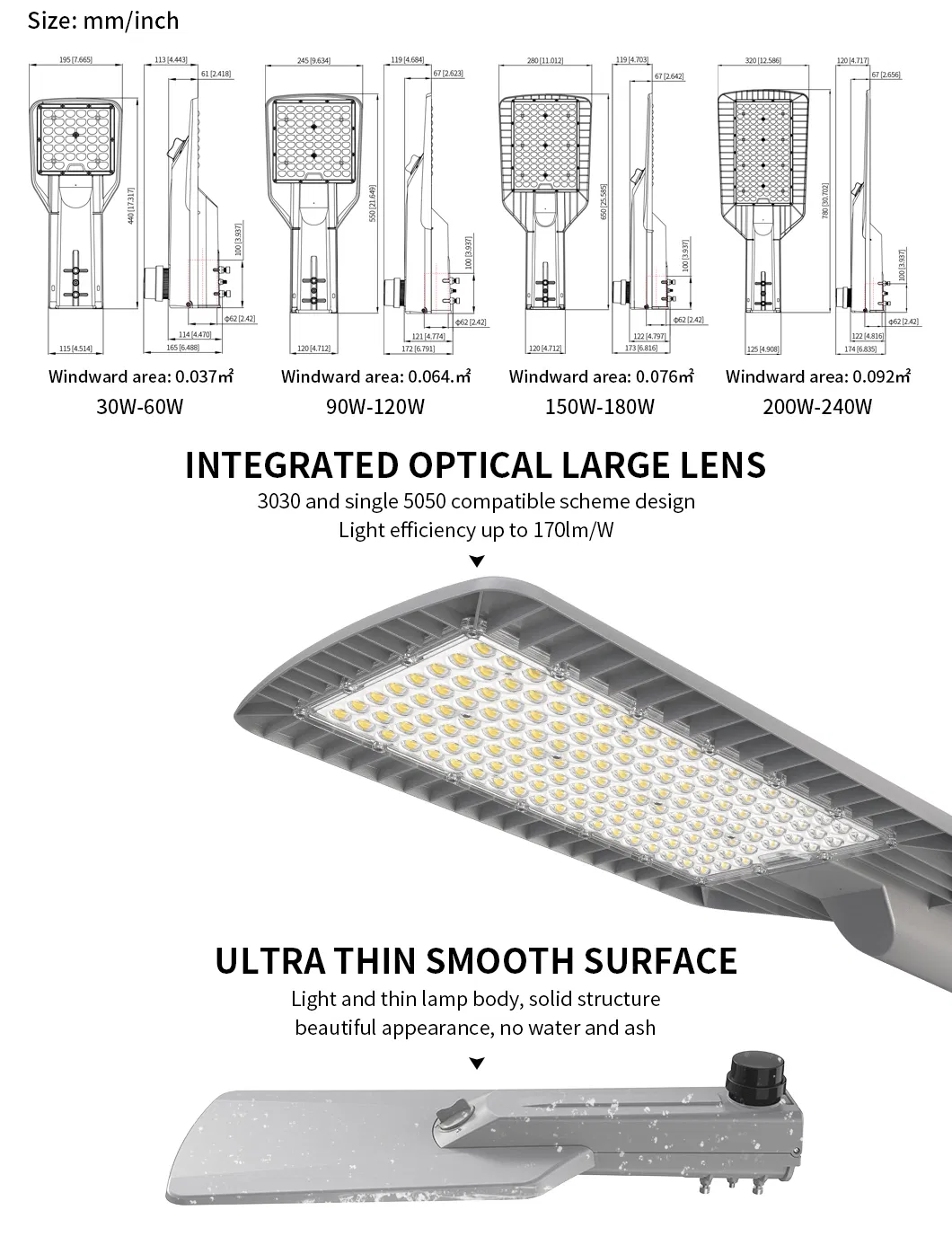

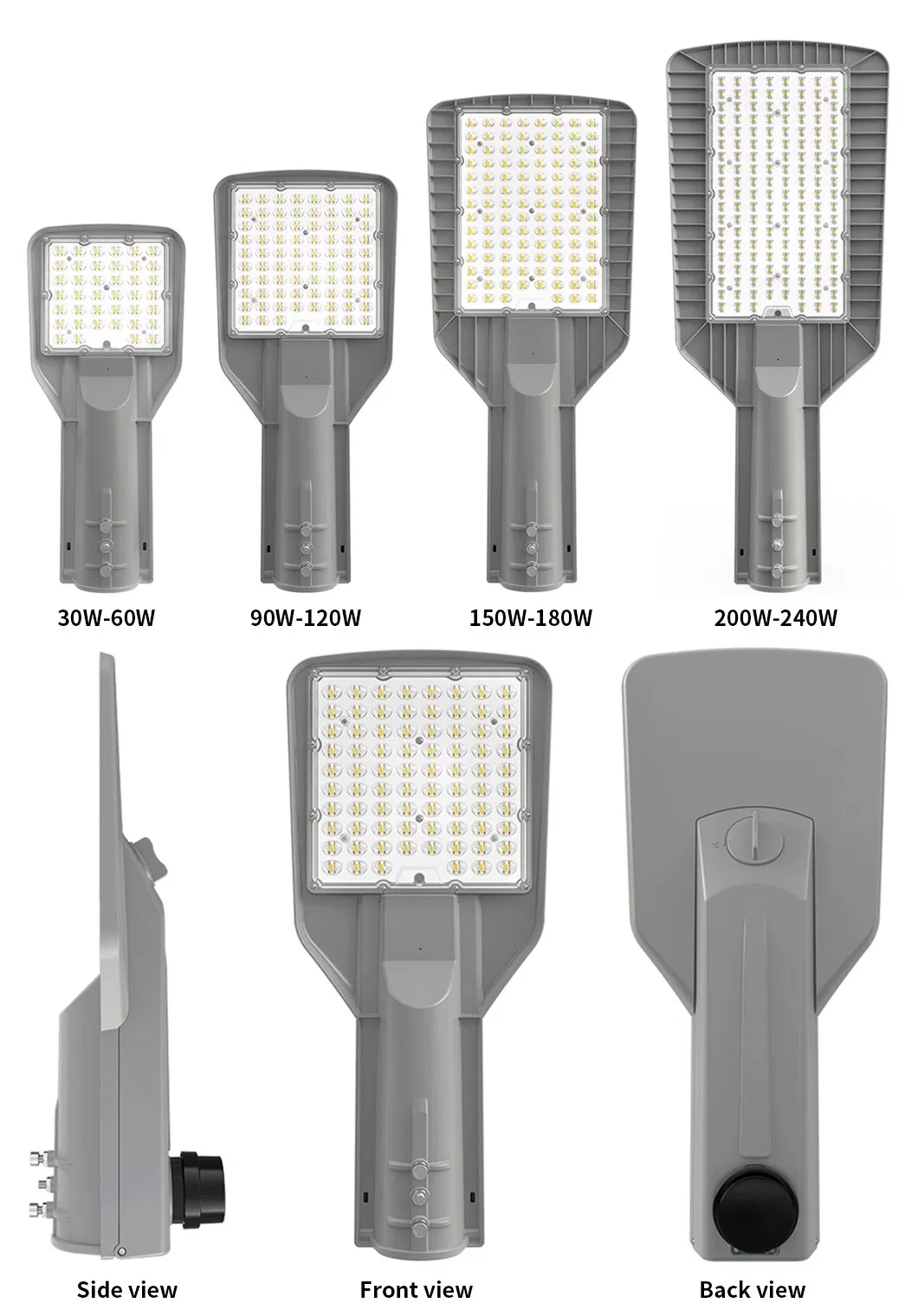

Model No. Power LED Brand Efficiency Luminous Flux Dimensions (mm)
SWL-BY30W30WCREE135-150lm/w4050-4500lm440*195*169
SWL-BY60W60WCREE135-150lm/w8100-9000lm440*195*169
SWL-BY100W100WCREE135-150lm/w13500-15000lm550*245*172
SWL-BY150W150WCREE135-150lm/w20250-22500lm650*280*173
SWL-BY200W200WCREE135-150lm/w27000lm780*320*174
SWL-BY240W240WCREE135-150lm/w32400lm780*320*174
🖼️

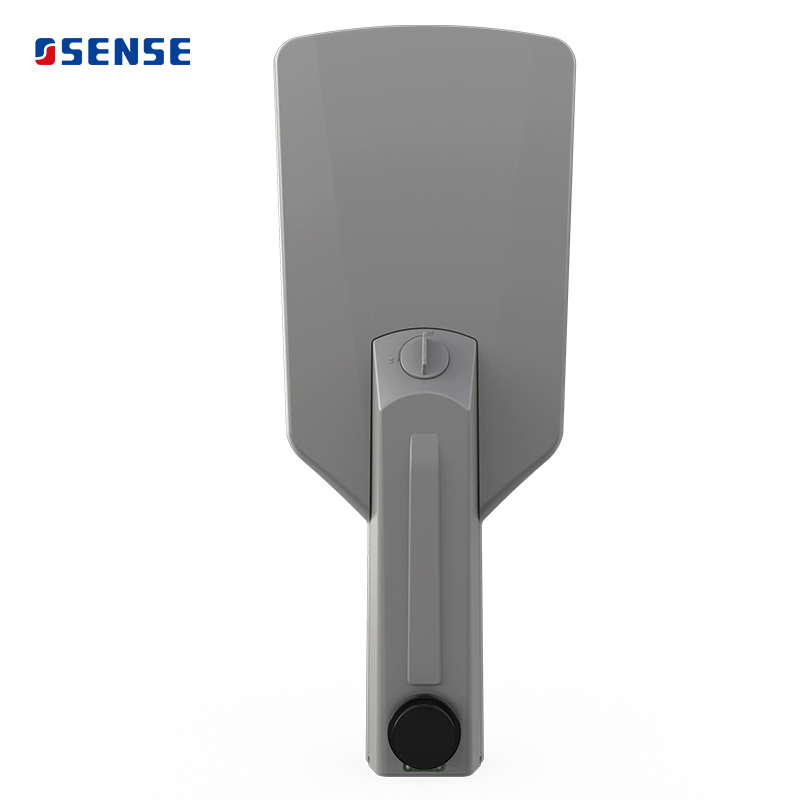

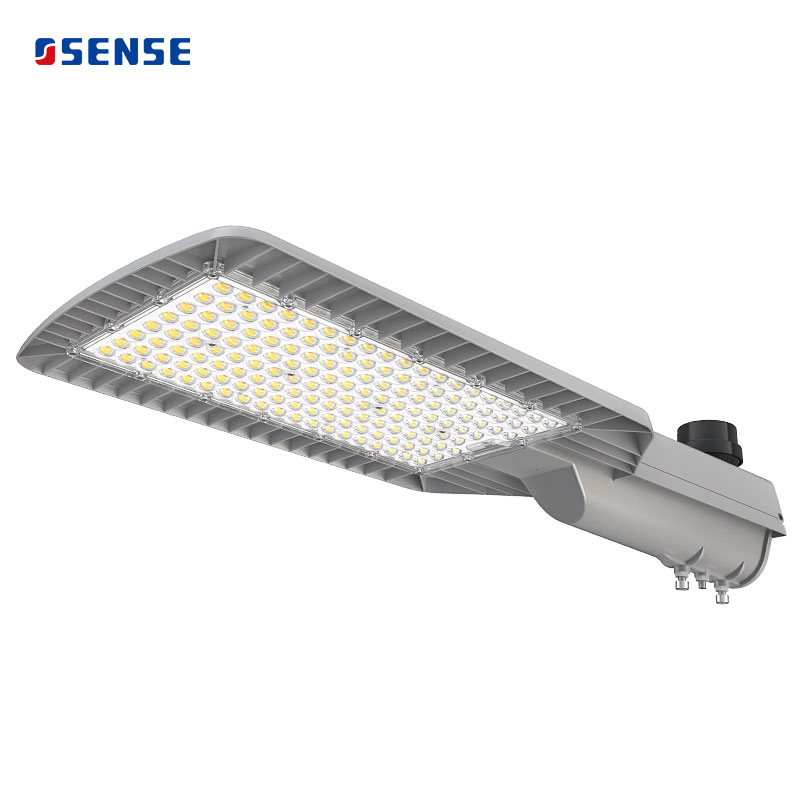

Product Gallery

Frequently Asked Questions

Are you a manufacturer?

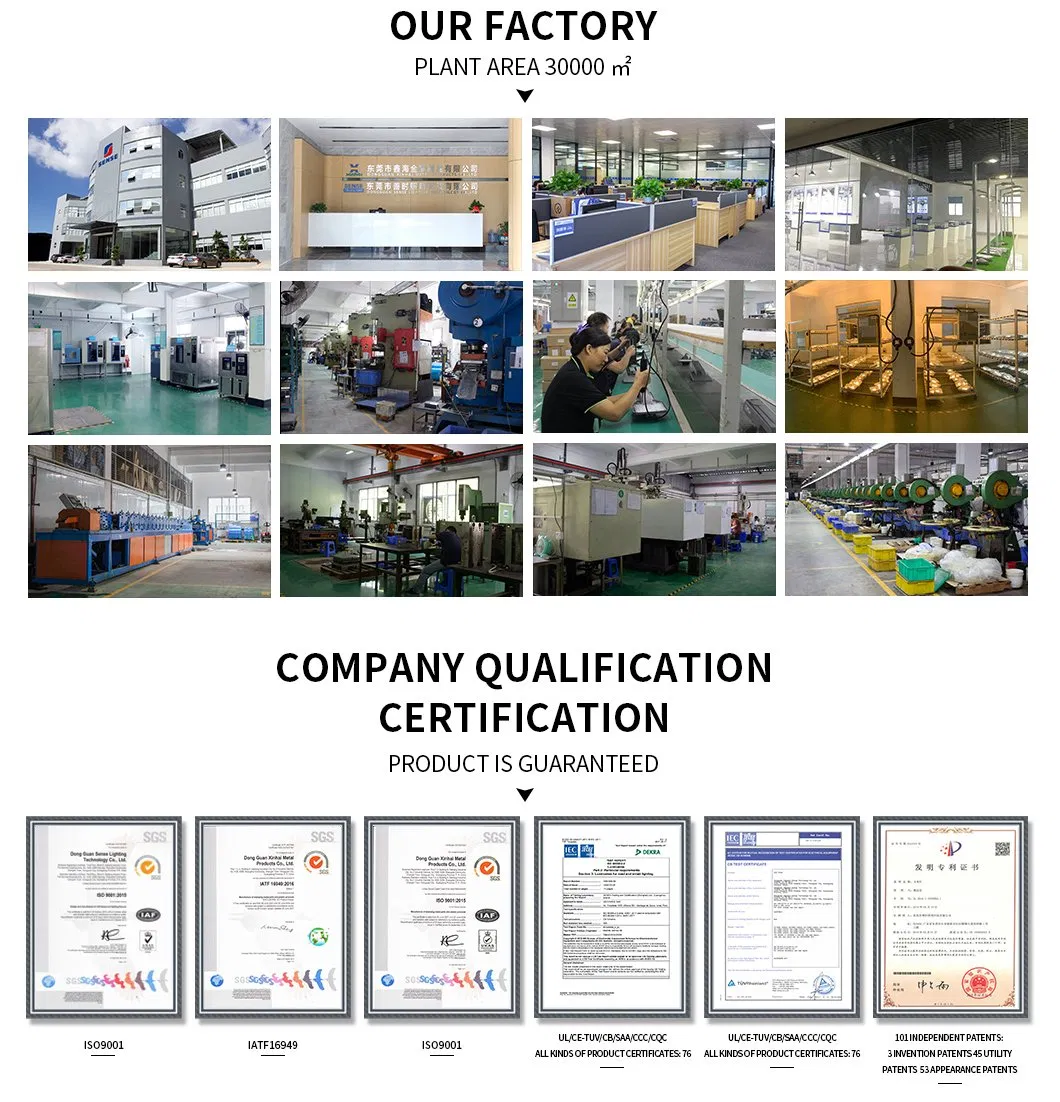

Yes, we operate our own factory with over 20 years of R&D and manufacturing experience, adhering to ISO quality management standards since 2003.
What certifications do your products have?
Our products are TUV/CB/CE/EMC/SAA/CCC/RoHS approved. We also provide reports for IP66, IK10, LM79, LM80, and IES testing.
Do you provide OEM/ODM services?
Yes, we fully support OEM and ODM services, including custom LOGO placement on products and specialized packaging for different application requirements.
What is the standard warranty for these street lights?
We offer a 5-7 year warranty depending on the specific project requirements and customer requests.
What is the lead time for orders?
Sample orders typically take 3-7 days, while mass production lead time is 10-20 days based on the total order quantity.
How do you handle quality control and faulty products?
Our products are produced under a strict quality control system with a defect rate below 0.1%. For faulty units within the warranty period, we provide replacements or discussed repair solutions.
