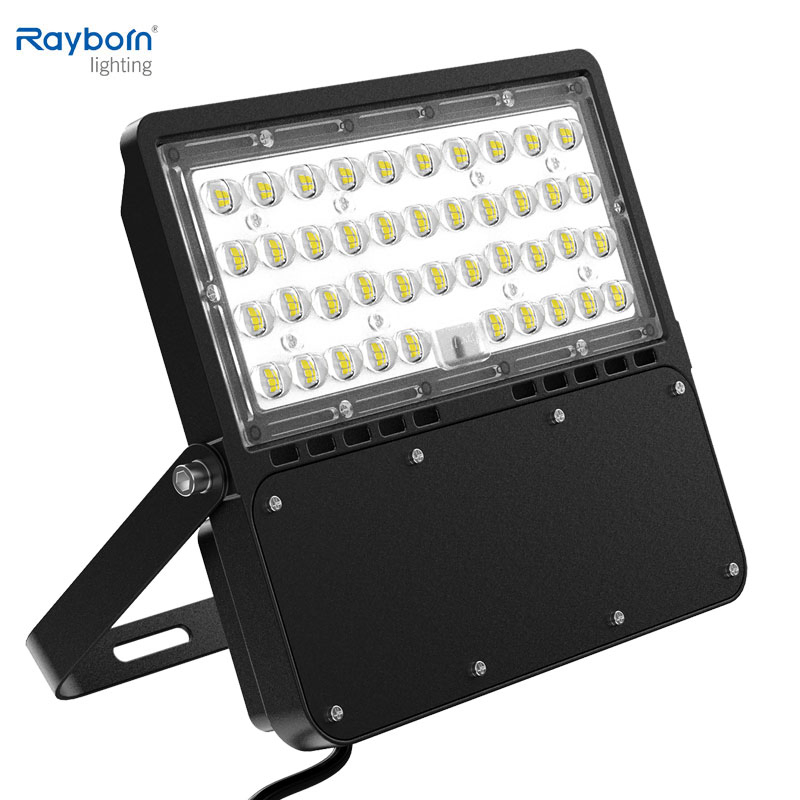

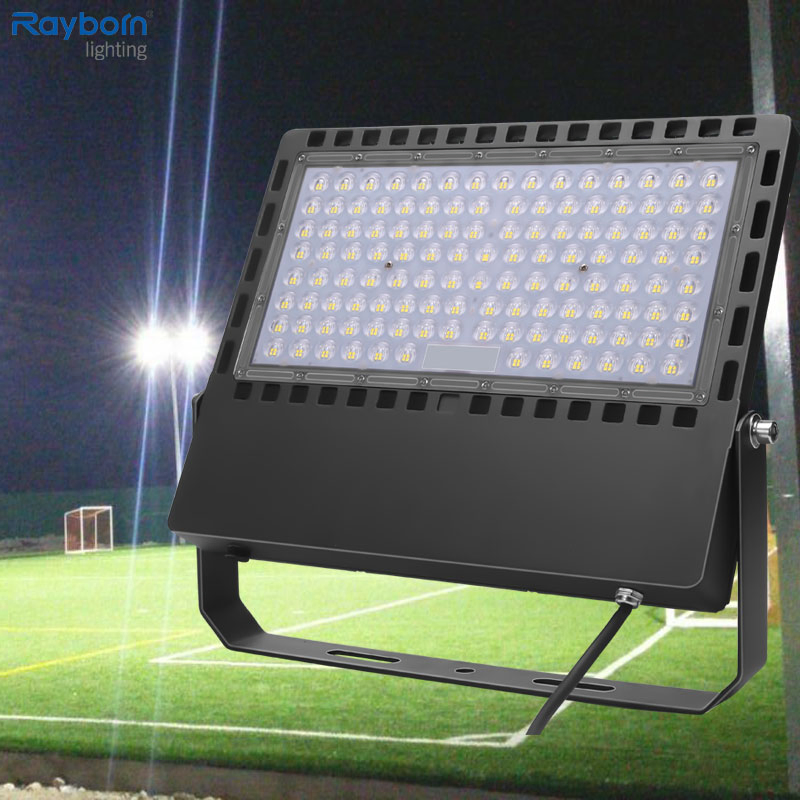

Outdoor Stadium Sports Football Field Basketball Area Tennis Court Tunnel Spotlight LED Flood Light with 100W 150W 200W 250W 300W 400W 500W 600W

1 / 5

Outdoor Stadium Sports Football Field Basketball Area Tennis Court Tunnel Spotlight LED Flood Light with 100W 150W 200W 250W 300W 400W 500W 600W

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview
Product Parameters
Detailed Photos
Product Description
Production & Testing
Packaging & Shipping
Applications

Overview & Basic Info

Basic Specifications

Model NO. RB-FLL-200WHX

Power Options 100W / 150W / 200W / 300W / 400W / 500W / 600W

Projection Distance 10 - 100 meters

IP Rating IP66 Waterproof

CRI Ra>80 / Ra>90

Operating Voltage 90-305V / 347V / 480V (50/60Hz)

Input Voltage 48-60V/DC

LED Chips Brand Osram

Performance & Mechanics

Luminous Efficiency 150 lm/W

Dimmable Options 0-10V / 1-10V / PWM / Dali Dimmable / DMX

Beam Angle 15° / 20° / 30° / 40° / 60° / 90° / 150x65°

Lifespan 70,000 Hours

CCT Range 3000K / 4000K / 5000K / 5700K / 6500K

Warranty 5 Years

Housing Color Black, Grey, White

Certifications CCC, CE, EMC, ETL, LVD, RoHS, SAA, VDE

Applications

Park, Square, Factory, Garden, Sports Stadium, Football Field, Tennis Court, Tunnel Spotlight

Packaging & Delivery

Package Size 35.00cm * 30.00cm * 25.00cm

Package Gross Weight 5.000kg

Product Description

Outdoor Hot Sales LED Flood Lighting
Designed for Stadiums, Sports Arenas, Football Fields, Basketball Areas, Tennis Courts, and Tunnel Spotlights.
Power configurations available from 100W up to 1000W.

Primary Competitive Advantages of Our LED Flood Lights

Premium MeanWell or Inventronics drivers coupled with high-efficiency 3030/5050 SMD LED chips.
Advanced finned heat sink radiators for exceptional thermal dissipation.
Flexible mounting positions, adjustable within a 180° range.
IP66 waterproof design to eliminate internal misting and prevent condensation.
Precision optics with beam angle options: 8° / 20° / 40° / 60° / 90° / 120° / 140*100°.
Wide scale power availability from 100W up to 1500W, backed by a 5-year warranty.

Detailed Specifications

Specifications: 100W - 240W

Model Parameter	RB-FLL-100WHX	RB-FLL-150WHX	RB-FLL-200WHX	RB-FLL-240WHX
Power	100W	150W	200W	240W
Input Volt	100-240V / 100-277V AC 50/60Hz
Power Factor / Eff.	PF > 0.96 \| Efficiency > 92%
LED Driver	Sosen / Meanwell / Customer Specified
Lumen Output	150 LM/W
CRI (Ra)	Ra > 80 / Ra > 90
Materials	Die-casting Aluminum Body + Tempered Glass + PC Lens + 304 Stainless Steel Screws
Protection Index	IP66 / IK09
Dimensions	29827547mm	29827547mm	40030547mm	40030547mm
Working Temp.	-35ºC ~ 65ºC

Specifications: 300W - 600W

Model Parameter	RB-FLL-300WHX	RB-FLL-400WHX	RB-FLL-600WHX	RB-FLL-600WHX-F
Power	300W	400W	600W	600W
Input Volt	100-240V / 100-277V AC 50/60Hz
Power Factor / Eff.	PF > 0.96 \| Efficiency > 92%
LED Driver	Sosen / Meanwell / Customer Specified
Lumen Output	150 LM/W
CRI (Ra)	Ra > 80
Protection Index	IP66 / IK08 - IK09
Dimensions	40030547mm	40046568mm	49044884mm	59443885mm
Working Temp.	-35ºC ~ 65ºC

Detailed Product Images

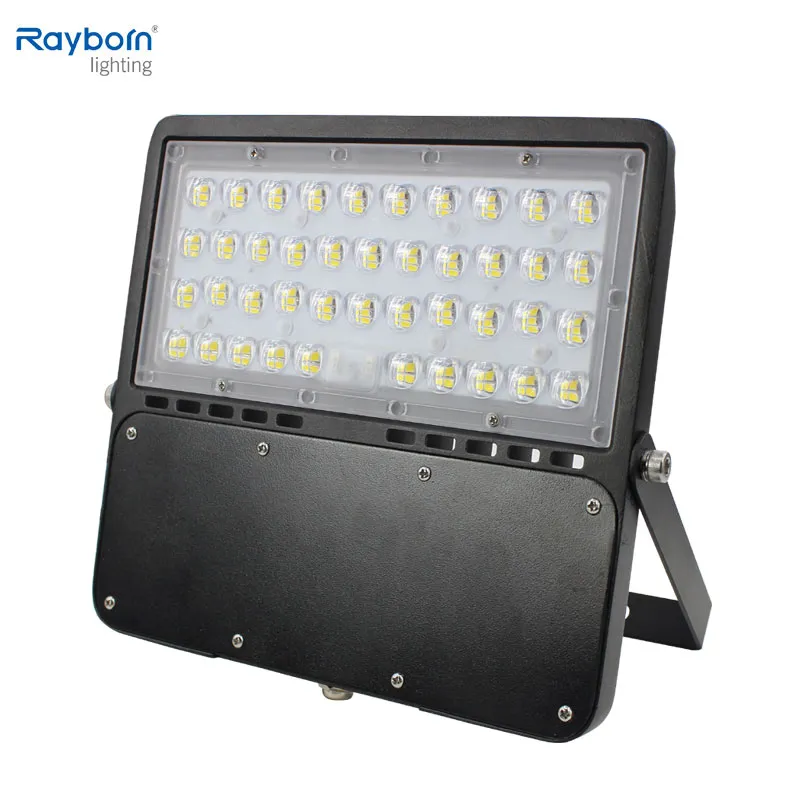

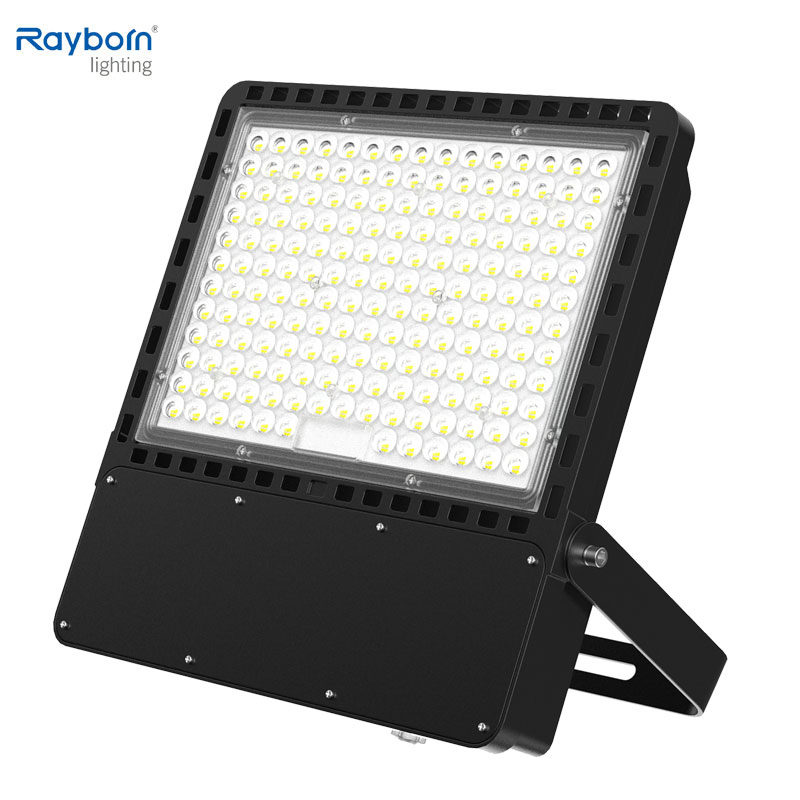

Outdoor Stadium Sports Area LED Flood Light

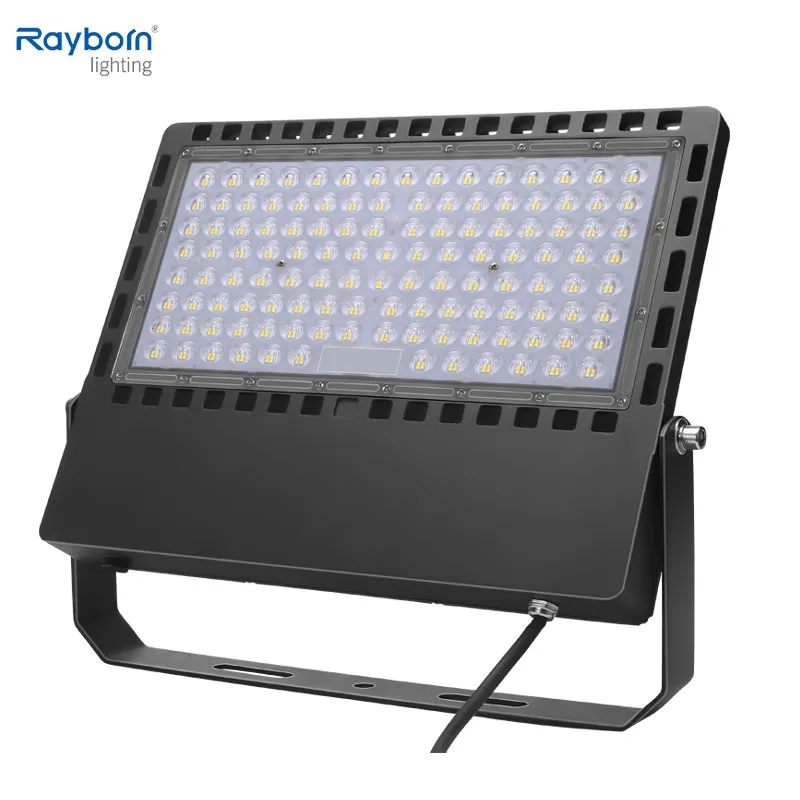

Stadium Tunnel Spotlight LED Flood Light Detail view

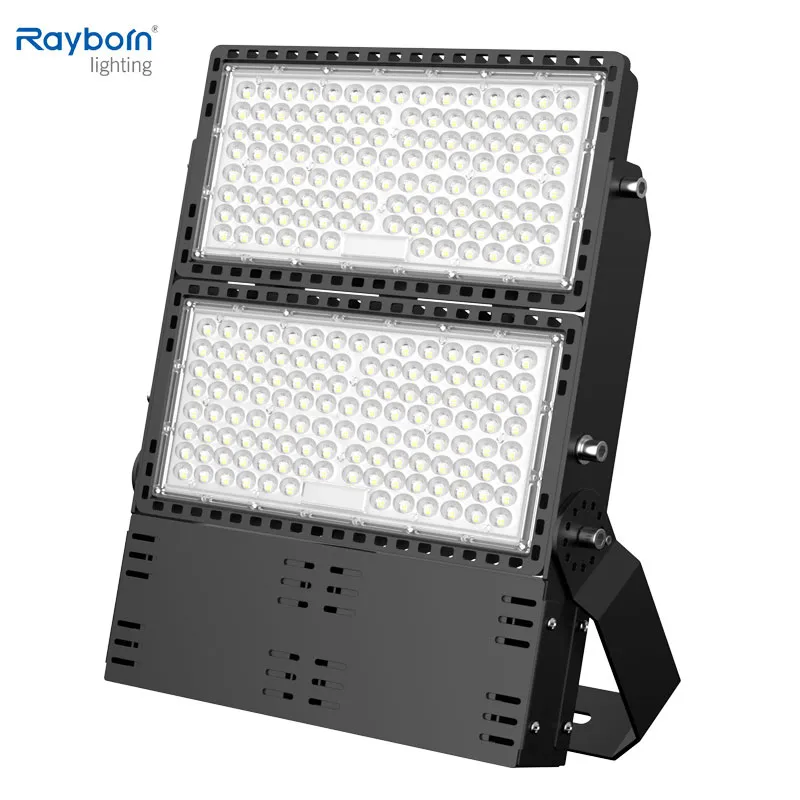

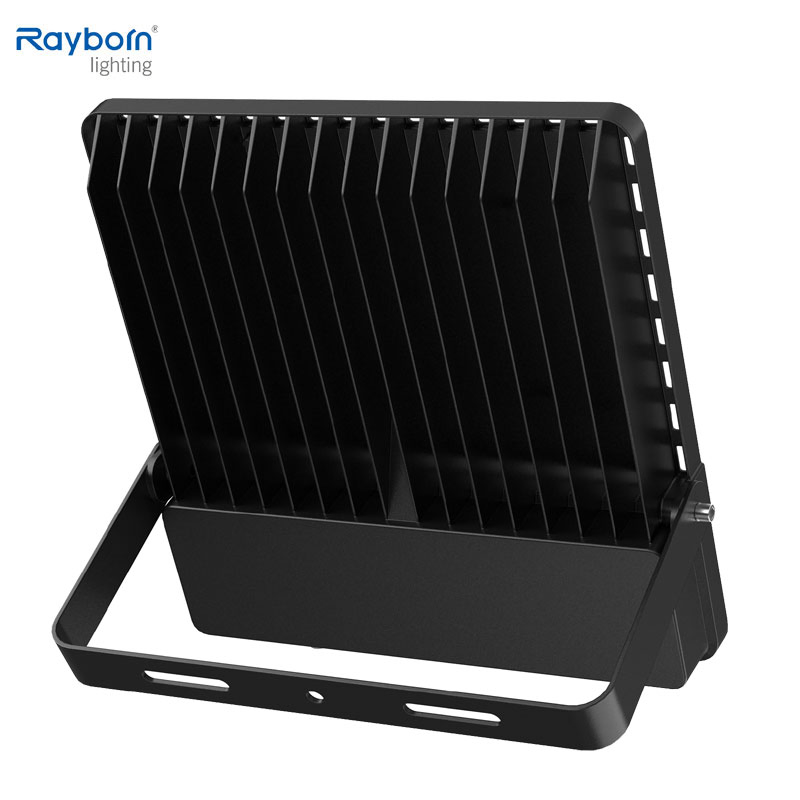

Waterproof LED Flood Light rear structure

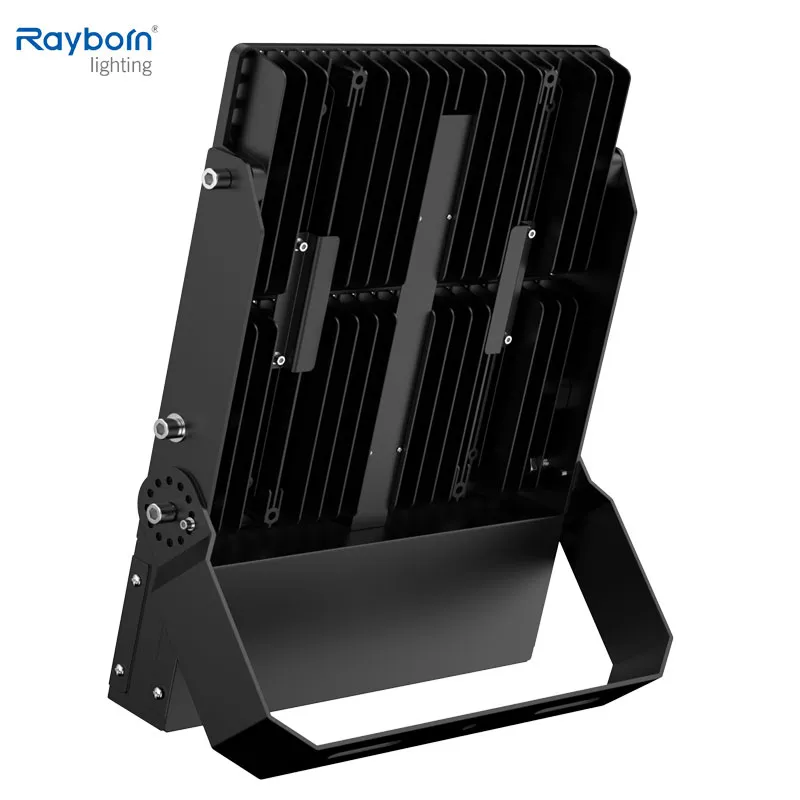

Adjustable angle bracket LED Arena Light

Key Product Features

Optimal Efficiency: Overall fixture luminous efficiency reaches up to 170lm/W.
Flexible Control Options: Supports standard, 0-10V, PWM, DALI, and Photocell sensors.
Superior Color Rendering: Optional high index CRI > 90 and TLCI > 90 for professional arena broadcasts.
Rugged Weatherability: IP66 & IK10 ratings with certified resistance against winds up to level 17.

Smart Heat Management: Integrated high-purity cold-forged aluminum fin design ensures rapid thermal dissipation.
Anti-Glare Shield: Built-in anti-overflow hood reduces light spill and limits environmental light pollution.
High-Level Surge Protection: Maximum surge protection voltage (T3) Vmax up to 20KV.

Production & Rigorous Quality Control

Every LED flood light undergoes over 12 hours of strict aging and quality validation tests prior to dispatch. 100% of finished products are tested for illumination functionality, electrical wattage accuracy, high-voltage resilience, waterproof seal integrity, and secure grounding. Our target defect rate is strictly maintained below 0.1%.

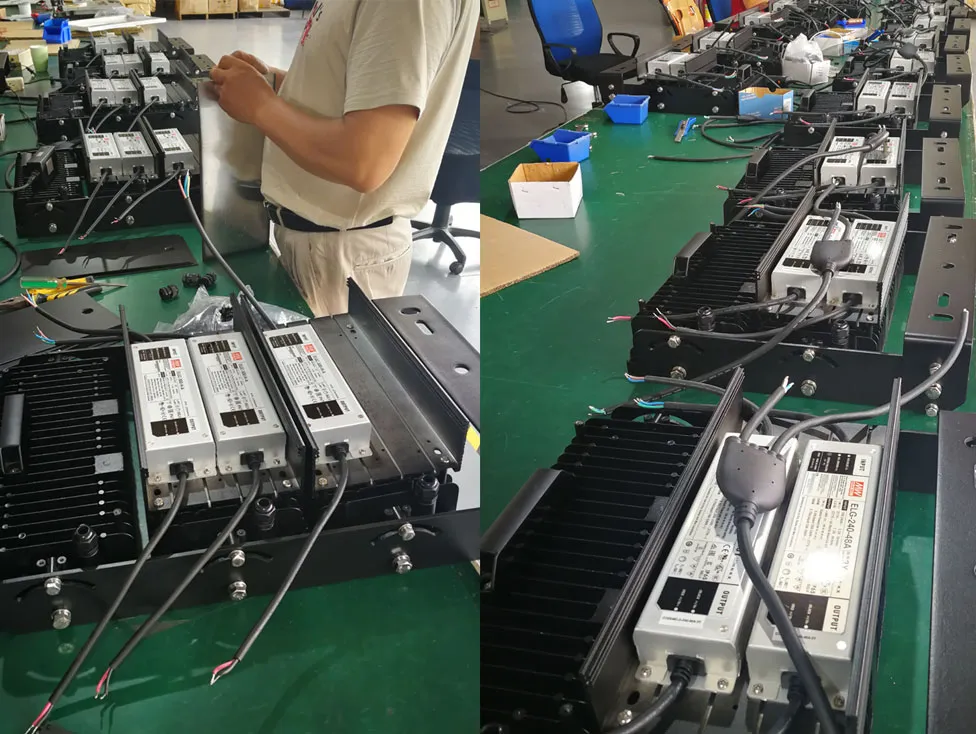

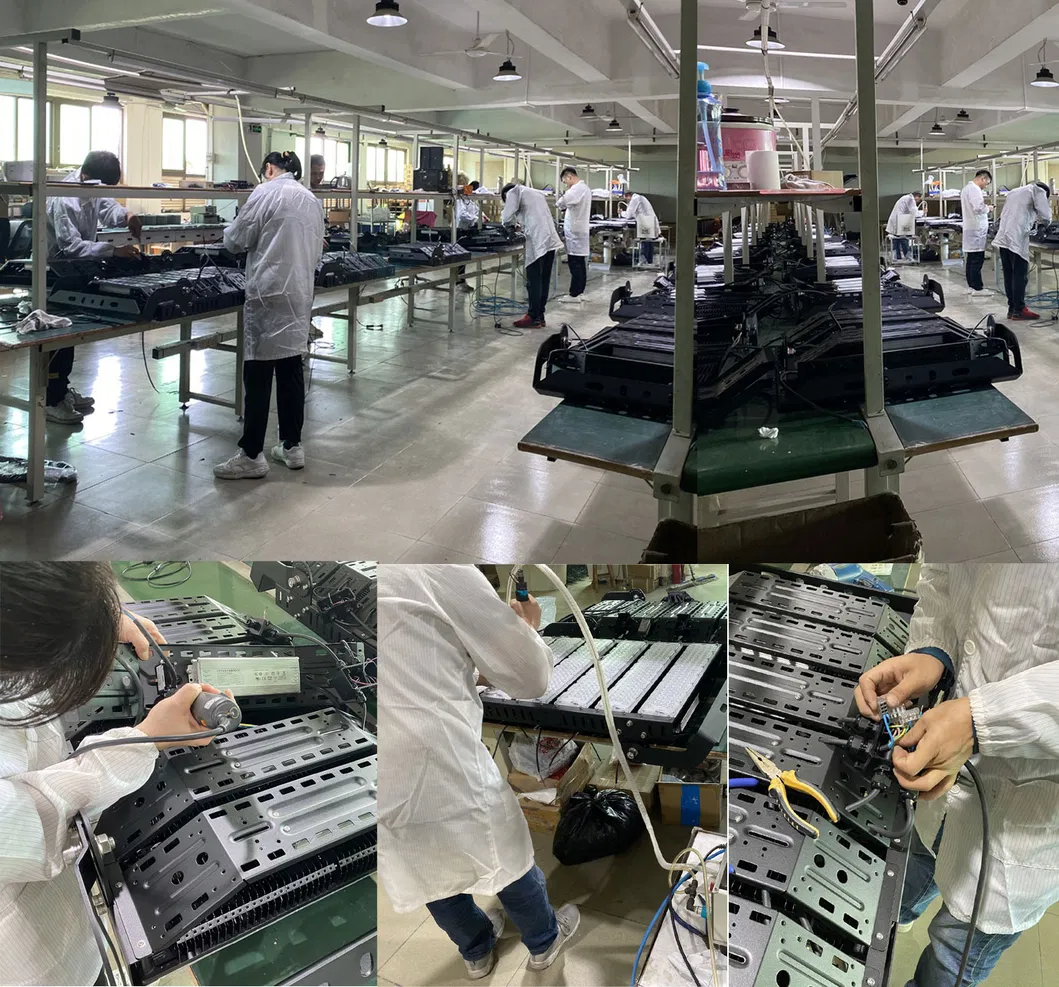

LED Flood Light Production Assembly Lines

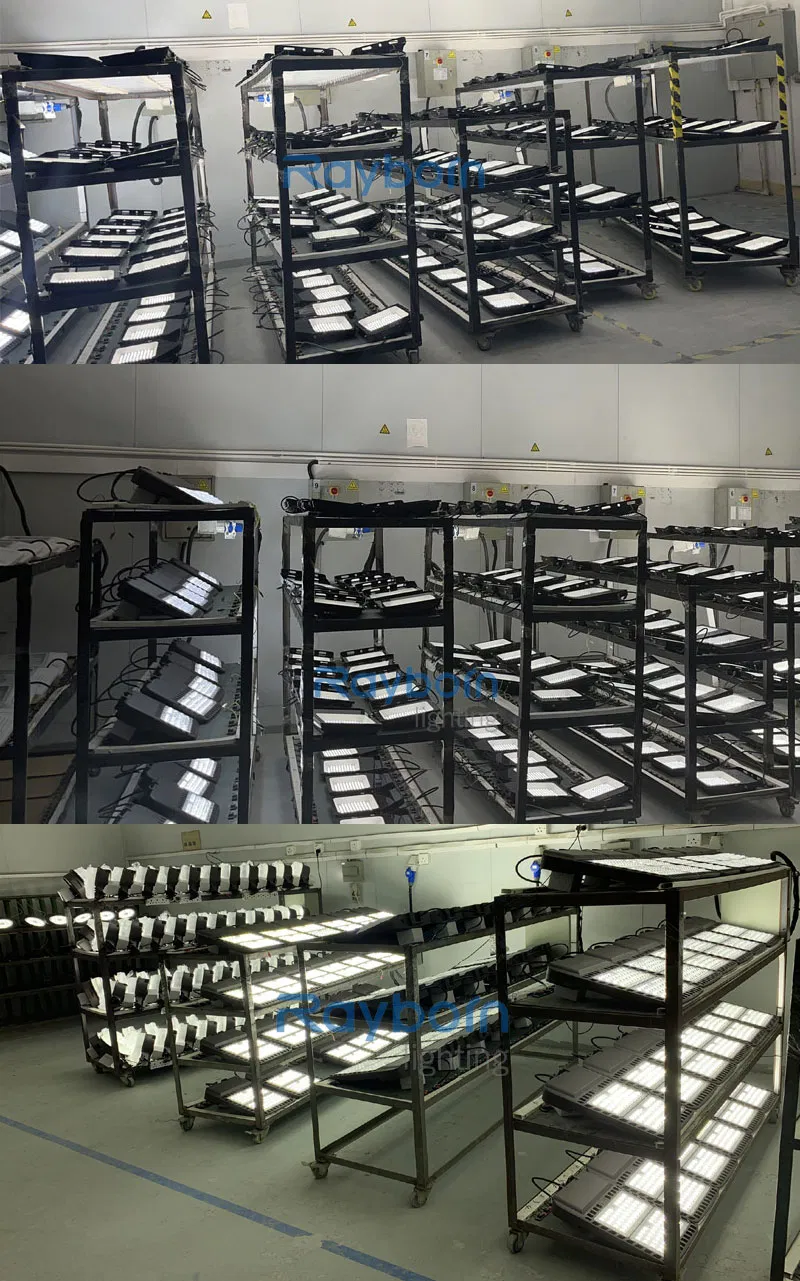

High Quality Waterproof Aging Test Racks

Strict Waterproof Testing & Verification

Advanced Testing Equipment

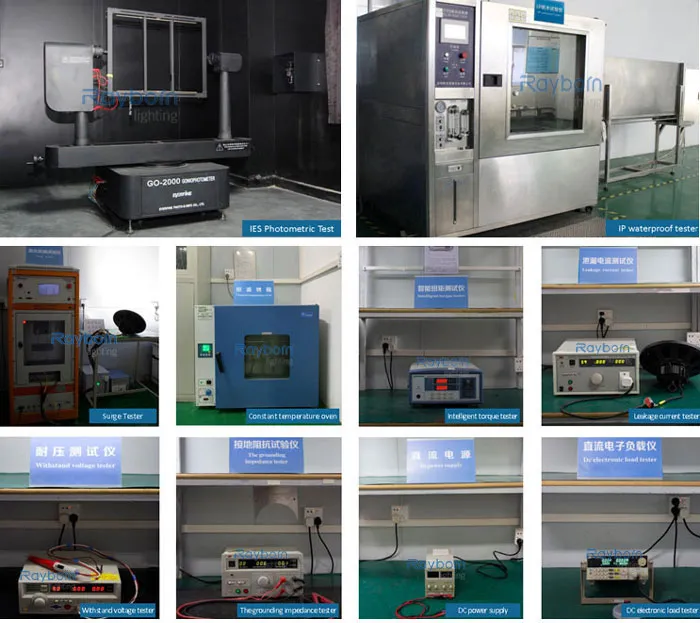

Professional Light and Color Distribution Spectroradiometer

Packaging, Shipping & Simulations

Our customized, individual packaging ensures high-grade protection against transport damage. Custom labels and branded packaging are available upon request. We accommodate global transport options via Sea, Air, Express, and Railway.

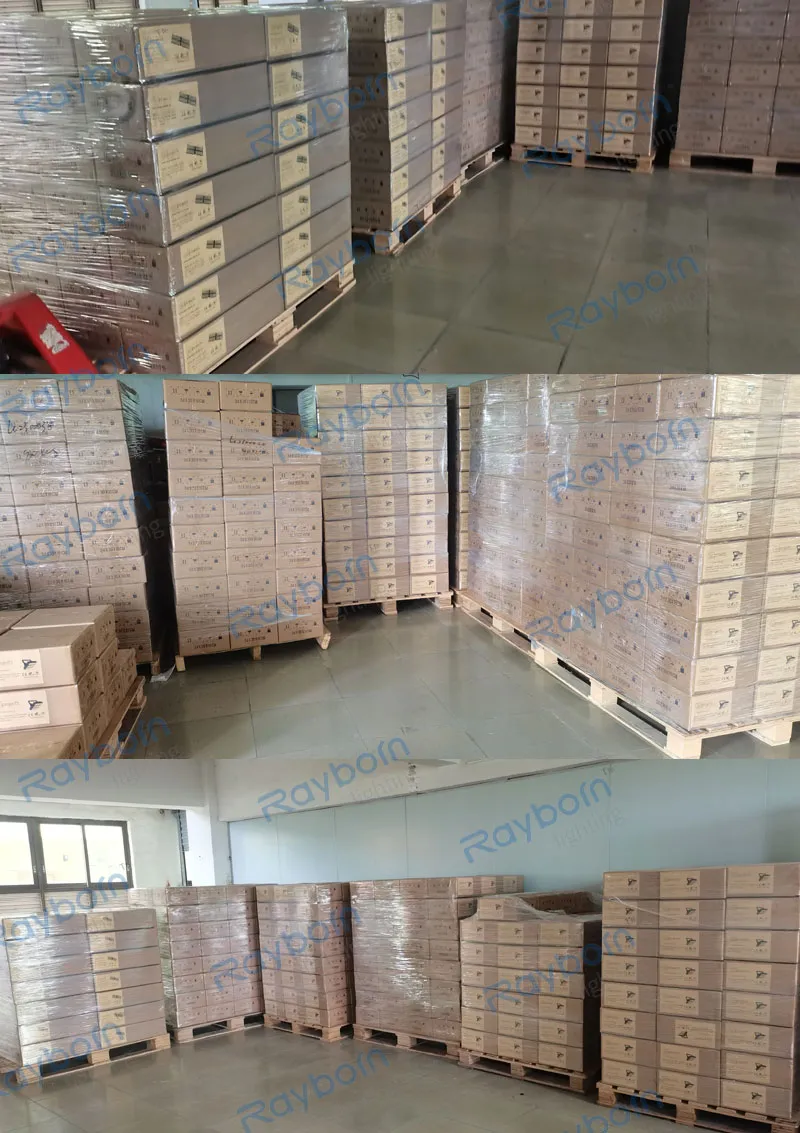

Safe Export Packaging and Shipping Logistics

Dialux Photometric Simulations

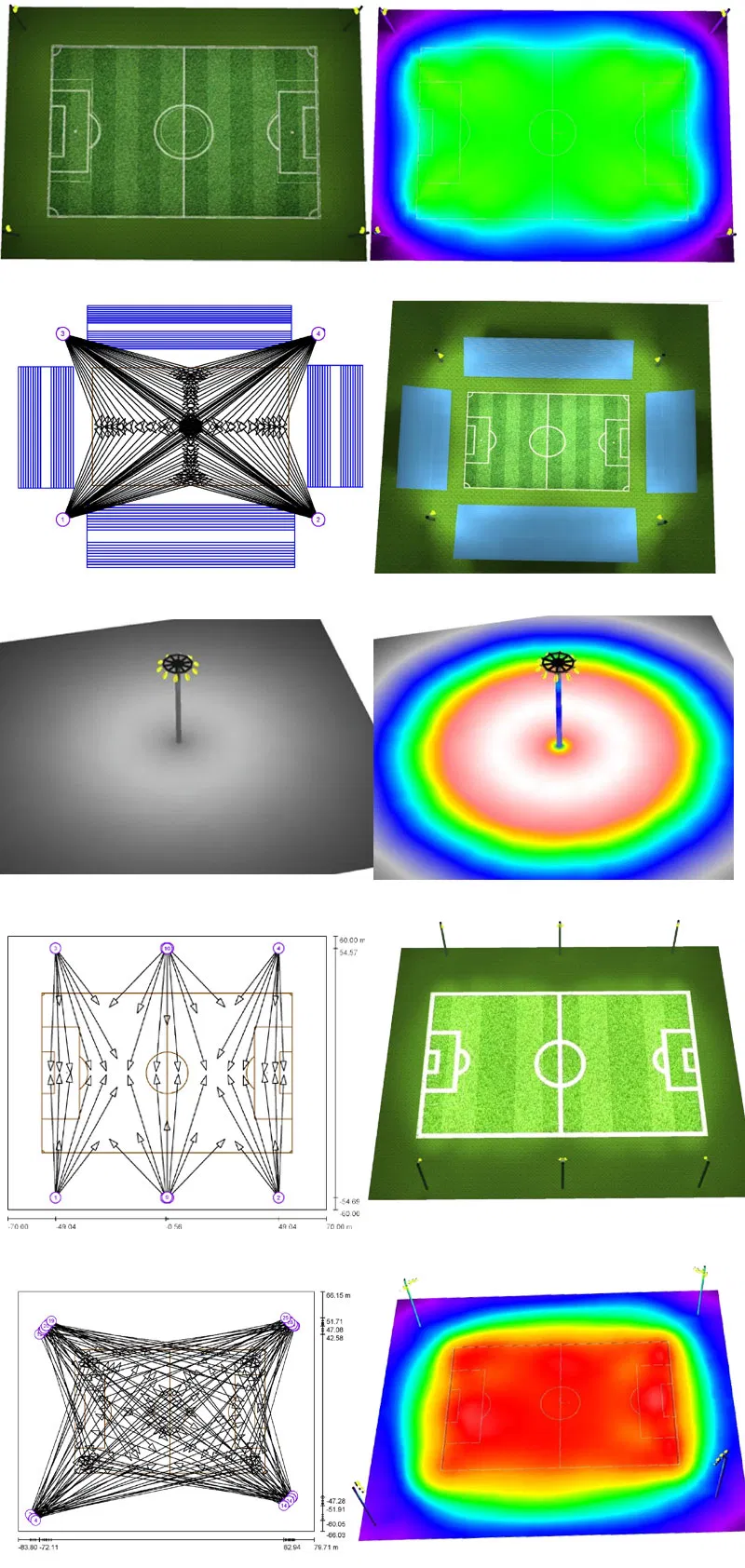

Stadium Illumination Dialux Analysis Simulation Report

Compliance & Certifications

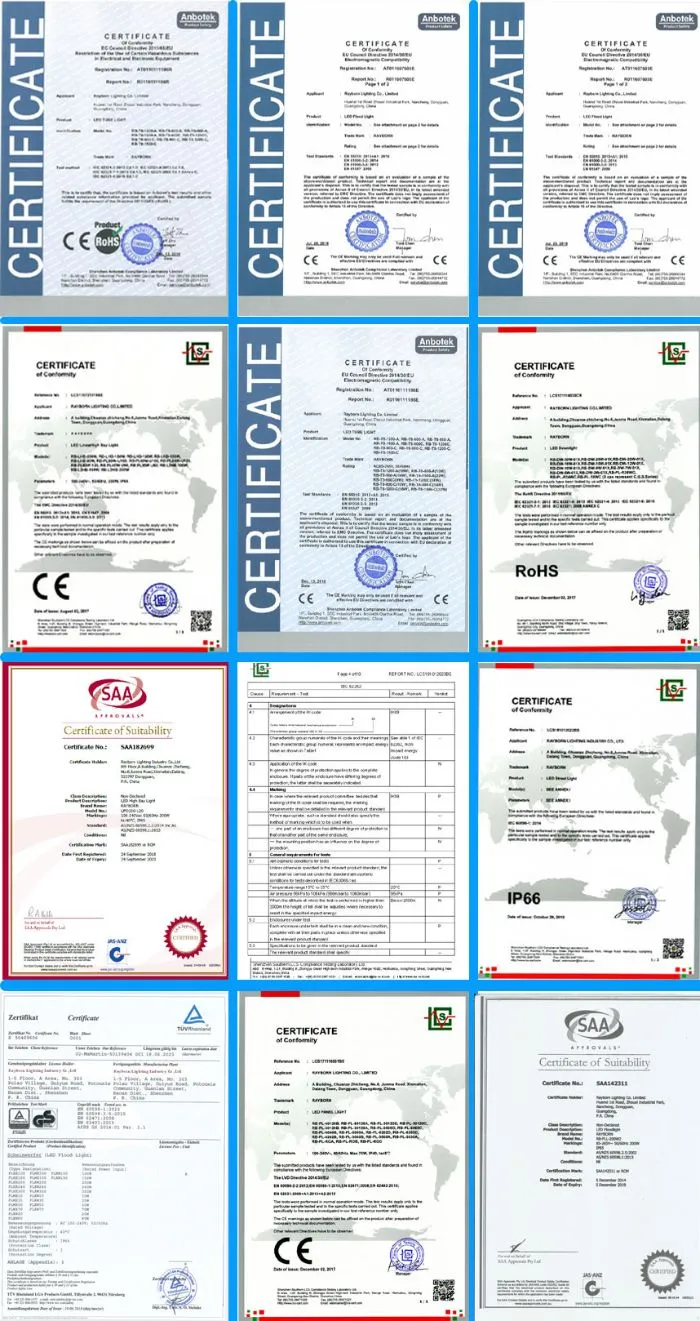

CE RoHS FCC SAA Safety Certificates for Stadium Lighting

Applications Overview

Widely deployed in multi-sport arenas, highway tunnels, railway crossings, building facades, parkways, airports, industrial yards, and high-visibility billboards.

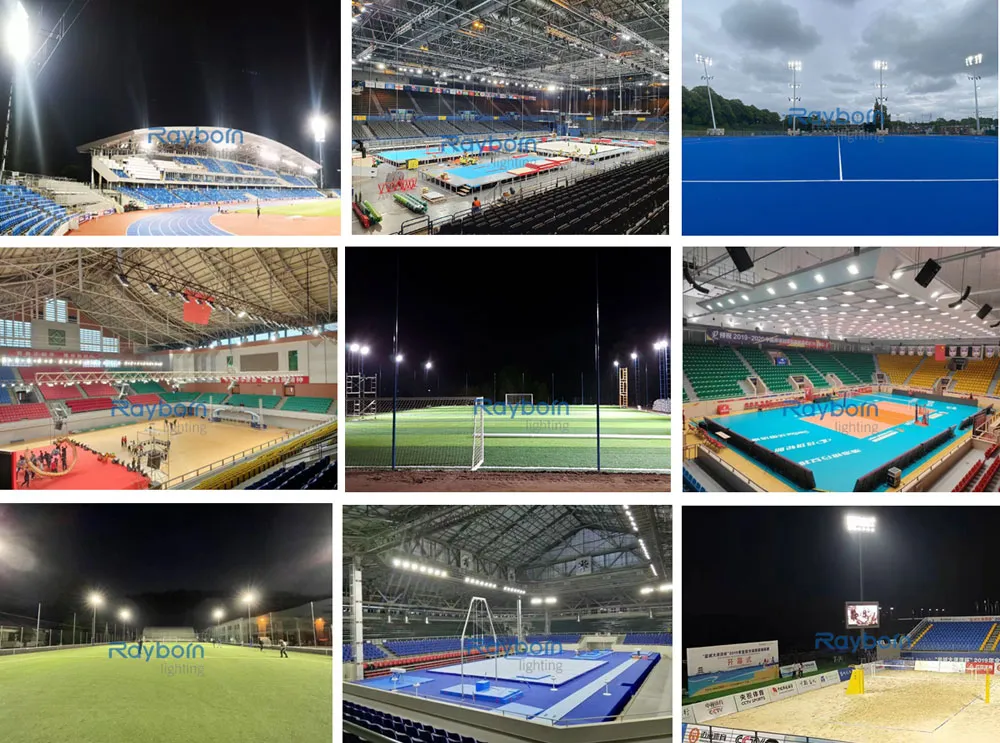

LED Stadium Lights Application Football Field

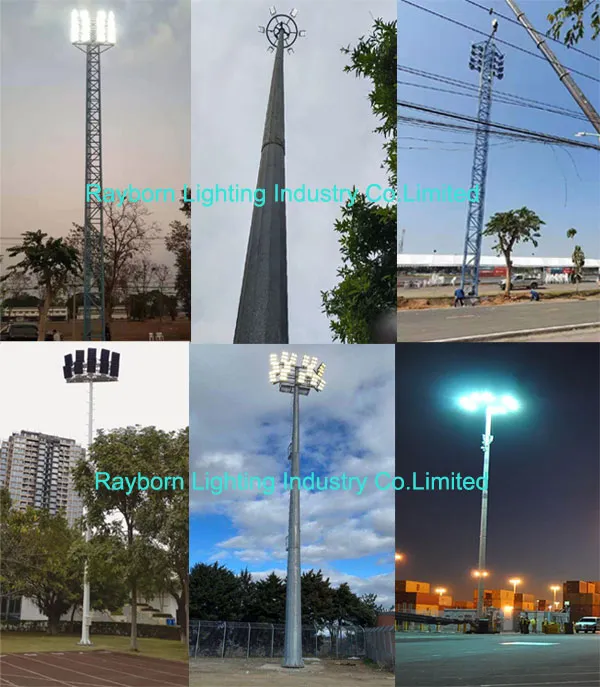

Outdoor Sports Arena Floodlight Installation

Frequently Asked Questions (FAQ)

What is the standard warranty on these LED flood lights?

We offer a robust 5-year warranty on all outdoor stadium and sports LED flood lights, built on high-performance drivers and solid-state components.

Which color temperature (CCT) options can I choose?

You can choose from several CCT variations: Warm White (3000K-3500K), Natural White (4000K-4500K), Pure White (5000K-5700K), and Cool White (6000K-6500K). Custom configurations are also available.

Are these LED fixtures globally compatible with different electrical grids?

Yes, our fixtures operate on a wide-range input voltage of AC 100-277V. Special configurations supporting higher voltages like 347V or 480V can also be customized.

Is there a Minimum Order Quantity (MOQ) restriction?

No, we have no MOQ limitation. We welcome prototype evaluation and sample orders starting from a single unit.

What is the estimated delivery and manufacturing lead time?

Sample orders are dispatched within 3-7 days. Larger mass production orders normally range between 7-15 days depending on total order volume and specification variables.

How are these lights protected from extreme outdoor elements?

The lights carry an IP66 waterproof and dustproof rating, along with IK08/IK09 impact strength ratings. They are engineered to endure typhoons/winds up to level 17, and feature integrated surge protection up to 20KV.
