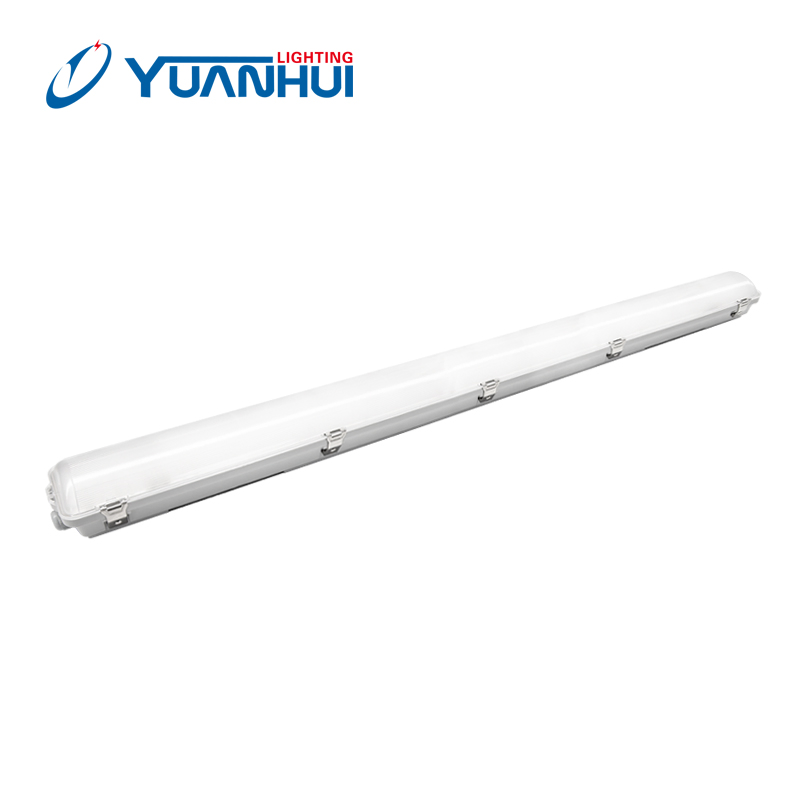

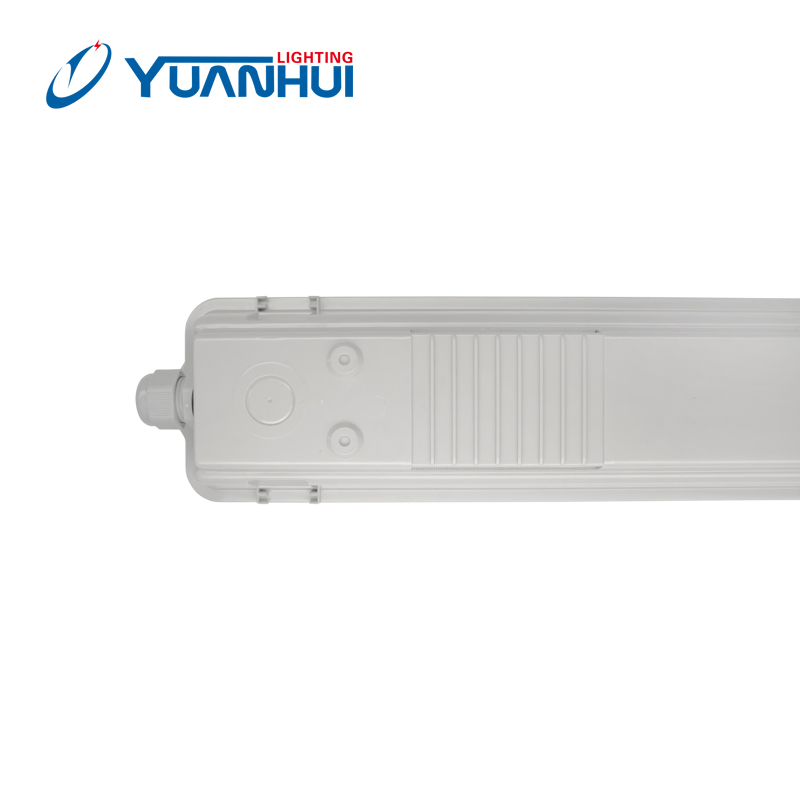

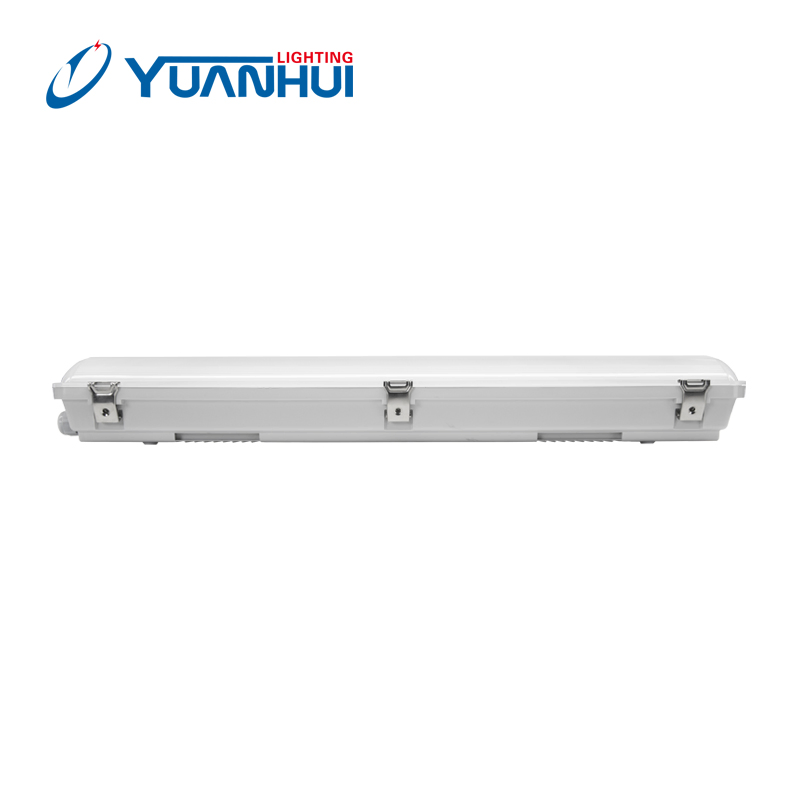

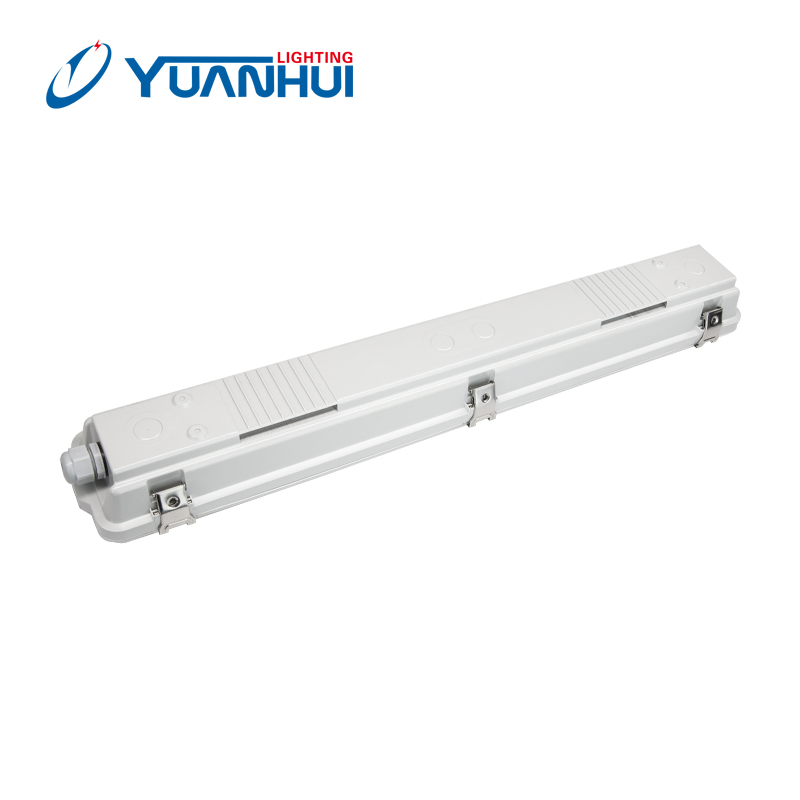

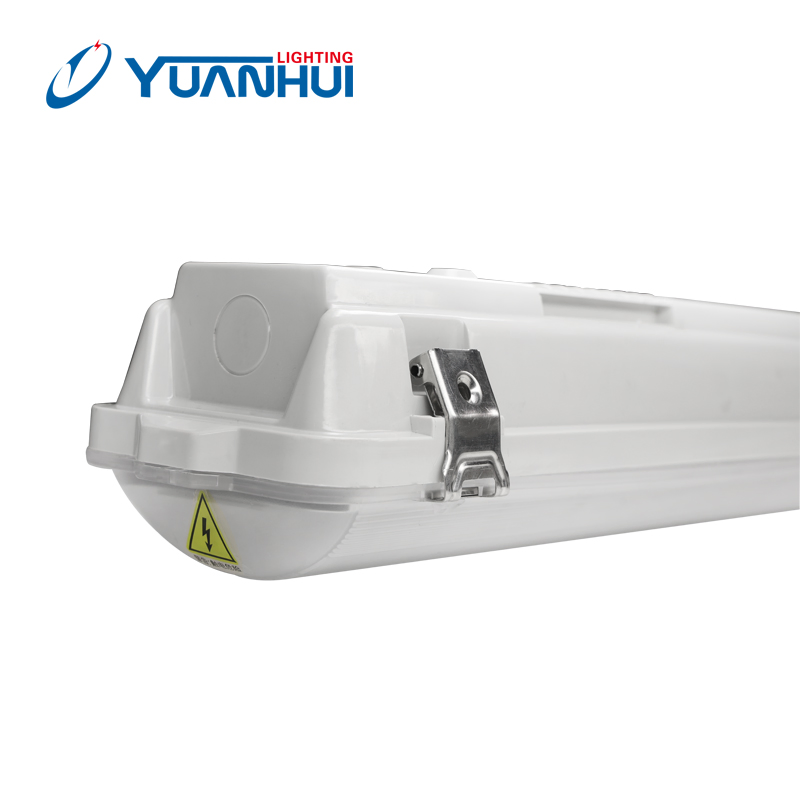

Osram or Meanwell Waterproof SMD5630 Tri-Proof LED Linear Light
Osram or Meanwell Waterproof SMD5630 Tri-Proof LED Linear Light
Osram or Meanwell Waterproof SMD5630 Tri-Proof LED Linear Light
Osram or Meanwell Waterproof SMD5630 Tri-Proof LED Linear Light
Osram or Meanwell Waterproof SMD5630 Tri-Proof LED Linear Light
1 / 5
Osram or Meanwell Waterproof SMD5630 Tri-Proof LED Linear Light
Osram or Meanwell Waterproof SMD5630 Tri-Proof LED Linear Light
Osram or Meanwell Waterproof SMD5630 Tri-Proof LED Linear Light
Osram or Meanwell Waterproof SMD5630 Tri-Proof LED Linear Light
Osram or Meanwell Waterproof SMD5630 Tri-Proof LED Linear Light

Osram or Meanwell Waterproof SMD5630 Tri-Proof LED Linear Light

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

ℹ

Basic Specifications

Model NO.
LMF12-600
Power
50W
Usage
Warehouse
Lifespan
≥50000H
Certification
CE, C-tick, EMC, GS, LVD, RoHS, SAA, VDE, Dlc
Beam Angle
120°
LED Chips
Samsung
Size
2 Foot, 4 Foot, 5 Foot
Voltage
100-240V 50/60Hz
IP Rate
IP66
LED Driver
Constant Current LED Driver
LED Brand
Osram, Tridonic Brand
LED Type
SMD2835, Epistar, Samsung
Transport Package
Inner Box + Carton Box
HS Code
9405409000
Production Cap.
30000PCS/Month
★

Product Description

IP66 LED Module Waterproof Luminaire

IP66 LED Waterproof Light
Input: AC 100-270V, 50-60HZ
Driver: OSRAM, Meanwell or other professional options
Reflector: MCPCB or High temperature resistant PCB for your option
Body and diffuser meet IK08 and 850 degree glow wire test requirement
Perfect replacement for the whole set of T8 fluorescent Luminaire
Save up to 60% in electricity consumption compared to fluorescent fixtures
Lifetime: 50,000hrs, Warranty: 5 years
Available with sensor (turn on/off, dim sensor) and emergency kit
Suitable for supermarkets, underground parking, warehouses, and outdoor wet locations
⚙

Technical Parameters

Model No LMF12-600 LMF24-600 LMF24-1160 LMF36-1160 LMF48-1160 LMF34-1560 LMF54-1560 LMF70-1560
Power (w) 12w 24w 24w 36w 48w 34w 54w 70w
Product Size 600*120*108mm 1160*120*108mm 1560*120*108mm
Efficiency 100lm/w (Opal Lens)
CCT (K) 2700-6500K
Certificates CE-LVD, EMC, ROHS, GS, ENEC, CB, SAA, C-TICK, UL, CUL, DLC
LED Chips SAMSUNG or EVERLIGHT
LED Driver OSRAM or MEANWELL
IP / IK Rate IP66 / IK08
Material High Quality Polycarbonate Material
⚒

Visuals & Workflow

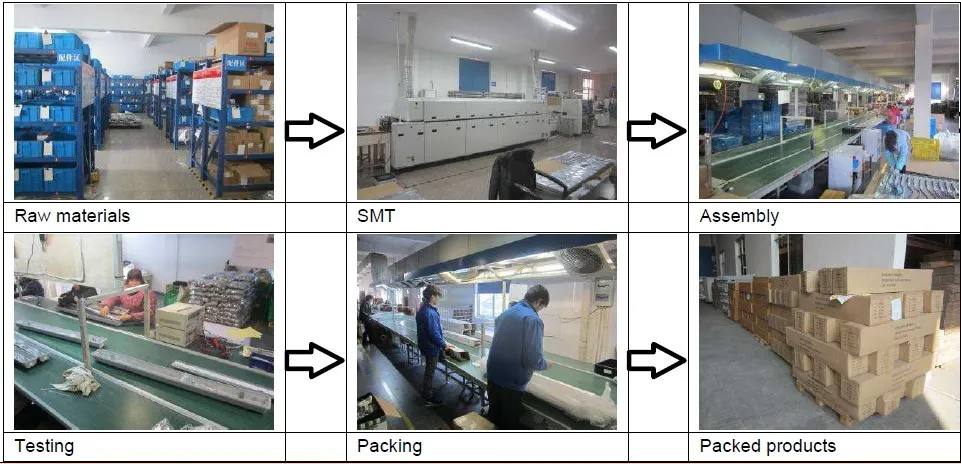

Production Workflow Chart:

Production Workflow Chart

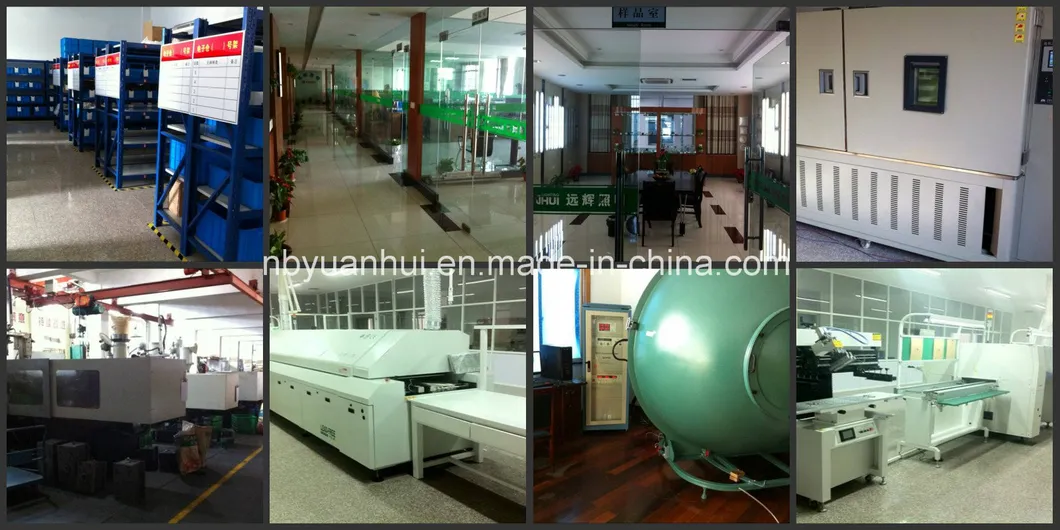

Factory Review:

Factory Review
?

Frequently Asked Questions

Q: What is the IP rating of this LED luminaire?
A: This product is IP66 rated, making it completely dust-tight and protected against powerful water jets, suitable for outdoor and wet locations.
Q: What brands of LED chips and drivers are used?
A: We use high-quality components including Samsung or Everlight LED chips, and Osram or Meanwell LED drivers to ensure stability and longevity.
Q: Does the light come with a warranty?
A: Yes, we provide a 5-year warranty for this LED linear light, backed by a 50,000-hour rated lifespan.
Q: Can this fixture be used with sensors?
A: Absolutely. It can be equipped with motion sensors (on/off), dimming sensors, and emergency kits according to your project requirements.
Q: What is the impact resistance of the body?
A: The polycarbonate body and diffuser are IK08 rated, ensuring high resistance against mechanical impacts.
Q: Is it energy efficient compared to traditional lighting?
A: Yes, it is designed to save up to 60% in electricity consumption compared to traditional T8 fluorescent lighting fixtures.
