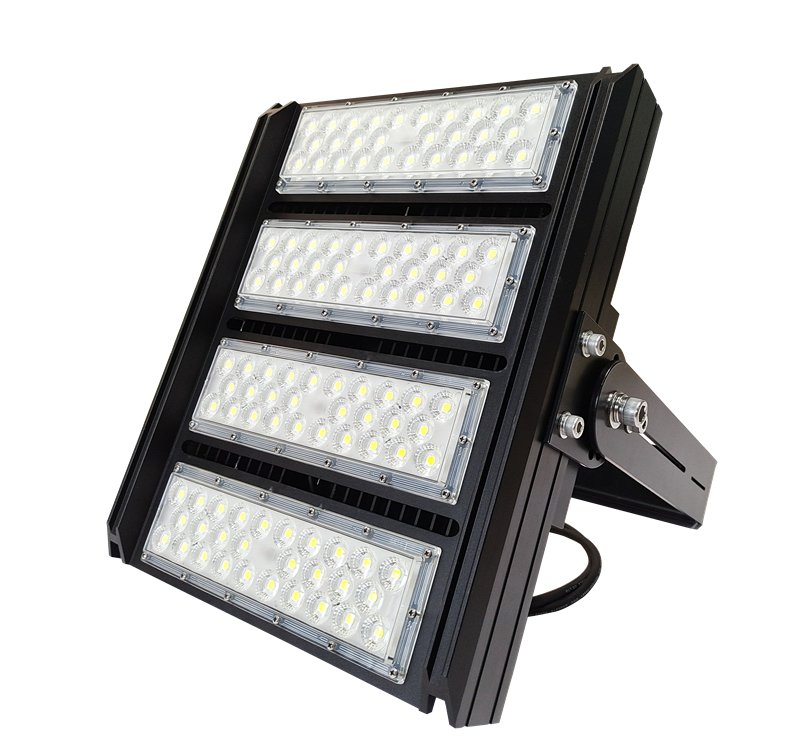

IP66, CE, CB, ENEC, High Power LED Flood Light 400W LED Floodlight for Tunnel, Square
IP66, CE, CB, ENEC, High Power LED Flood Light 400W LED Floodlight for Tunnel, Square
IP66, CE, CB, ENEC, High Power LED Flood Light 400W LED Floodlight for Tunnel, Square
IP66, CE, CB, ENEC, High Power LED Flood Light 400W LED Floodlight for Tunnel, Square
IP66, CE, CB, ENEC, High Power LED Flood Light 400W LED Floodlight for Tunnel, Square
1 / 5
IP66, CE, CB, ENEC, High Power LED Flood Light 400W LED Floodlight for Tunnel, Square
IP66, CE, CB, ENEC, High Power LED Flood Light 400W LED Floodlight for Tunnel, Square
IP66, CE, CB, ENEC, High Power LED Flood Light 400W LED Floodlight for Tunnel, Square
IP66, CE, CB, ENEC, High Power LED Flood Light 400W LED Floodlight for Tunnel, Square
IP66, CE, CB, ENEC, High Power LED Flood Light 400W LED Floodlight for Tunnel, Square

IP66, CE, CB, ENEC, High Power LED Flood Light 400W LED Floodlight for Tunnel, Square

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

  • Overview
  • Product Parameters
  • Description
  • Applications
📊 Basic Information
Model NO.
JYT11-400
Power
≥100W
Application
Park, Square, Factory, Garden, Port, Station
IP Rating
IP66
Certification
CCC, CE, CQC, RoHS
Operating Voltage
85-265V
Input Voltage
90-305V
LED Chips Brand
Bridgelux
Efficiency
>140 Lm/W
Luminous Flux
580000
Warranty
3 Years
Life
100000 H
Capacity
5000 PCS/Month
⚙️ Technical Parameters
No. Parameters Unit Standard
Optical Parameters
1Color temperatureK5700 (optional)
2CRI/≥70
3Luminous fluxLm58000
4Luminous efficiencyLm/W145
5Beam angleº40 (optional)
6LifeHrs50000
Electrical Parameters
7PowerW300 / 350 / 400
8Input voltageVac100-305
9Max input currentA4.0
10FrequencyHz50/60
11Output currentA8.5
12Power factor/≥0.95
Structural & Comprehensive
15Dimensions(L*W*H)mm335*474*123
16WeightKg10
17IP Rating/66
19Operating tempºC-40 ~ +50
22Environmental/RoHs

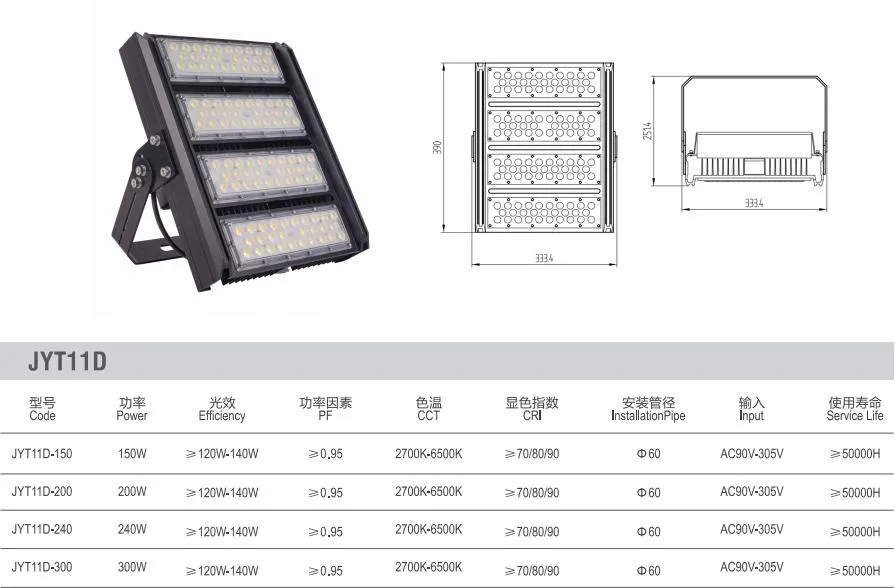

LED Flood Light 400W
💡 Key Features
🔄 Replace 700W metal halide lamp
🌡️ Good junction temperature & insulation
🔥 High output and excellent thermal
⚖️ Light weight and attractive appearance
🔌 Universal voltage 100~305Vac
⏳ 50,000 hours rated average life

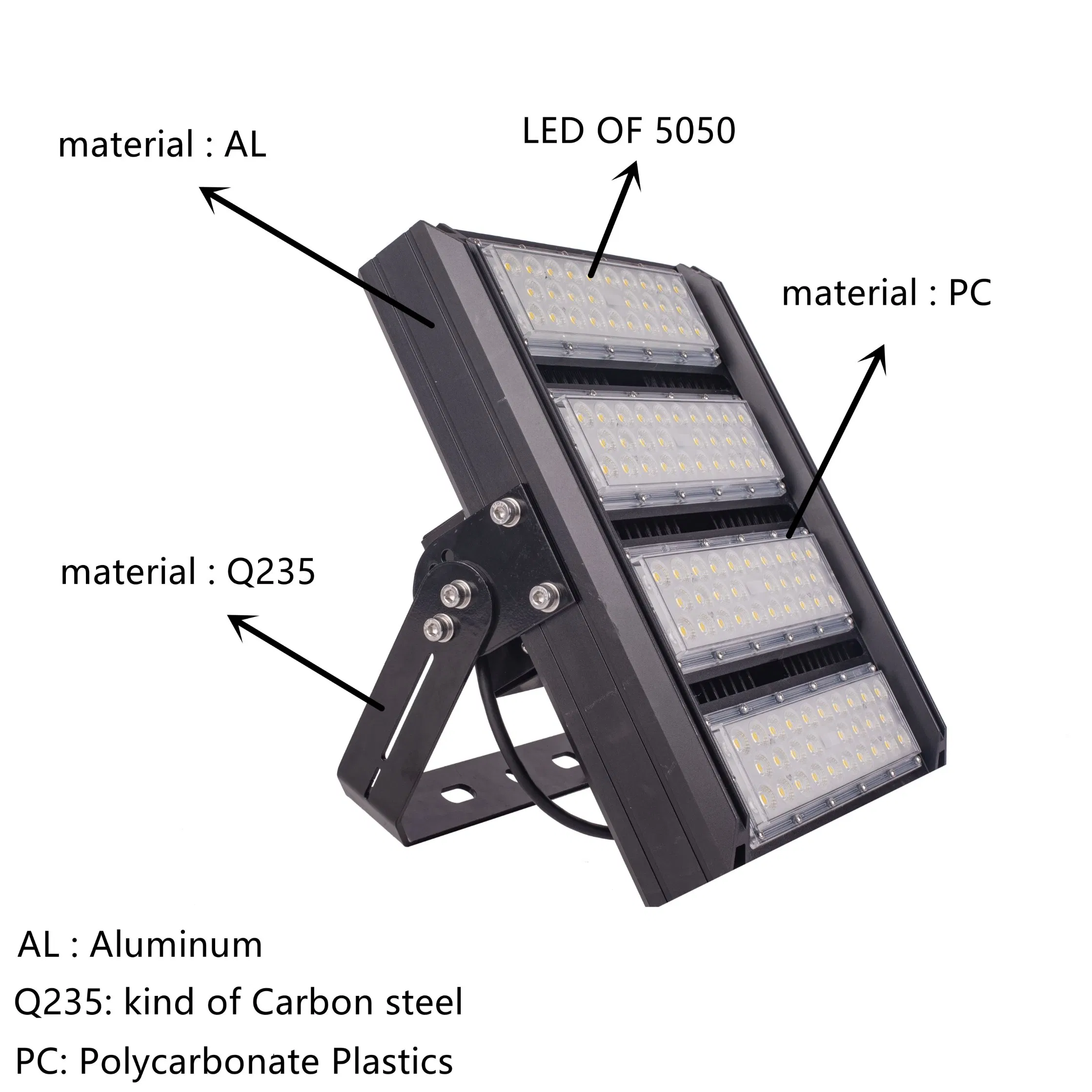

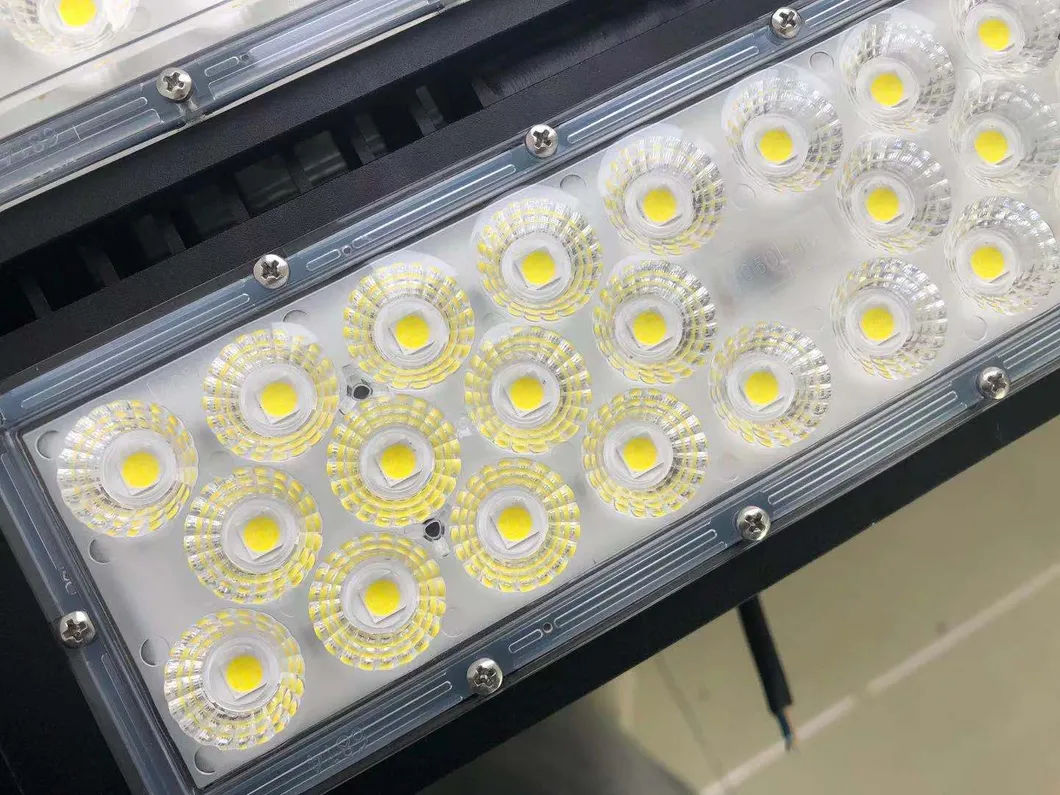

SMD led 5050

SMD LED 5050, 145-160 lm/w

Product Detail

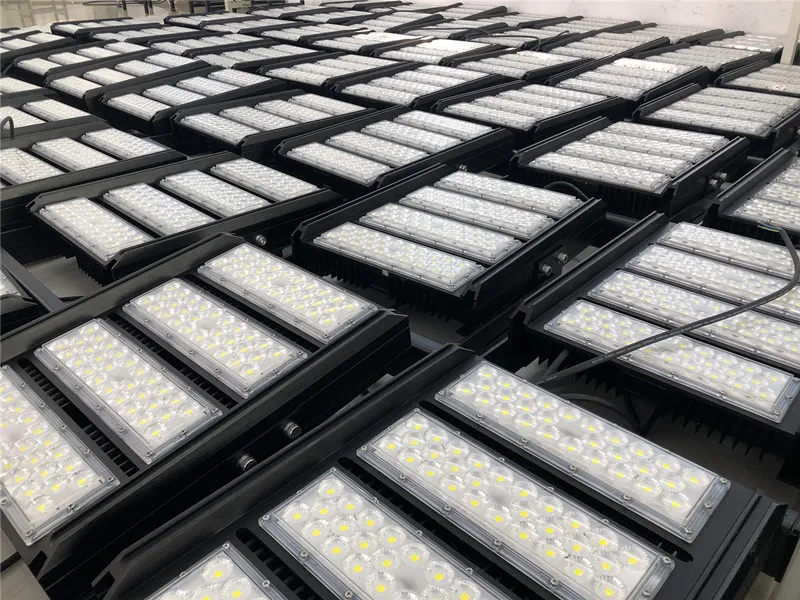

High Power LED Flood Light

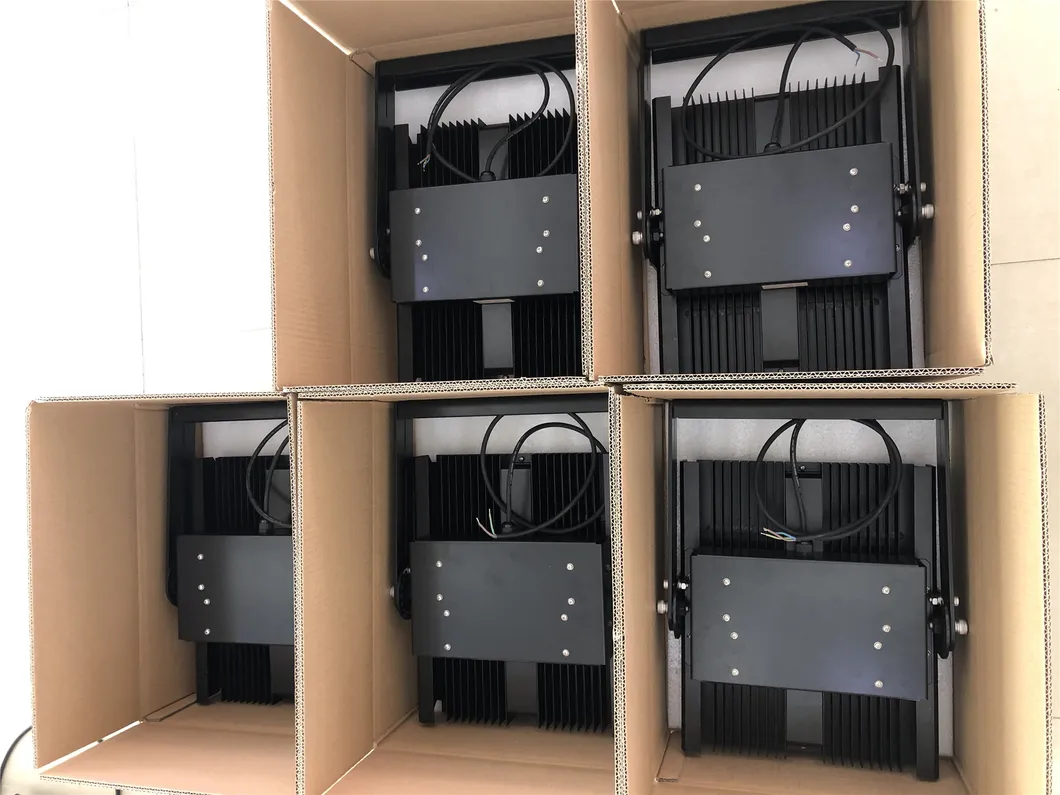

Technical Drawing

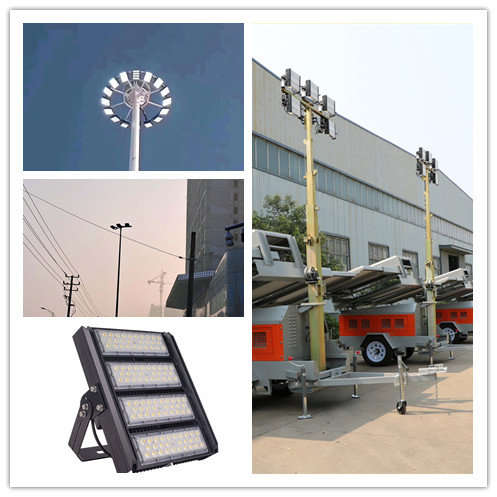

🏗️ Applications
Area Lighting
Architecture Lighting
Stadium Lighting
Light Tower

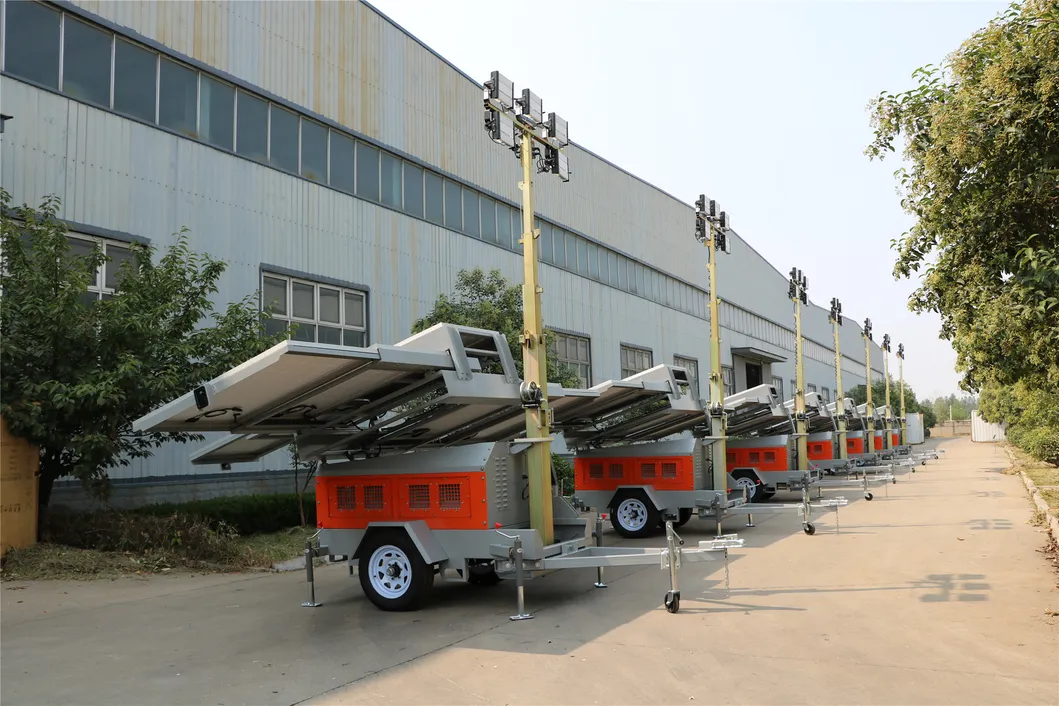

Application 1

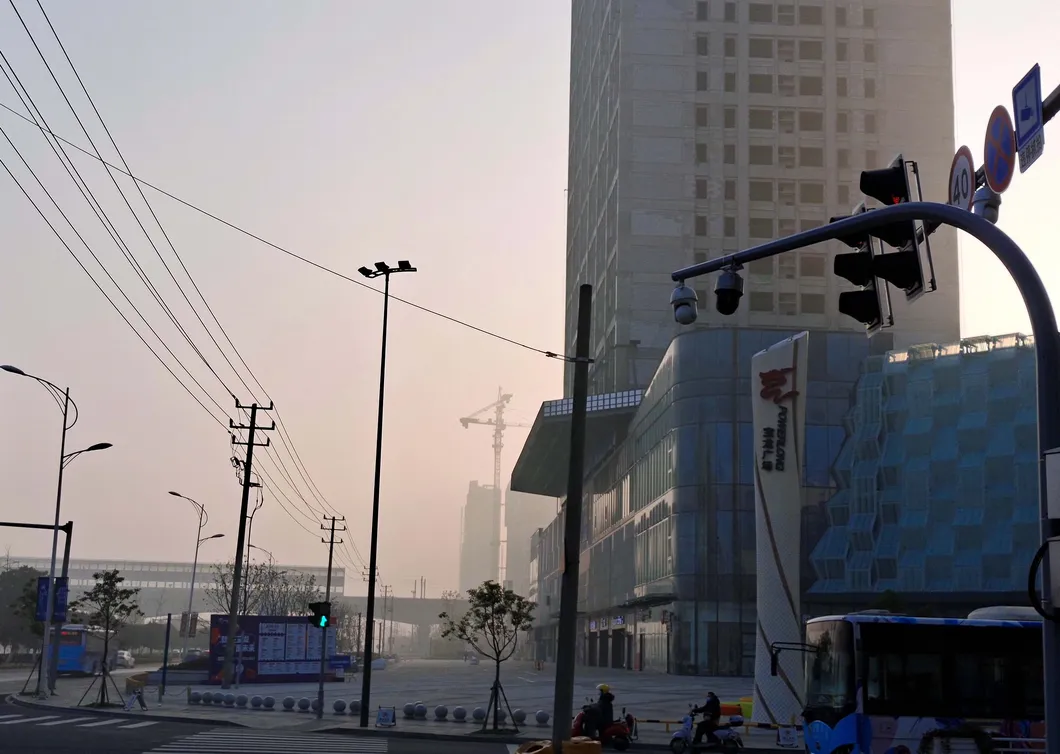

Application 2
❓ Frequently Asked Questions
What is the luminous efficiency of this LED floodlight?
The product features high-efficiency Bridgelux LED chips with a luminous efficiency of approximately 145 Lm/W, providing a total luminous flux of up to 58,000 Lm.
Is this light suitable for extreme outdoor weather?
Yes, it has an IP66 rating, making it completely protected against dust and powerful water jets. It also operates in temperatures ranging from -40ºC to +50ºC.
Can it replace traditional metal halide lamps?
Absolutely. This 400W LED floodlight is designed to efficiently replace a 700W metal halide lamp, offering significant energy savings and longer life.
What voltage range does the driver support?
The light comes with a universal high-quality driver that supports an input voltage range of 100~305Vac (50/60Hz).
What is the expected lifespan and warranty?
The product has a rated average life of 50,000 to 100,000 hours and comes with a 3-year warranty for peace of mind.
What are the primary applications for this floodlight?
It is ideal for large area lighting, stadium lighting, architectural illumination, and mounting on light towers at ports, stations, or factories.
