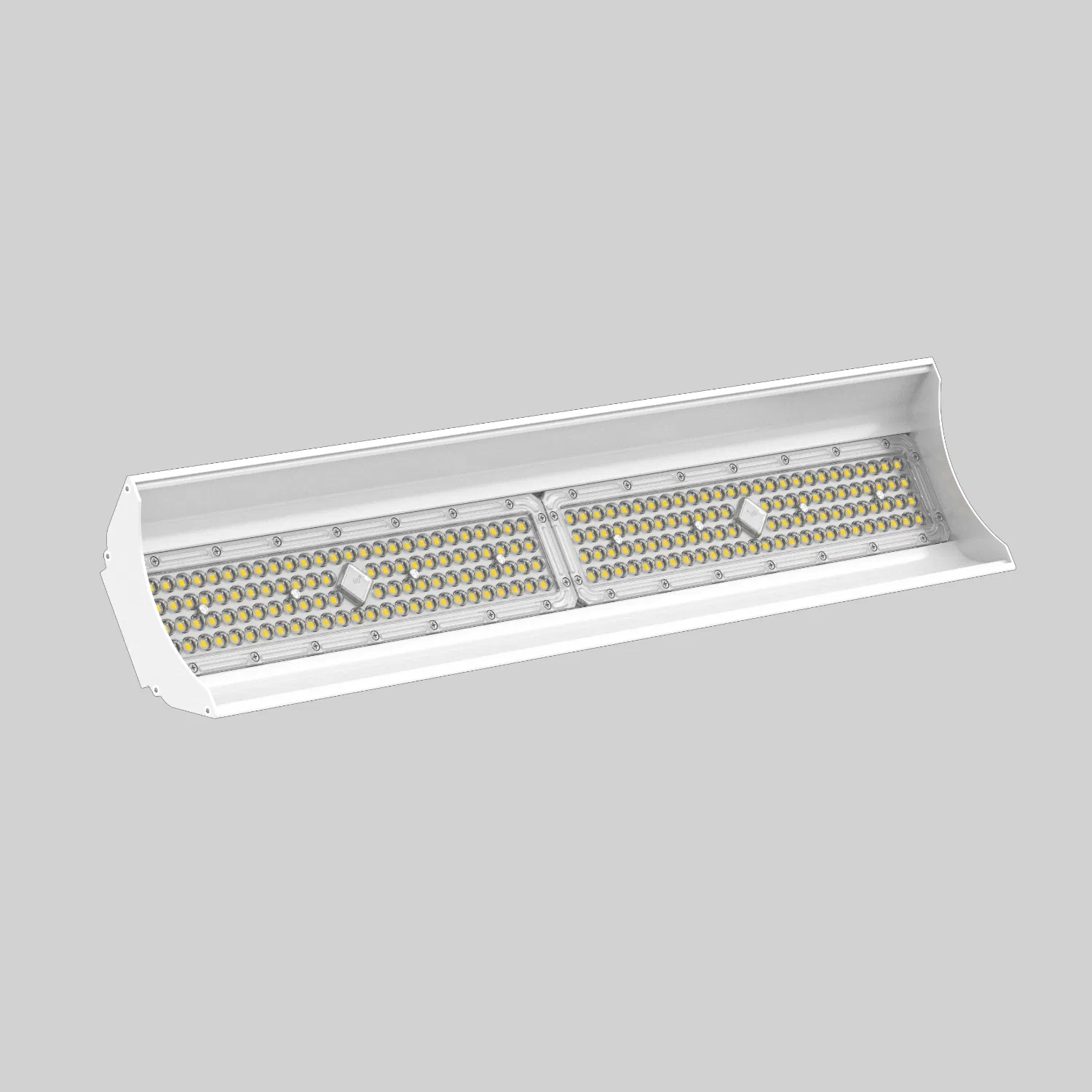

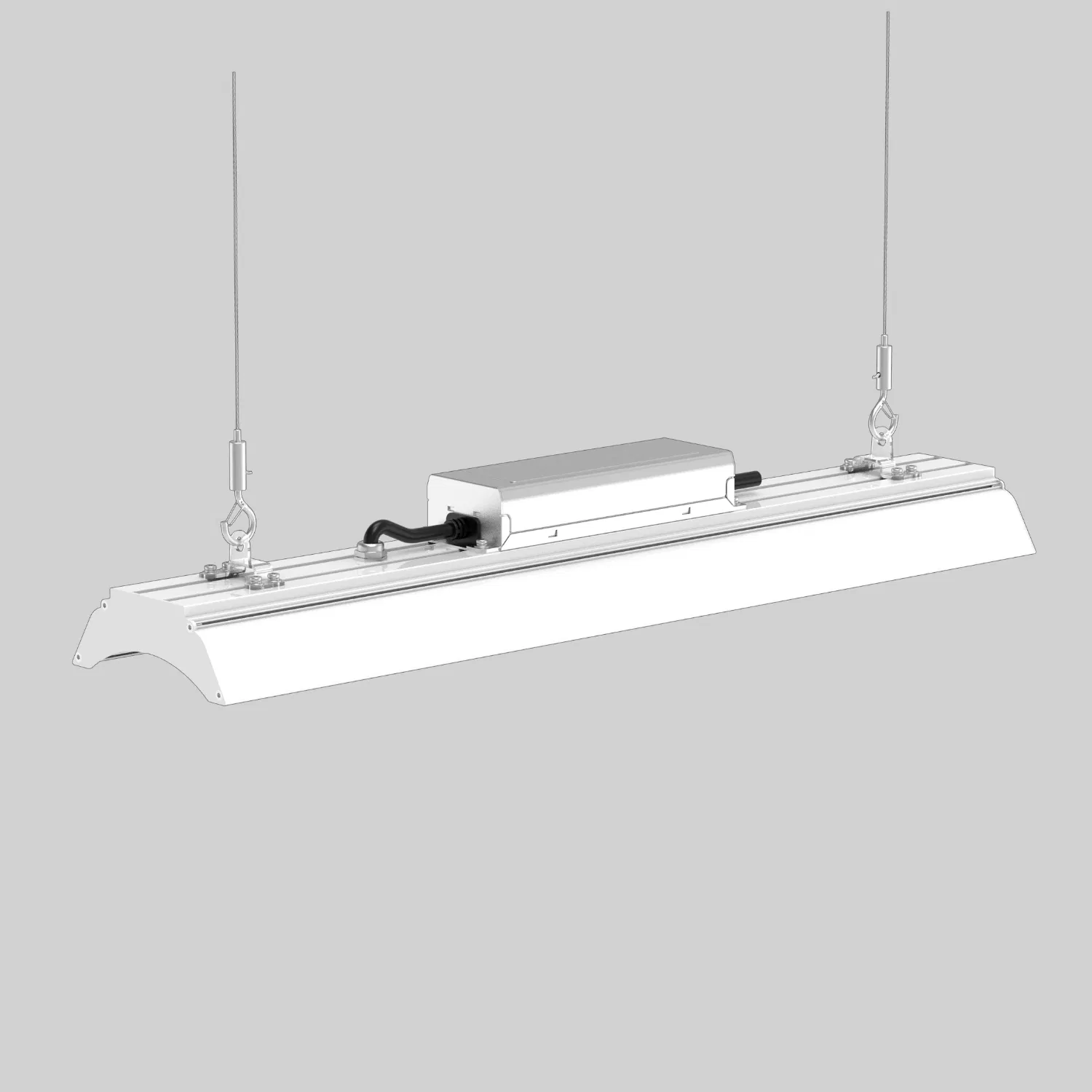

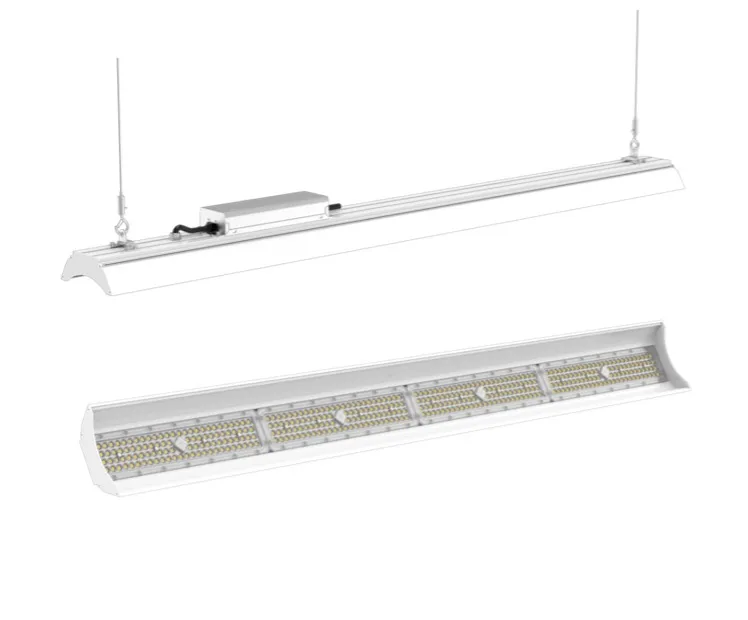

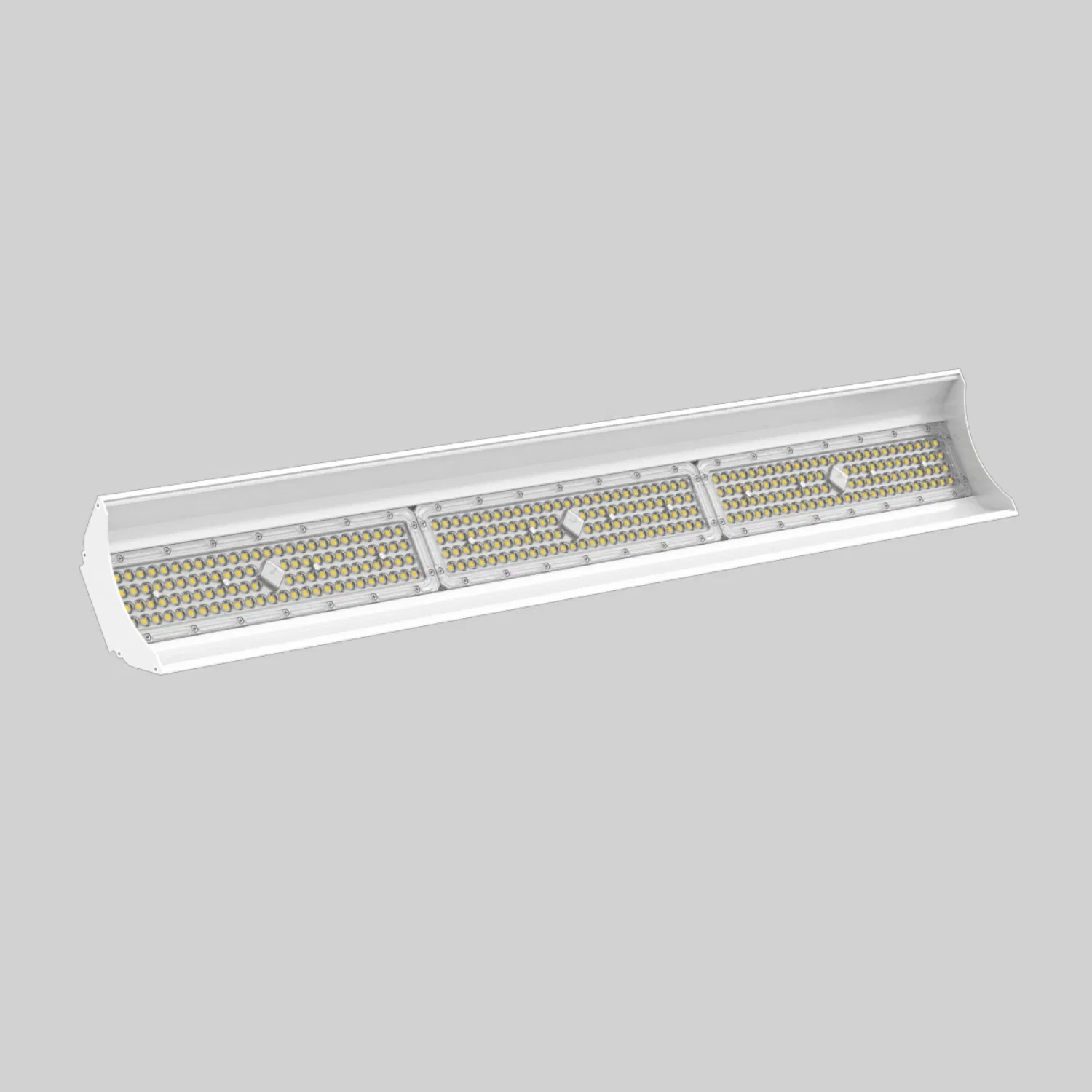

Linear LED High Bay Light - Chain suspension

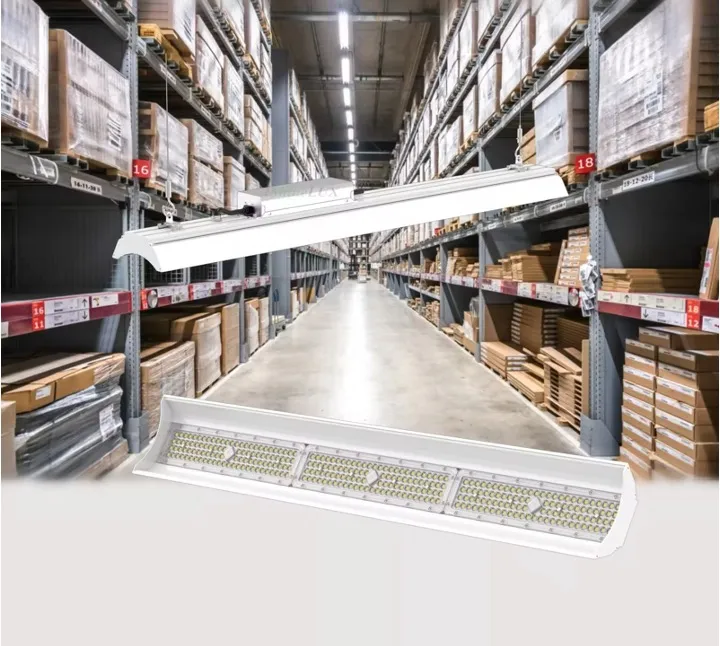

Our LED Linear High Bay Lights are ideal for a wide range of commercial and industrial environments, including warehouses, manufacturing plants, and sports halls. Designed for easy installation and low maintenance, these high bays come equipped with durable suspension mounting brackets. Crafted from high-quality die-cast aluminium, they feature integrated premium Lumi LED chips that deliver exceptional brightness, minimal light decay, and an extended lifespan.
The lights utilise international-brand drivers with overheat protection, high conversion efficiency, high power factor, and surge protection, supporting 1-10V and DALI 2.0 dimming. With advanced die-casting ADC12 technology, the fixtures provide excellent thermal management to balance internal and external temperatures, reducing chip junction temperatures and light degradation. An optical UV-resistant PC lens ensures 94% light transmittance, while the IK08-rated housing offers robust protection.
| JK50W | 305 * 133 * 77mm |
| JK100W | 605 * 133 * 83mm |
| JK150W | 905 * 133 * 83mm |
| JK200W | 1205 * 133 * 83mm |
| Construction | Die-casting Aluminum |
| Power Options | 50 / 100 / 150 / 200 Watt |
| Luminous Efficacy | 140lm/W |
| CRI | 80Ra |
| Beam Angle | 25°, 45°, 60°, 90°, 90*120°, 80*150°, ASY-80° |
| LED Chips | Bridge Lux chips |
| Color Temp | 3000K, 4000K, 5000K, 5700K, 6500K |
| Protection Rating | IP65 & IK08 |
| Input Voltage | AC100 - 277V 50/60Hz |
| Warranty | 5 Years |
