China Warehouse LED High Bay Lamp, Linear LED High Bay
China Warehouse LED High Bay Lamp, Linear LED High Bay
China Warehouse LED High Bay Lamp, Linear LED High Bay
China Warehouse LED High Bay Lamp, Linear LED High Bay
China Warehouse LED High Bay Lamp, Linear LED High Bay
1 / 5
China Warehouse LED High Bay Lamp, Linear LED High Bay
China Warehouse LED High Bay Lamp, Linear LED High Bay
China Warehouse LED High Bay Lamp, Linear LED High Bay
China Warehouse LED High Bay Lamp, Linear LED High Bay
China Warehouse LED High Bay Lamp, Linear LED High Bay

China Warehouse LED High Bay Lamp, Linear LED High Bay

Customization: Available
Color Temperature: Warm White
Lamp Body Material: Aluminum Alloy
Send Inquiry

Product Description

Basic Specifications

Model NO.
50W
Power
50W
Usage
Factory
Lifespan
≥50000H
IP Rating
IP65
Certification
CE, C-tick, FCC, GS, LVD, PSE, RoHS, SAA
Beam Angle
120°
LED Chips
Nichia / Lumileds SMD3030
LED Driver
Meanwell UL Approved
Shape
Rectangle
Body Colour
Black+Red
Output Options
50W to 240W

Product Description

  • ★Original Lumileds SMD3030 chips, LM80 TM21 certified, up to 140lm/W.

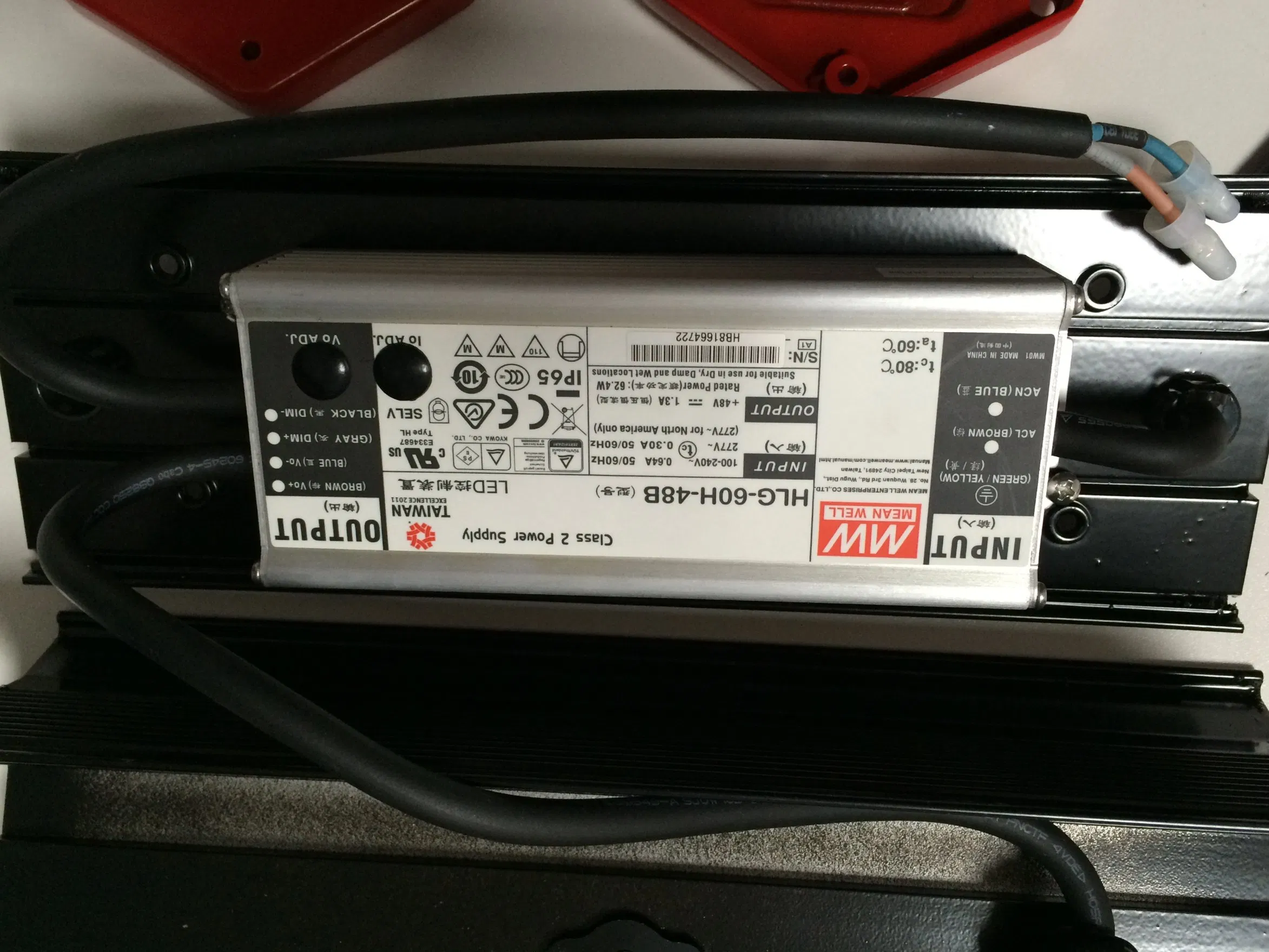

  • ★High-performance Meanwell driver with 5 years warranty.
  • ★Power Range: 50w / 100w / 150w / 200w / 240w / 300w.
  • ★Smart Controls: Zigbee/DALI dimmable, motion sensor, and daylight sensor optional.
  • ★Materials: Robust Die-cast Aluminum and Tempered glass (PC lens optional).
  • ★Mounting: Versatile height of 8-15 m with multiple installation methods.

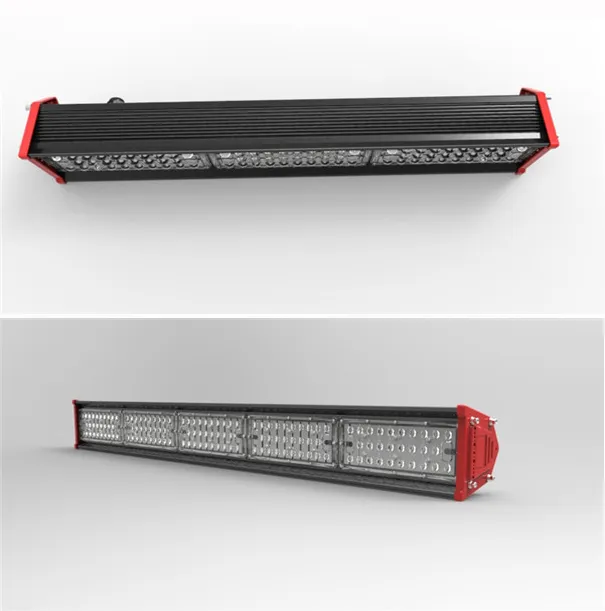

Warehouse LED High Bay Lamp

Technical Parameters

Model Power CCT(K) Beam Angle LED Qty Driver Voltage
Linear High Bay 50W50W3000K-5000K30°*70°/60°*90°/120°56pcsMeanWellAC100-277V
Linear High Bay 100W100W3000K-5000K30°*70°/60°*90°/120°112pcsMeanWellAC100-277V
Linear High Bay 150W150W3000K-5000K30°*70°/60°*90°/120°168pcsMeanWellAC100-277V
Linear High Bay 200W200W3000K-5000K30°*70°/60°*90°/120°224pcsMeanWellAC100-277V
Linear High Bay 240W240W3000K-5000K30°*70°/60°*90°/120°280pcsMeanWellAC100-277V

Core Features

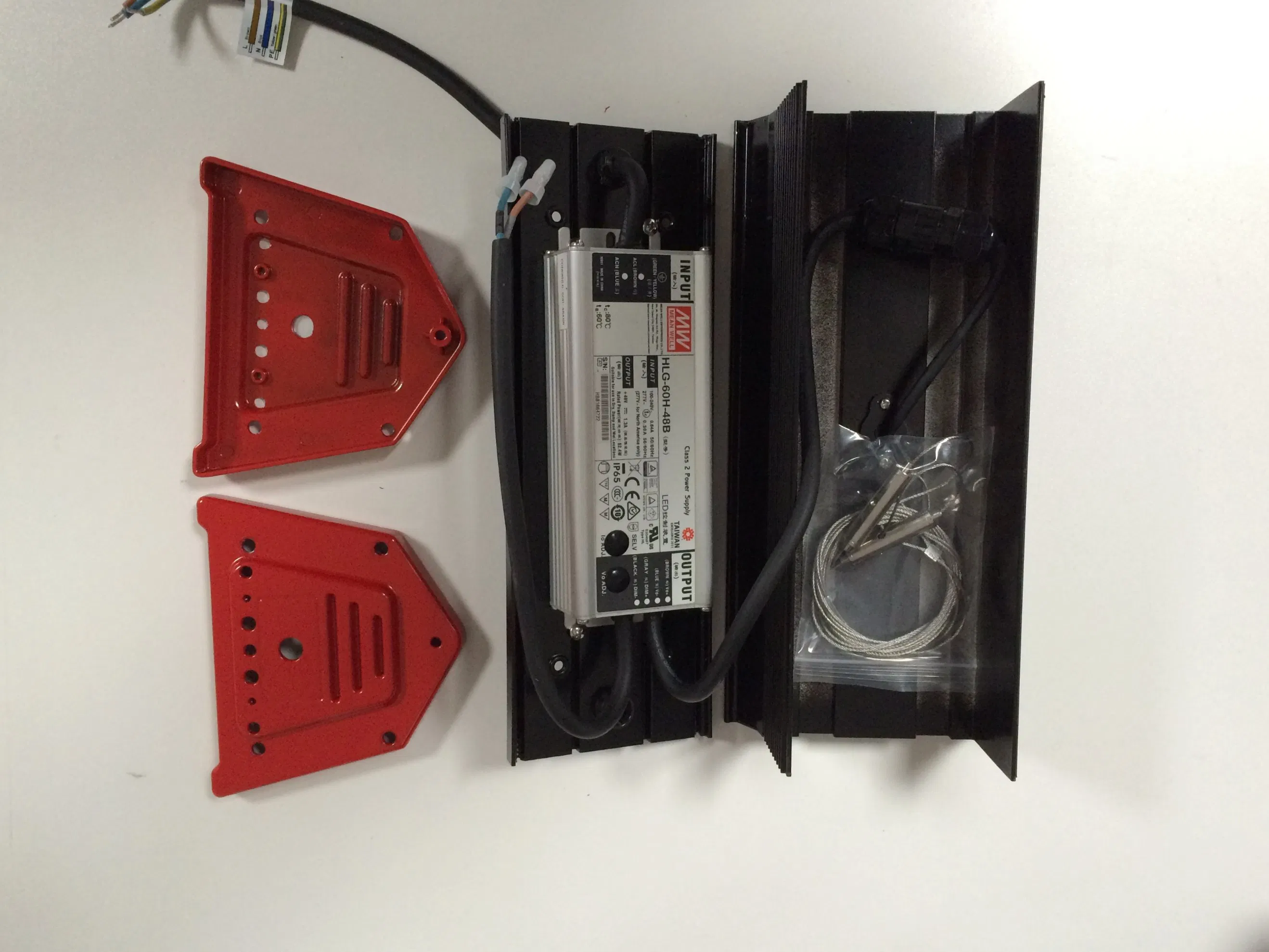

  • ✔Modular Design: Lighter and smaller build, saving freight and labor costs.
  • ✔Heat Dissipation: Wide aluminum plate design for fast and even cooling.
  • ✔Low Lumen Decay: Large diameter PCB ensures low heating and long life.
  • ✔Durable Hardware: All stainless screws for corrosion resistance.

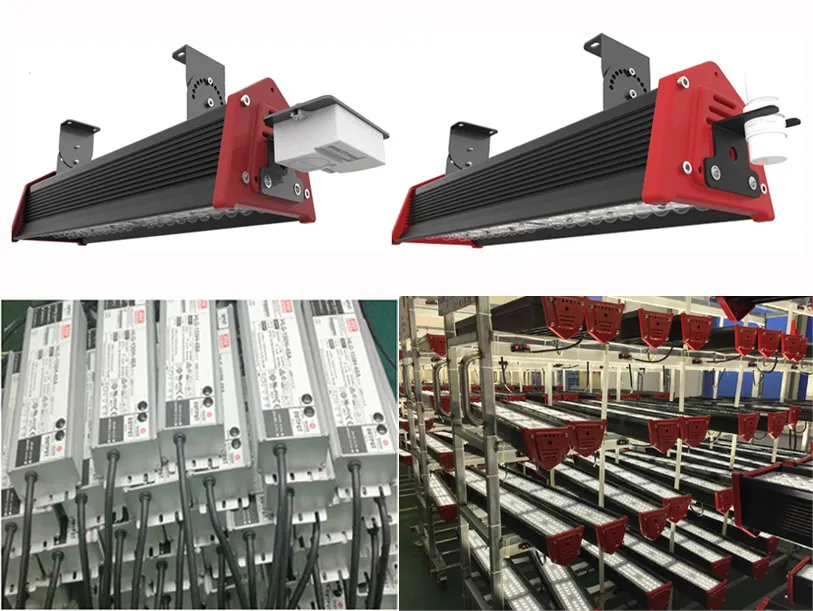

LED High Bay Design

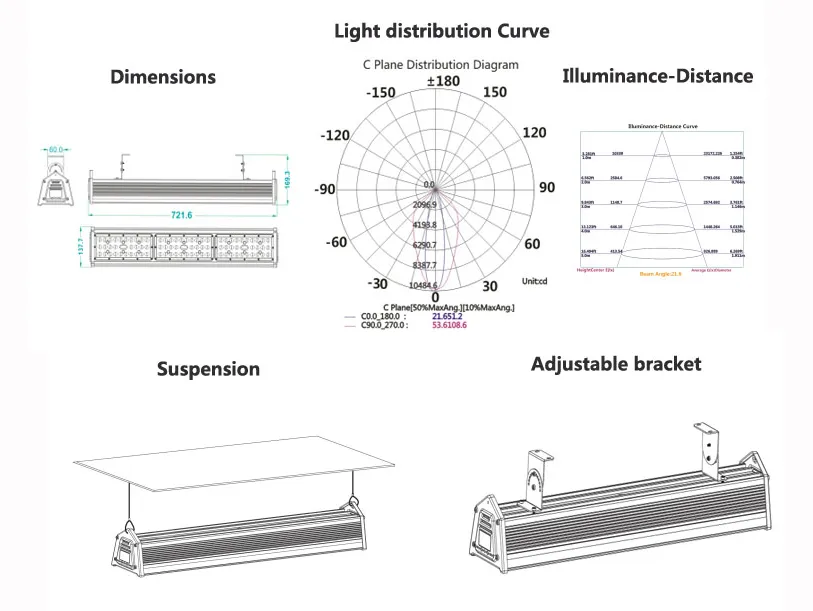

Installation Steps

Installation Guide

Hook Installation

1. Cut off power.
2. Choose suitable hook.
3. Fix hook (must bear 3x lamp weight).
4. Connect lamp securely.
5. Wire connect (L-Brown, N-Blue, E-Green).
6. Power on.

Bracket Installation

1. Cut off power.
2. Measure hole size and choose screws.
3. Fix screws at installation point.
4. Tighten bracket screws on both sides.
5. Wire connect (L-Brown, N-Blue, E-Green).
6. Power on.

Versatile Applications

Factories & Workshops Warehouses Gyms & Stadiums Supermarkets Exhibition Halls Airports & Stations Gas Stations

Quality Assurance

Stability: 100% aging test for 48 hours.
Lighting: 100% inspection before packing.
Durability: Drop tested packaging for protection.

Frequently Asked Questions

What is the expected lifespan of this LED Linear High Bay?
The fixture is designed for a long lifespan of ≥50,000 hours, supported by high-quality Nichia/Lumileds chips and Meanwell drivers.
Is this light suitable for outdoor or wet environments?
Yes, it has an IP65 rating, making it dust-tight and protected against water jets, suitable for industrial workshops and outdoor landmark lighting.
What are the available dimming options?
We offer optional Zigbee and DALI dimming functions, as well as motion and daylight sensors for enhanced energy savings.
What is the standard warranty period?
The product comes with a 5-year warranty, specifically covering the Meanwell driver and the LED component performance.
Can the beam angle be customized?
Yes, we offer multiple beam angle options including 30°*70°, 60°*90°, and a wide 120° to suit different ceiling heights and lighting requirements.
