Product Description

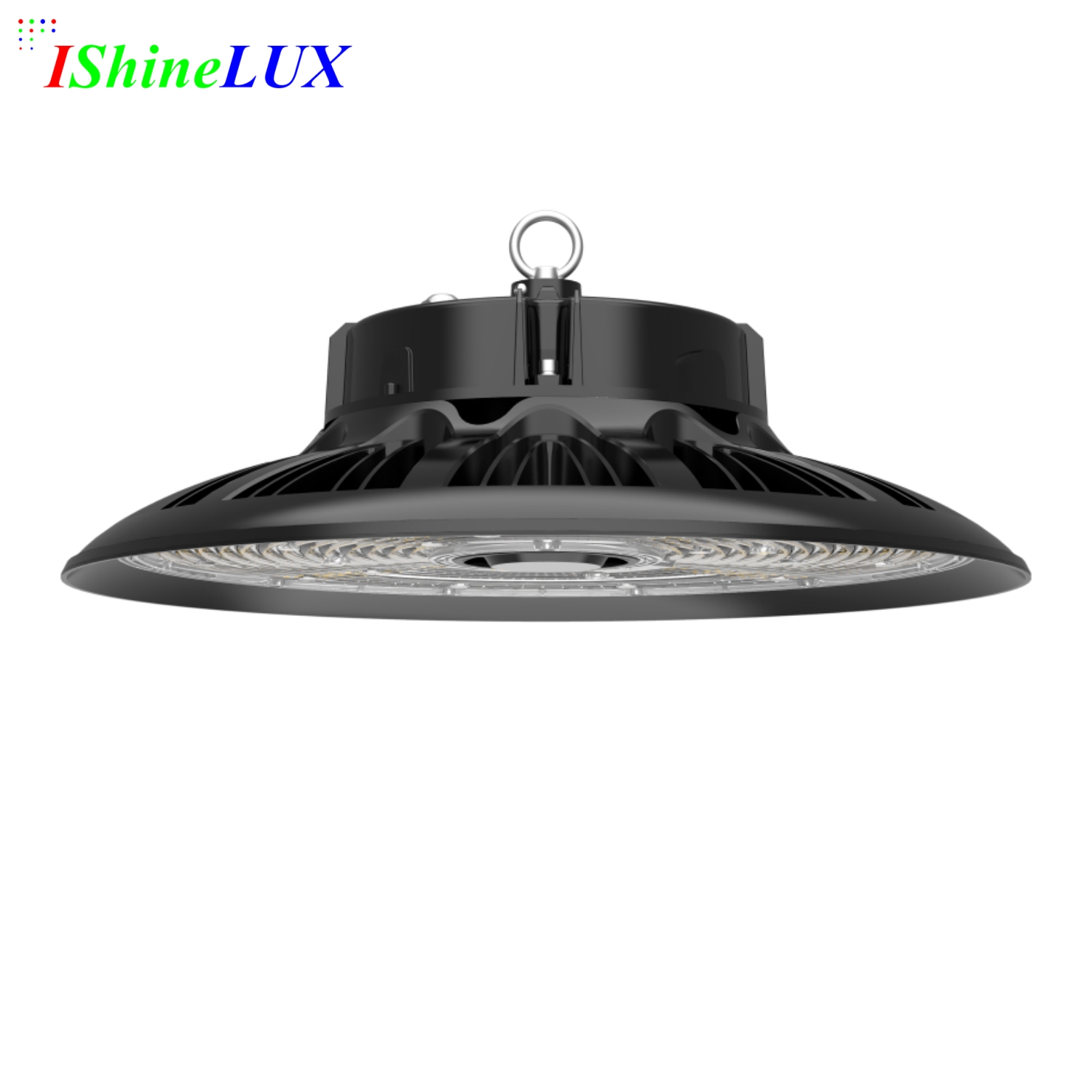

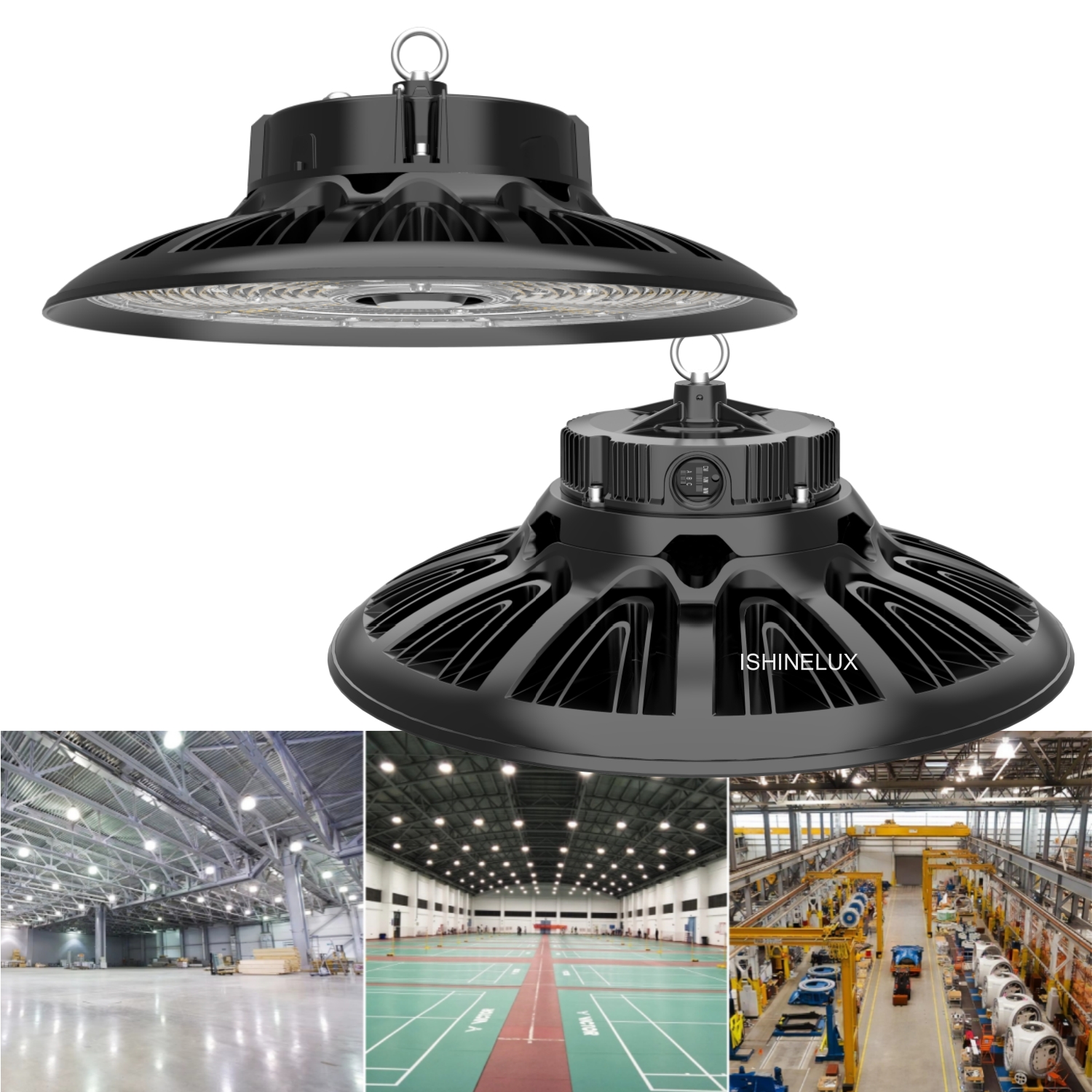

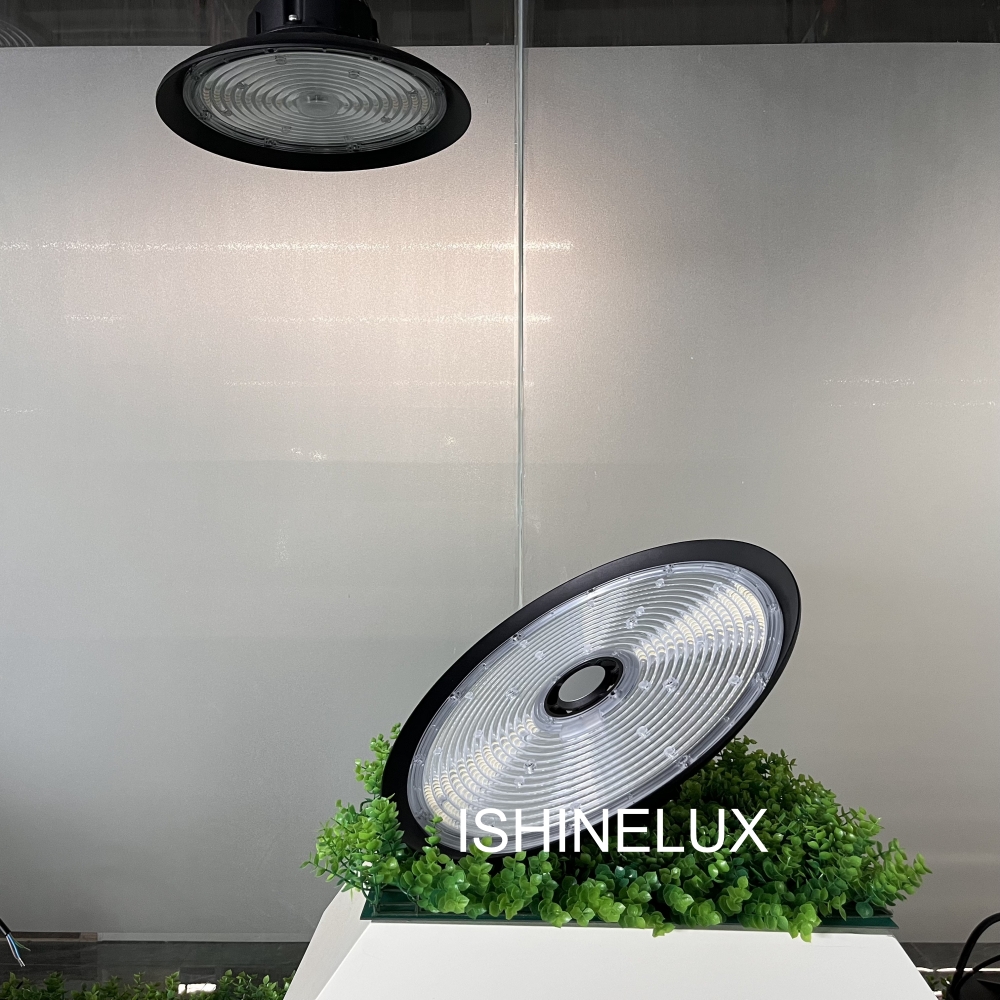

IP65 LED High Bay Light 60W 100W 150W 200W 240W 300W 400W 500W
Introducing the upgraded HB18 High Bay Light – built for performance and flexibility:
✔
Wide power range: 60W to 500W
✔
High efficacy options: 150lm/W, 170lm/W, 190lm/W
✔
1-10V dimmable with power-selectable settings
✔

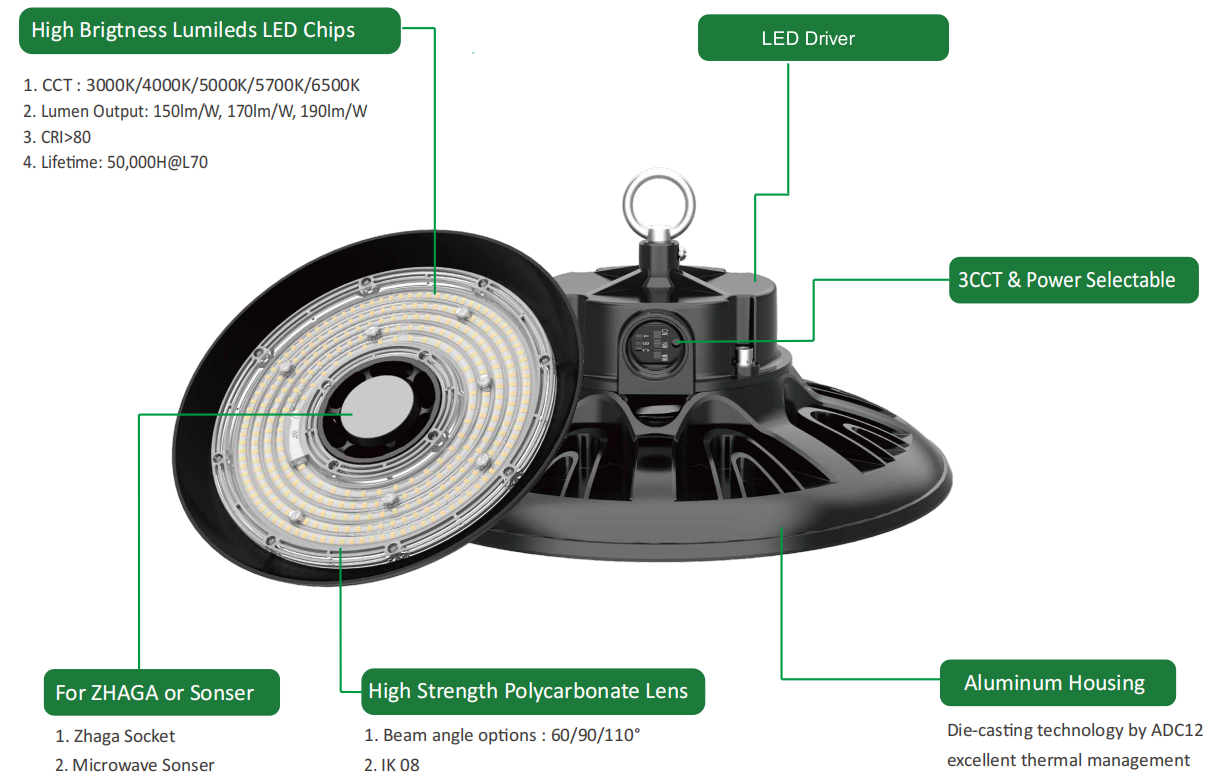

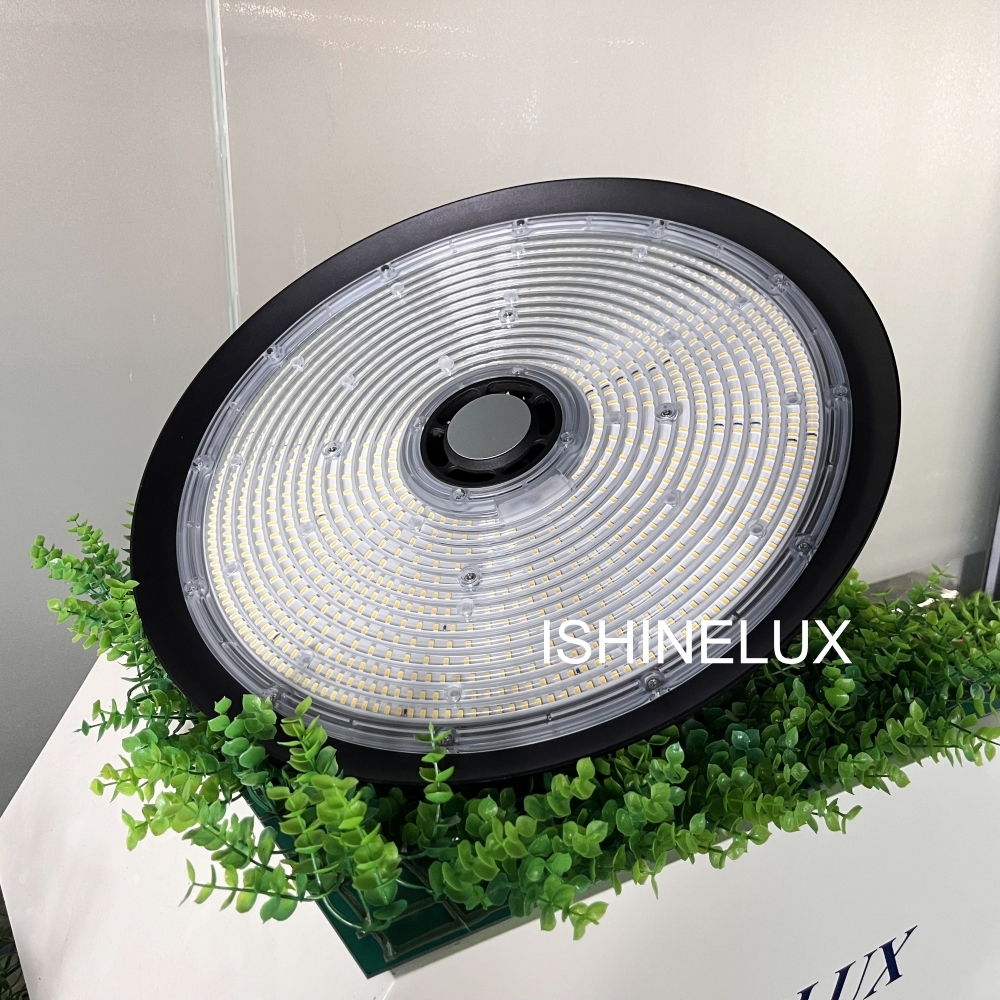

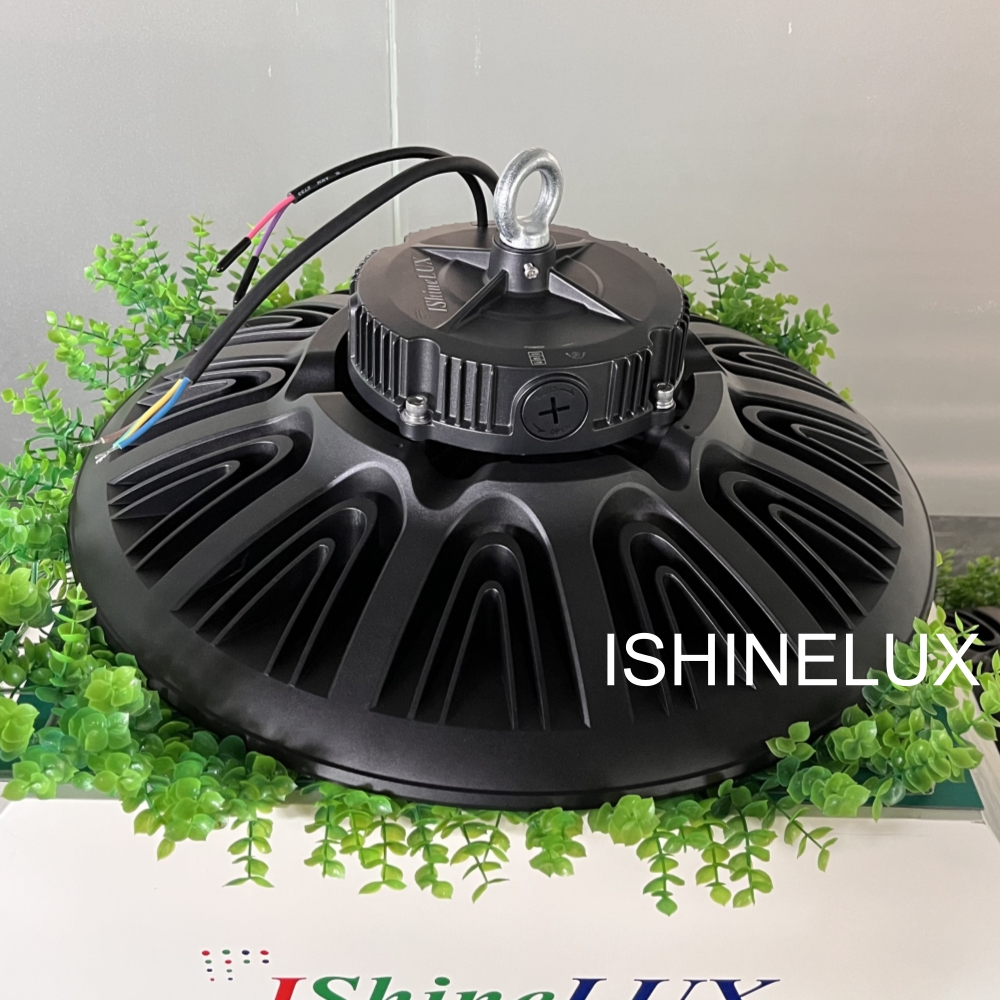

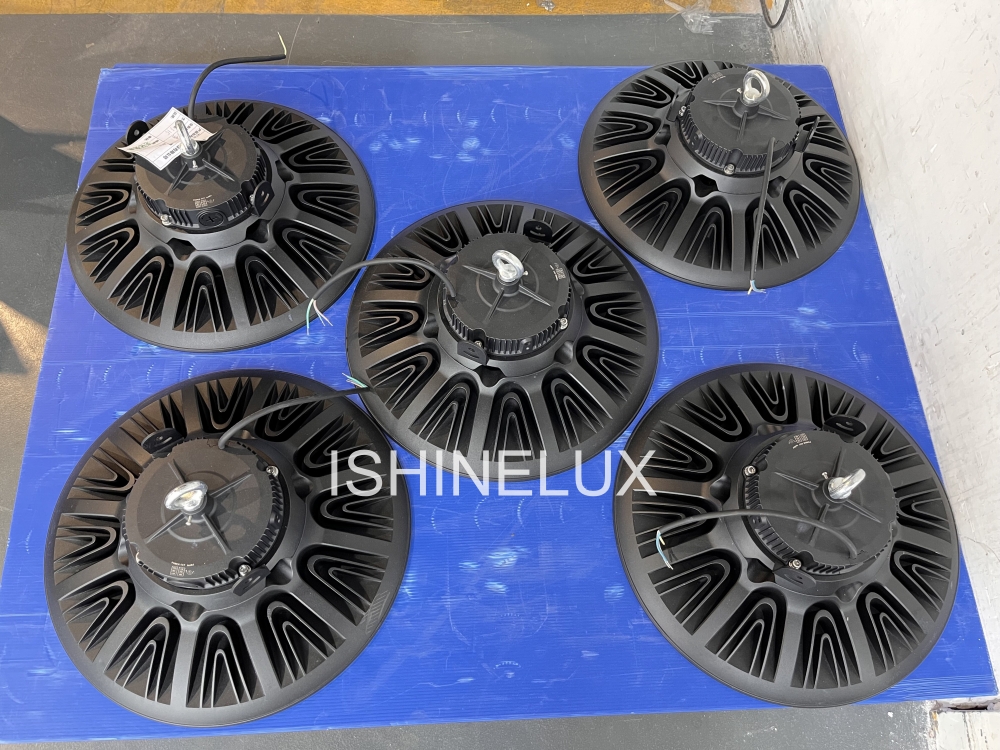

Equipped with a UV-resistant PC lens (94% transmittance), ADC12 die-cast aluminum housing for excellent heat dissipation, and premium LED chips & drivers.
✔

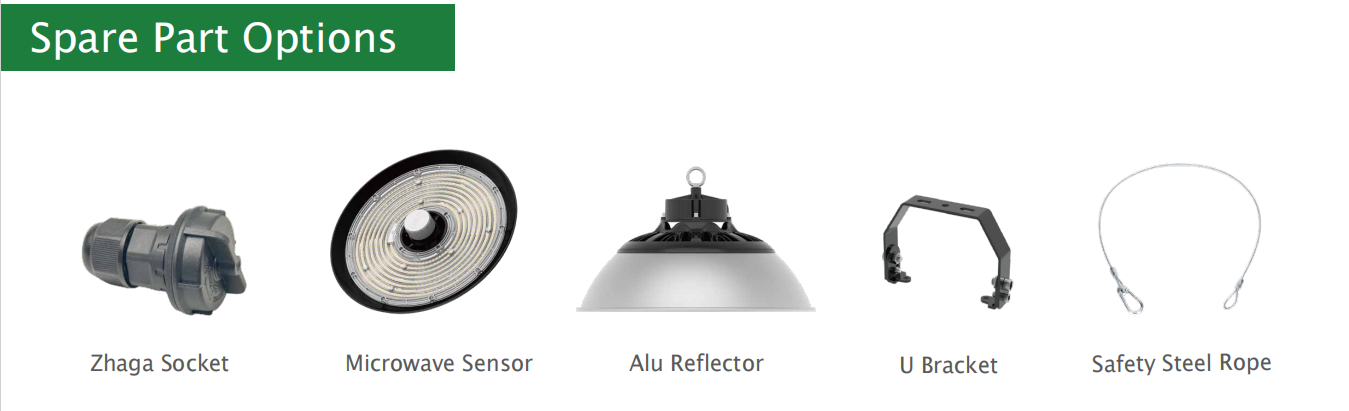

Optional features: 3CCT & 3power adjustable, plug-and-play motion sensor
✔
Backed by 5 to 7 years warranty – your trusted choice for industrial lighting excellence.
Specification

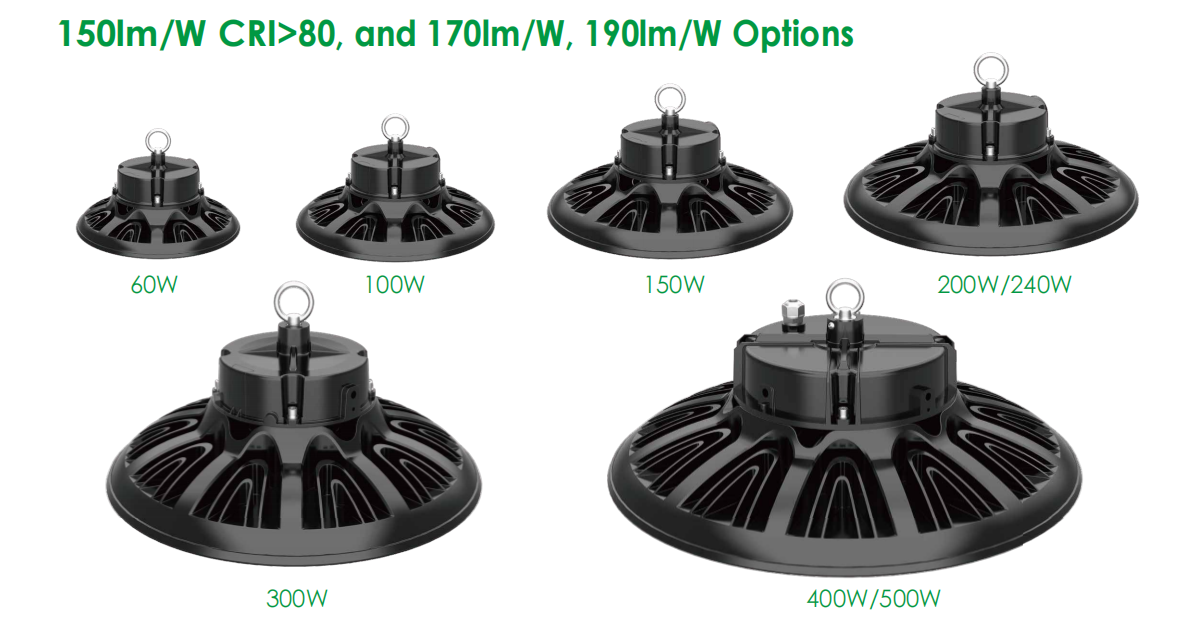

| Elegant HB18 UFO High Bay Light 60W-500W |
| 60W | ø233*145mm |
| 100W | ø260*145mm |
| 150W | ø287*147mm |
| 200W / 240W | ø305*149mm |
| 300W | ø342*168mm |
| 400W / 500W | ø447*178mm |
| Input Voltage | 100-277VAC, 50/60Hz |
| Light Efficiency | 150lm/W (170lm/W, 190lm/W available) |
| CCT | 3000K, 4000K, 5000K, 5700K, 6500K |
| CRI | 80Ra |
| Beam Angle | 60°, 90°, 120° (60W-300W), 40°/60°/90° (400W-500W) |
| Solution Options | 1-10V (Standard), Emergency, 3CCT & 3Power |
| IP / IK Rating | IP65 / IK08 |
| Warranty | 5 - 7 Years |

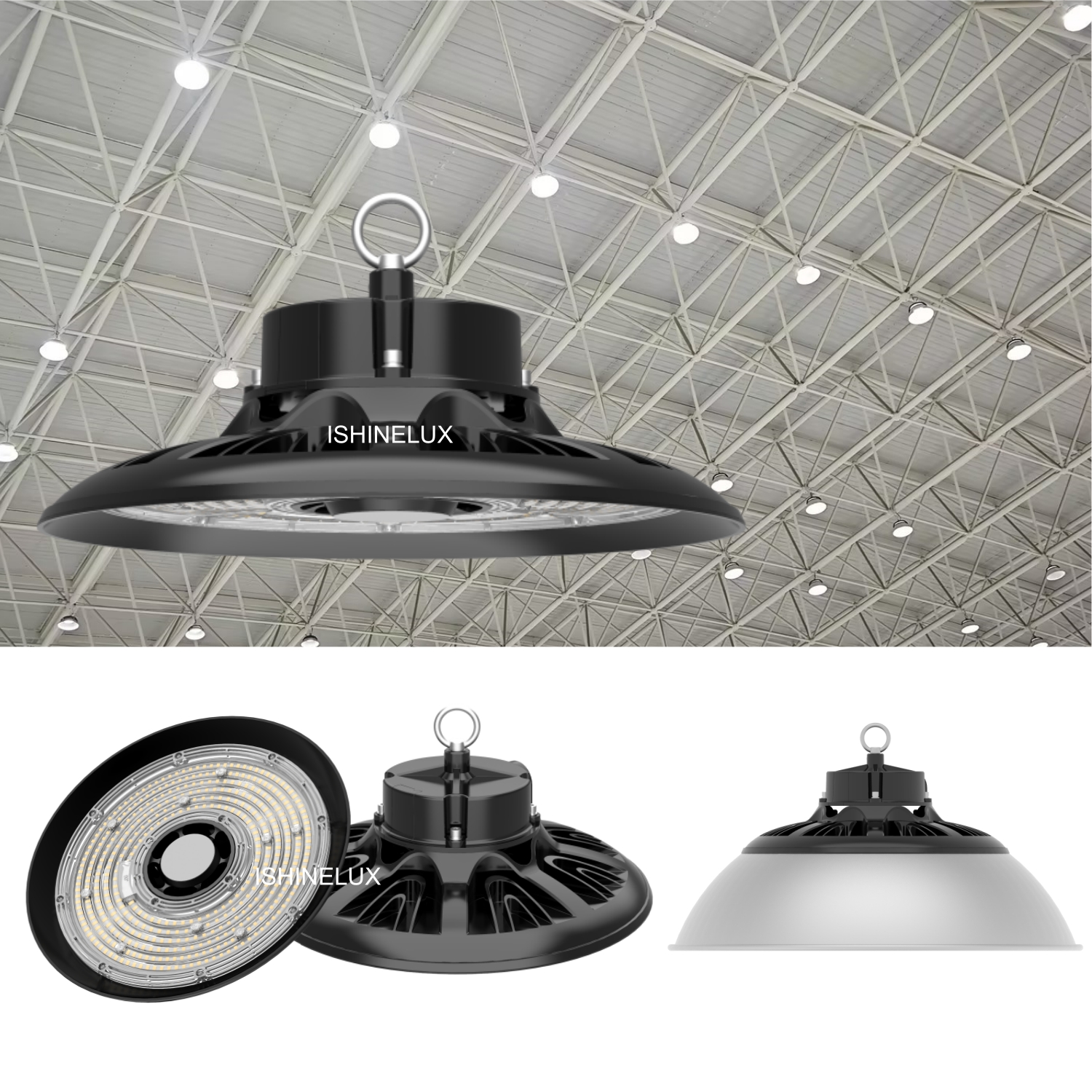

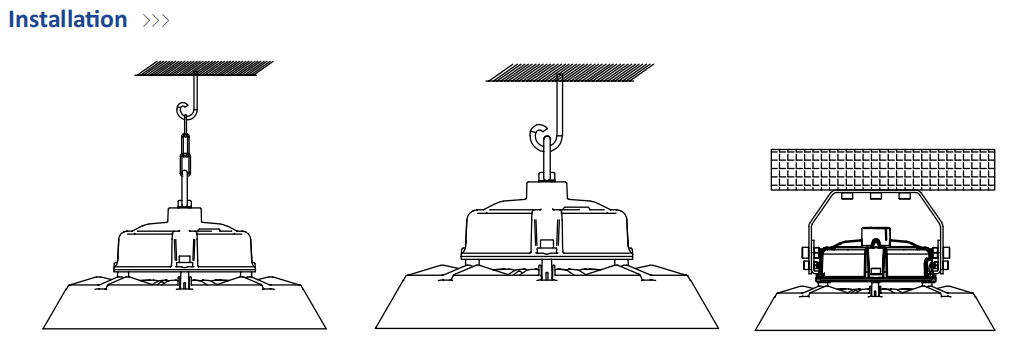

Installation

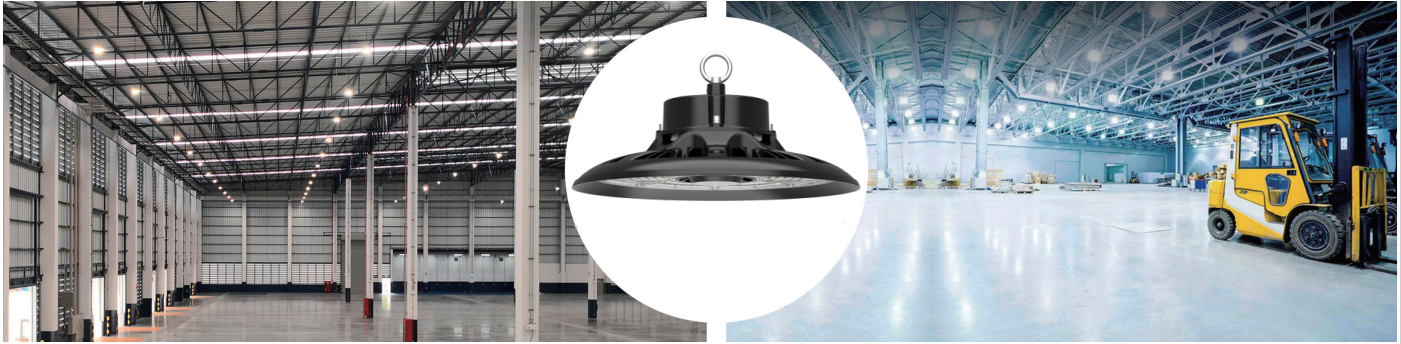

Application Scenario
It can be widely applied in Warehouse, Factory, Workshop, Plant, Supermarket, Logistics Center, Gas Station, Indoors Stadium Light, Highway Toll Station, etc.

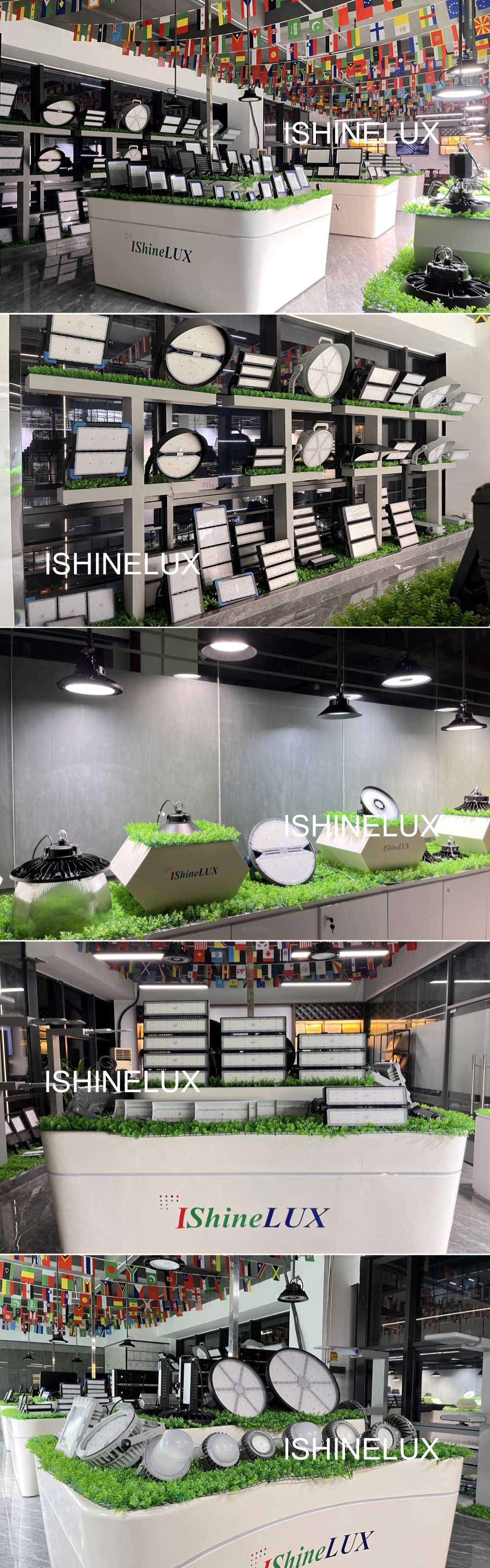

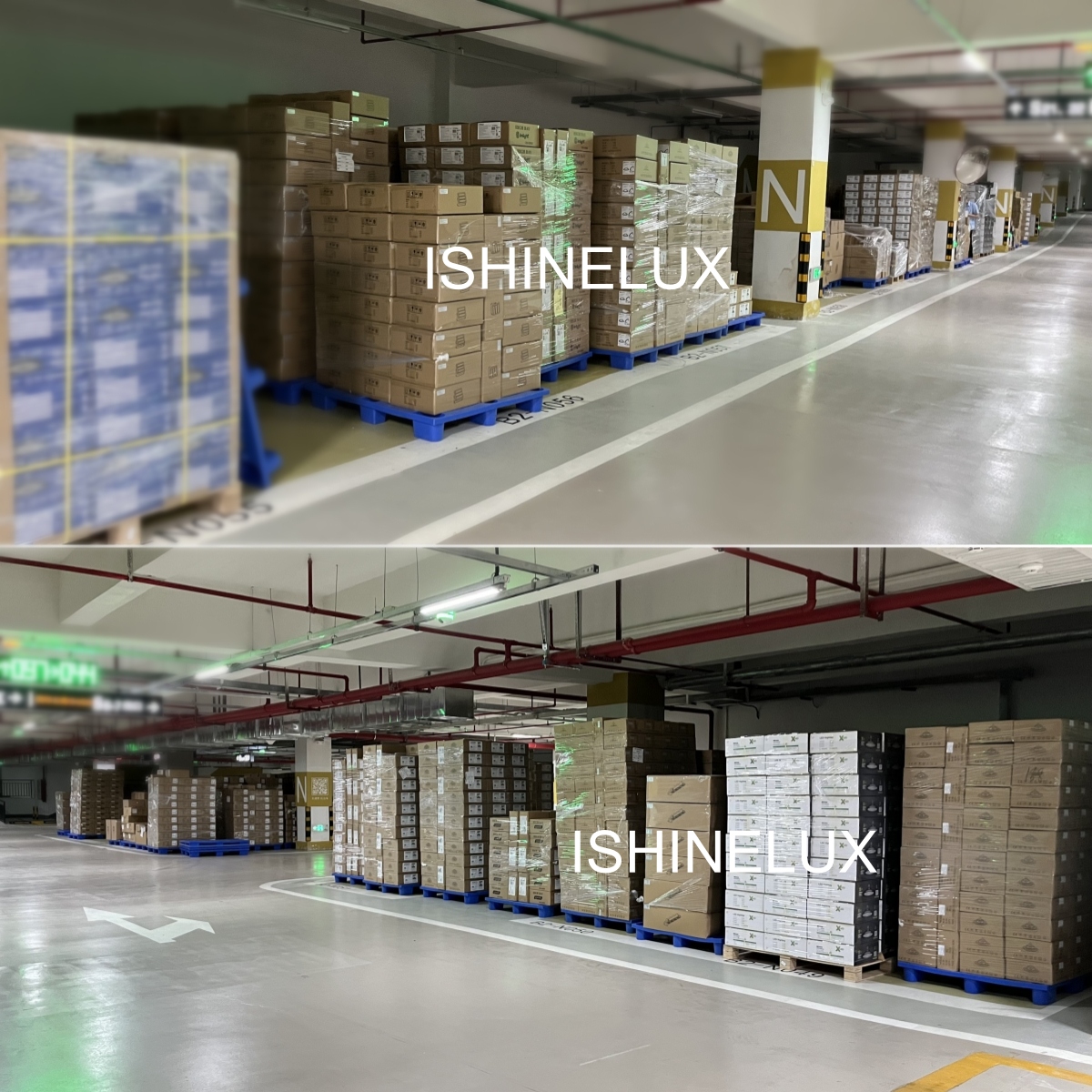

Product Range
LED lighting products cover UFO high bay, linear high bay, sports/ high mast light, flood light, tunnel light, street light, parking lot light, explosion-proof light and high temperature light. We have a strong R&D and sales team back up for your outdoor led lighting project. Many series led lights are available for your choice. We provide OEM/ODM service.
Frequently Asked Questions
What LED products are available for customization?
We offer a wide range of customized products including Sports & High Mast Lights (120W-2400W), Flood Lights (10W-500W), UFO High Bay Lights (100W-300W), Linear High Bay Lights (50W-200W), Street Lights (30W-240W), Tunnel Lights, and Explosion-proof or High Temperature Lights.
Where can these LED lights be applied?
Our products are ideal for Sports Fields (Baseball, Basketball, Football), Airports, Bridges, Warehouses, Logistics Centers, Shopping Malls, Factories, Parking Lots, and various Industrial Landscapes.

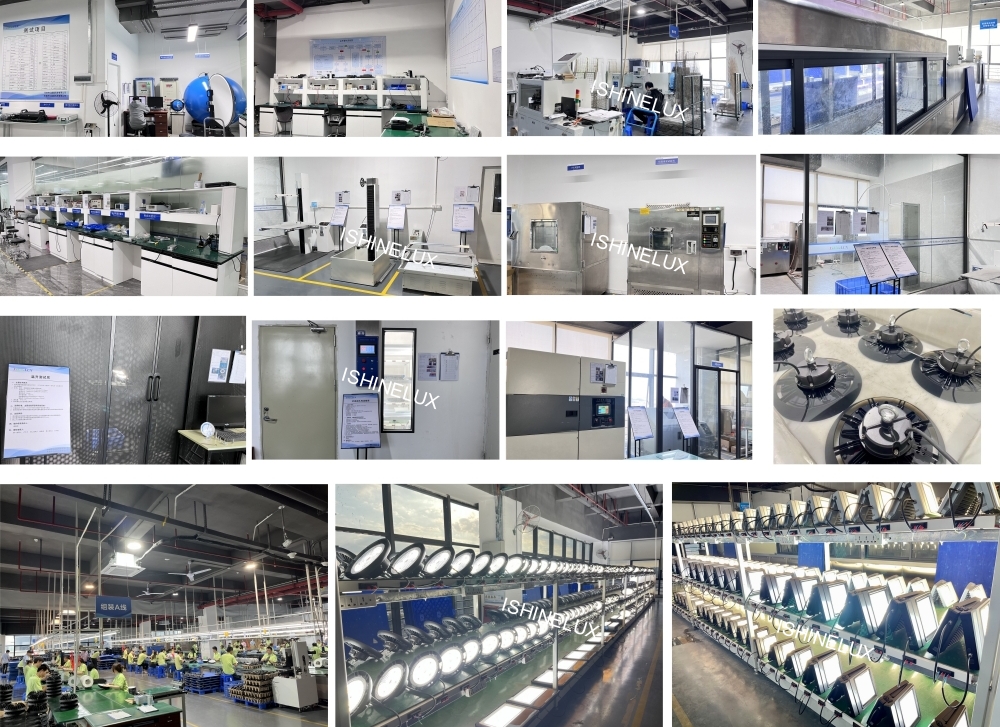

How is the quality control (QC) managed?

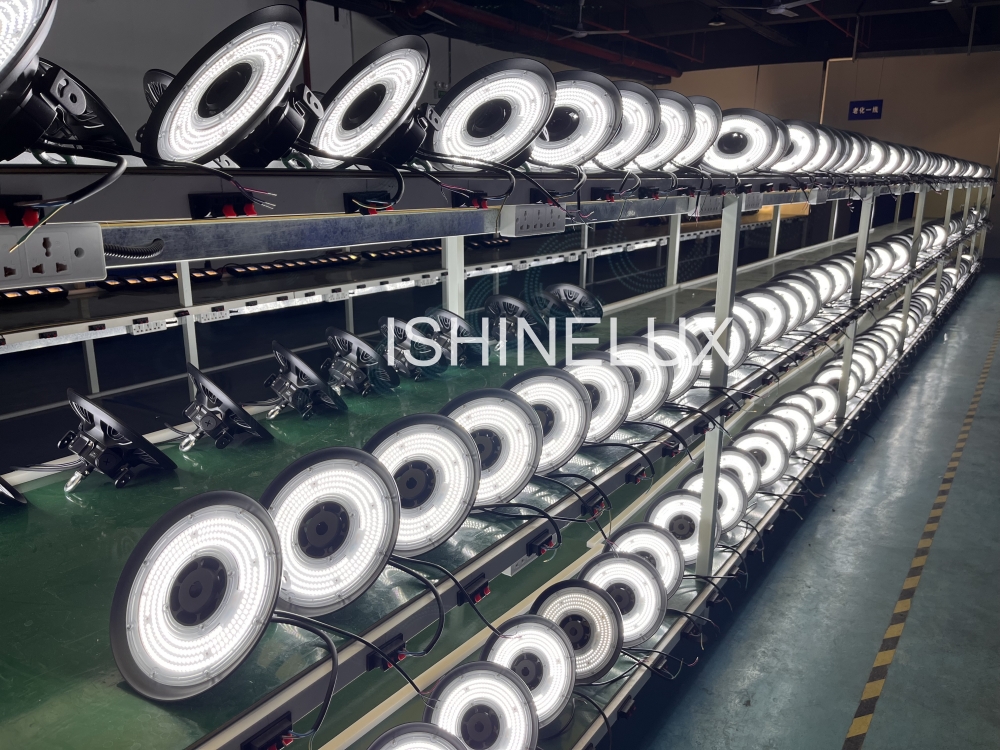

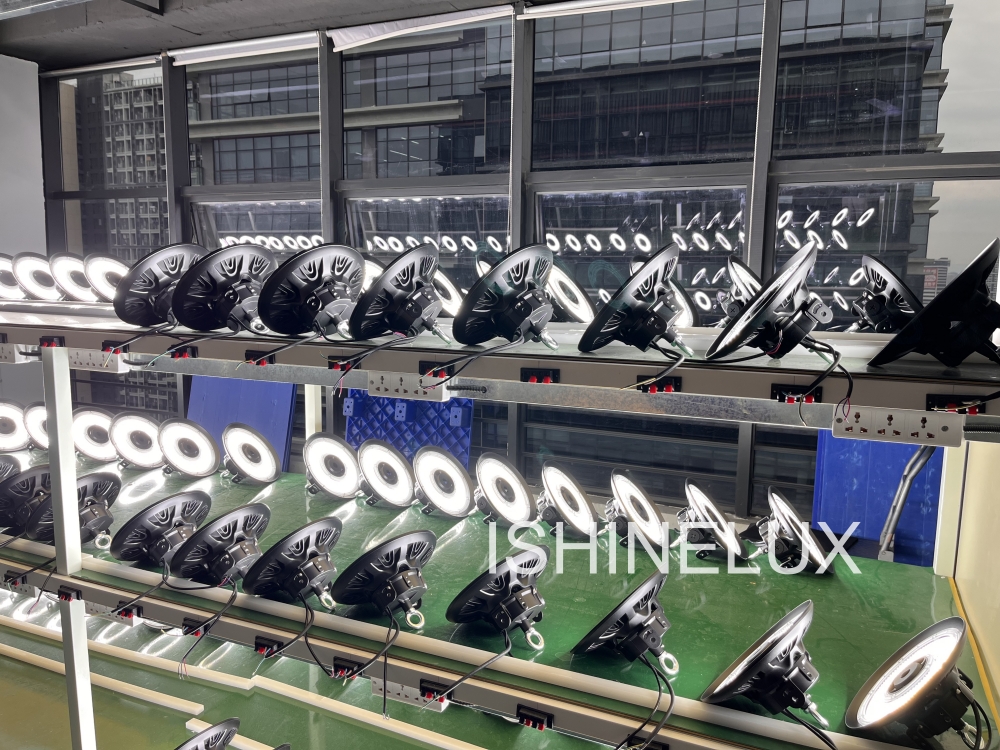

We utilize ISO9001 and ERP Management systems. Every product undergoes strict quality control processes and testing before shipment to ensure long-term reliability.
What is the standard lead time for production?
Sample orders typically require 3-7 days, while mass production usually takes between 10-20 working days depending on the order volume.
What are the shipping and labeling options?
We ship via Express (FedEx, DHL, UPS), Airline, or Sea. We also provide full OEM & ODM services, including the application of your custom labels on the fixtures.
What kind of warranty is provided?
We offer robust warranty options of 5 to 7 years depending on the product series and configuration selected.
